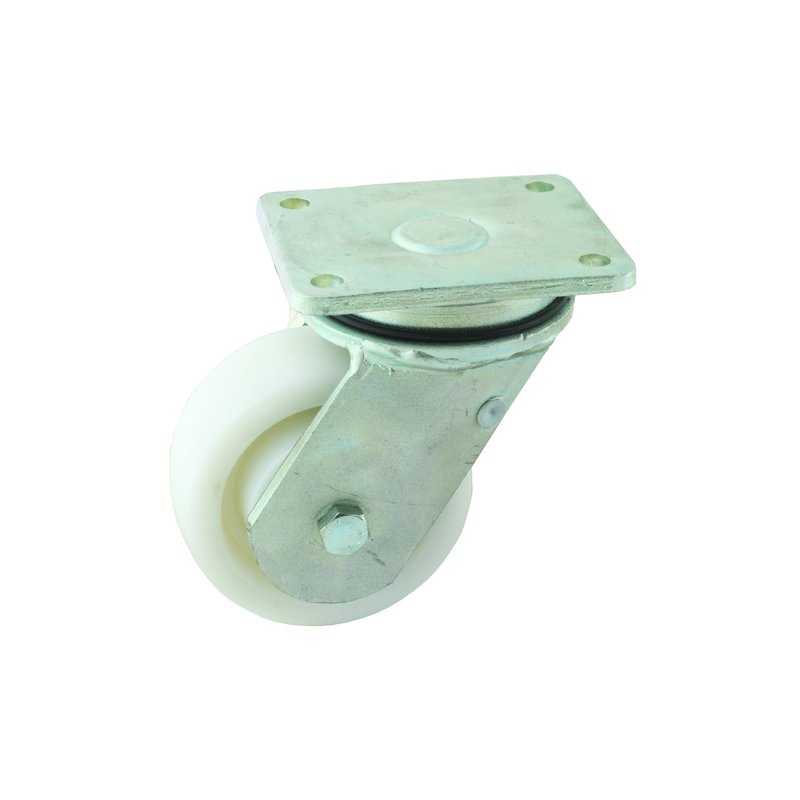

swivel castor 125mm serie 33 ᠆ 22 plate mounting ball bearing

Reference : 233.126.226.050

Brand Novio Application Heavy duty wheels Transportwheels Industry Industry and internal logistics Wheel type swivel castor Wheel diameter 125 mm Fork mounting plate mounting Bearing type ball bearing Brake type no brake Tread material plastic Overall height 171.5 mm Maximum load capacity 550 kg width 50 mm rim PA rim colour natural diameter axle bore fork 12,5 mm hub length mm 60 mm hub-to-fork length 65 mm offset 47 mm colour support/housing zinc plated material fork steel dimension fixing 11…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie et logistique interne
Application	Roulettes fortes charges Roue de transport
width	50 mm
Wheel type	roulette pivotante
Bearing type	roulement à billes
Maximum load capacity	550 kg
Wheel diameter	125 mm
offset	47 mm
Tread material	plastique
rim	PA
Overall height	171,5 mm
hub length mm	60 mm
Fork mounting	fixation platine
rim colour	naturel
material fork	métal
Brake type	sans frein
dimension fixing	110x135 / 80x105 / Ø13 mm
diameter axle bore fork	12,5 mm
hub-to-fork length	65 mm
colour support/housing	zingué

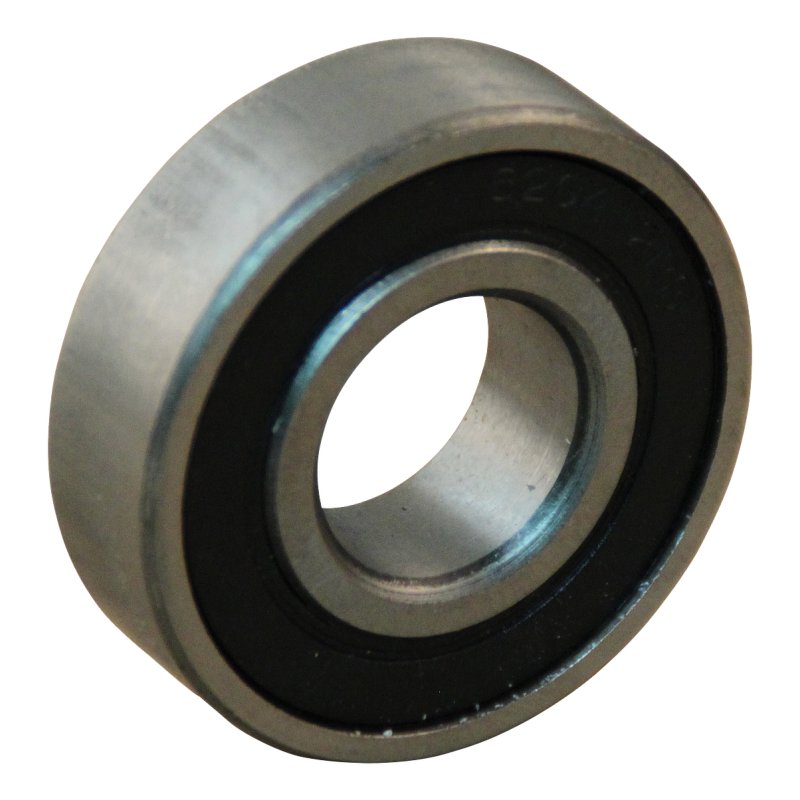

outside diameter	47 mm
bore diameter	20 mm
bearing width	14 mm
