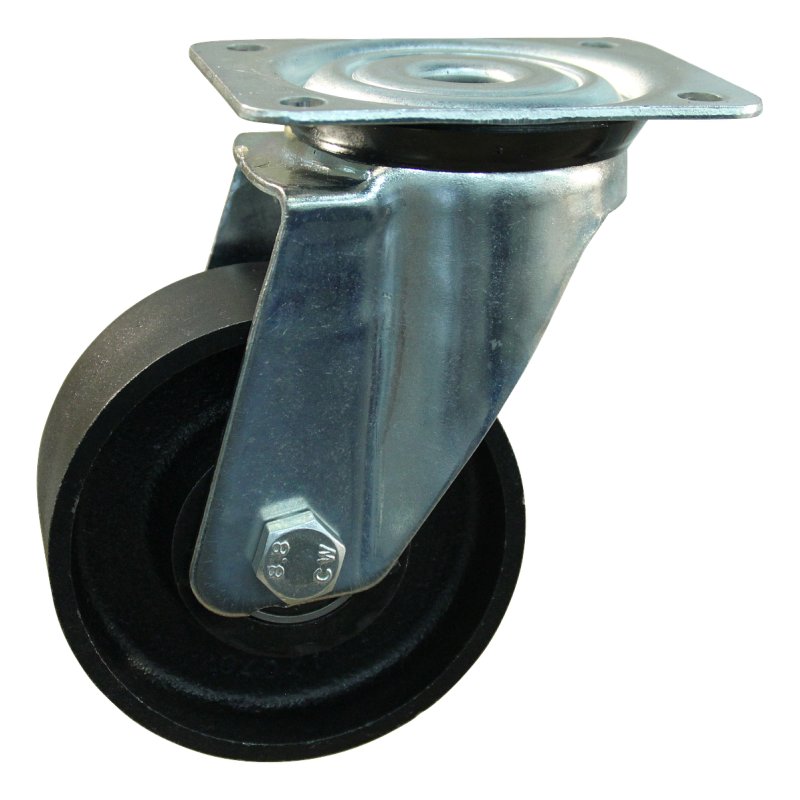

swivel castor 130mm serie 45 ᠆ 15 plate mounting plain bore
Reference : 245.131.156.050
Brand Novio Application Transportwheels Wheel type swivel castor Wheel diameter 130 mm Fork mounting plate mounting Bearing type plain bearing Brake type no brake Tread material cast iron / steel Overall height 157.5 mm Maximum load capacity 250 kg width 50 mm rim cast iron diameter axle bore 20 mm diameter axle bore fork 10,2 mm hub length mm 60 mm hub-to-fork length 52 +2,0 mm offset 40 +0,5/-0,5 mm colour support/housing zinc plated material fork steel dimension fixing 100x85 / 77/80x55/60 /…
124,99 € incl. VAT
On order Supply lead time : environ 8 semaines
📩 Notify me when this product is available again
A single email, when it is back in stock. No spam.
Specifications
| Application | Roue de transport |
| width | 50 mm |
| Wheel type | roulette pivotante |
| Bearing type | palier lisse |
| Maximum load capacity | 250 kg |
| Wheel diameter | 130 mm |
| offset | 40 +0,5/-0,5 mm |
| Tread material | fonte / acier |
| rim | fonte |
| Overall height | 157,5 mm |
| hub length mm | 60 mm |
| Fork mounting | fixation platine |
| material fork | métal |
| Brake type | sans frein |
| dimension fixing | 100x85 / 77/80x55/60 / Ø9 mm |
| diameter axle bore fork | 10,2 mm |
| hub-to-fork length | 52 +2,0 mm |
| diameter axle bore | 20 mm |
| colour support/housing | zingué |
Description
- Brand
- Novio
- Application
- Transportwheels
- Wheel type
- swivel castor
- Wheel diameter
- 130 mm
- Fork mounting
- plate mounting
- Bearing type
- plain bearing
- Brake type
- no brake
- Tread material
- cast iron / steel
- Overall height
- 157.5 mm
- Maximum load capacity
- 250 kg
- width
- 50 mm
- rim
- cast iron
- diameter axle bore
- 20 mm
- diameter axle bore fork
- 10,2 mm
- hub length mm
- 60 mm
- hub-to-fork length
- 52 +2,0 mm
- offset
- 40 +0,5/-0,5 mm
- colour support/housing
- zinc plated
- material fork
- steel
- dimension fixing
- 100x85 / 77/80x55/60 / Ø9 mm
