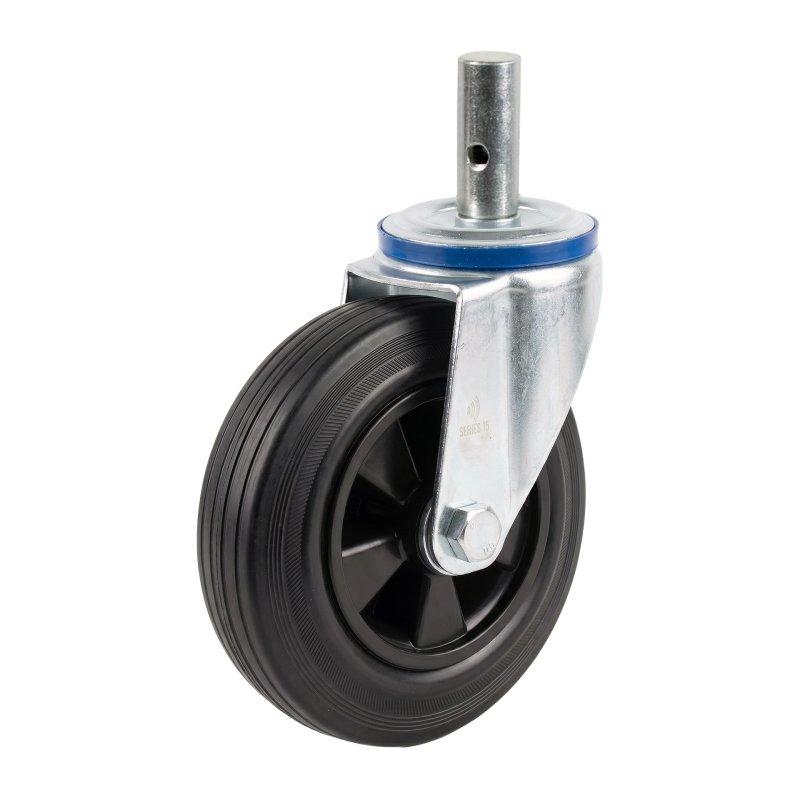

swivel castor 140mm series 01 ᠆ 15 bolt hole roller bearing

Reference : 201.141.155.020

Brand Novio Application Transportwheels Wheel type swivel castor Wheel diameter 140 mm Fork mounting bolt hole Bearing type roller bearing Brake type no brake Tread material rubber / TPE Overall height 185 mm Maximum load capacity 115 kg width 37 mm rim PP rim colour jet black RAL 9005 diameter axle bore 15 mm diameter axle bore fork 12,2 mm hub length mm 48 mm hub-to-fork length 62 +2,0 mm offset 58 +/-1,5 mm colour support/housing zinc plated material fork steel dimension fixing 12,5 mm tire …

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Application	Roue de transport
width	37 mm
Wheel type	roulette pivotante
Bearing type	roulement à rouleaux
Maximum load capacity	115 kg
Wheel diameter	140 mm
offset	58 +/-1,5 mm
Tread material	caoutchouc / TPE
rim	PP
Overall height	185 mm
hub length mm	48 mm
Fork mounting	trou de boulon
rim colour	noir foncé RAL 9005
material fork	métal
Brake type	sans frein
dimension fixing	12,5 mm
diameter axle bore fork	12,2 mm
hub-to-fork length	62 +2,0 mm
tire	caoutchouc standard
tire colour	noir
tolerance hardness	+/-3
hardness Shore A	80 Shore A
diameter axle bore	15 mm
colour support/housing	zingué
