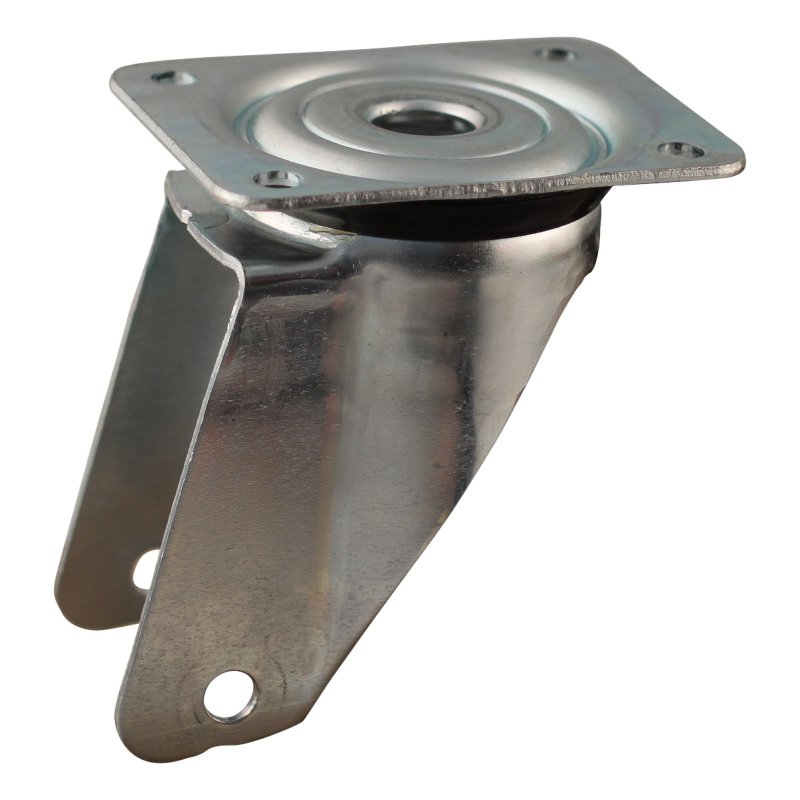

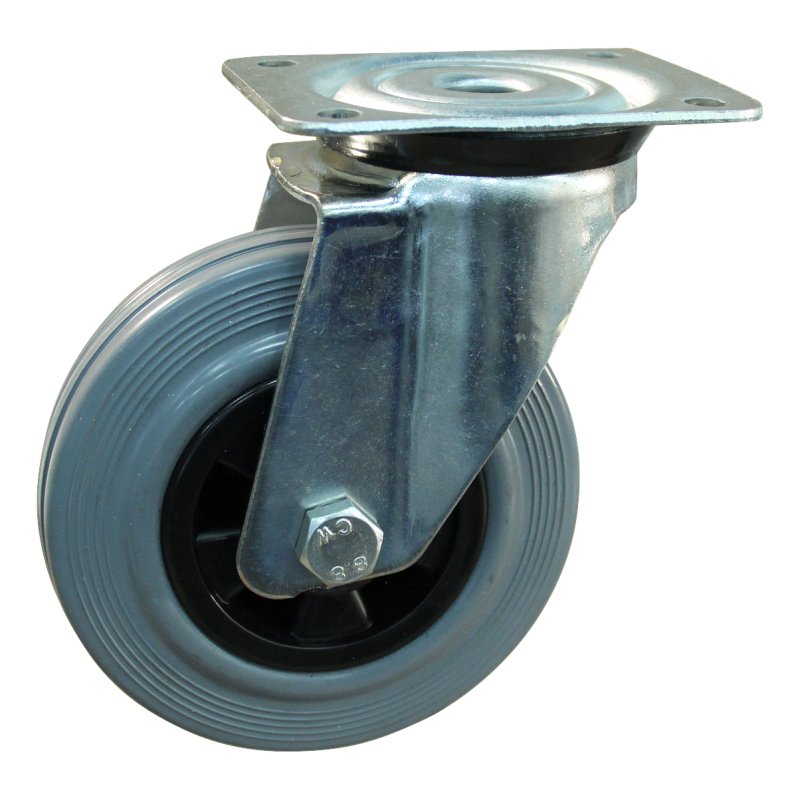

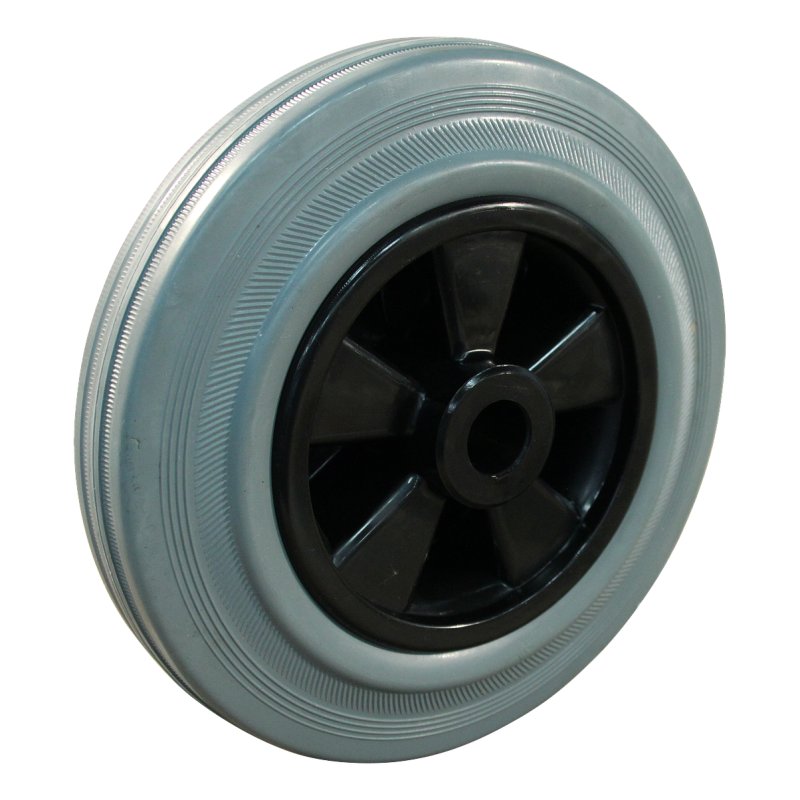

swivel castor 140mm series 11 ᠆ 91 plate mounting plain bore

Reference : 211.141.916.000

Brand Novio Application Transportwheels Industry Industry and internal logistics Wheel type swivel castor Wheel diameter 140 mm Fork mounting plate mounting Bearing type plain bearing Brake type no brake Tread material rubber / TPE Overall height 178 mm Maximum load capacity 115 kg width 40 mm rim PP rim colour jet black RAL 9005 diameter axle bore 15 mm diameter axle bore fork 10 mm hub length mm 48 mm hub-to-fork length 52 mm offset 45 mm colour support/housing zinc plated material fork steel…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie et logistique interne
Application	Roue de transport
width	40 mm
Wheel type	roulette pivotante
Bearing type	palier lisse
Maximum load capacity	115 kg
Wheel diameter	140 mm
offset	45 mm
Tread material	caoutchouc / TPE
rim	PP
Overall height	178 mm
hub length mm	48 mm
Fork mounting	fixation platine
rim colour	noir foncé RAL 9005
material fork	métal
Brake type	sans frein
dimension fixing	105x80 / 80x60 / Ø9 mm
diameter axle bore fork	10 mm
hub-to-fork length	52 mm
tire	caoutchouc standard
tire colour	gris argent RAL 7001
tolerance hardness	+/-3°
hardness Shore A	80 Shore A
diameter axle bore	15 mm
colour support/housing	zingué
