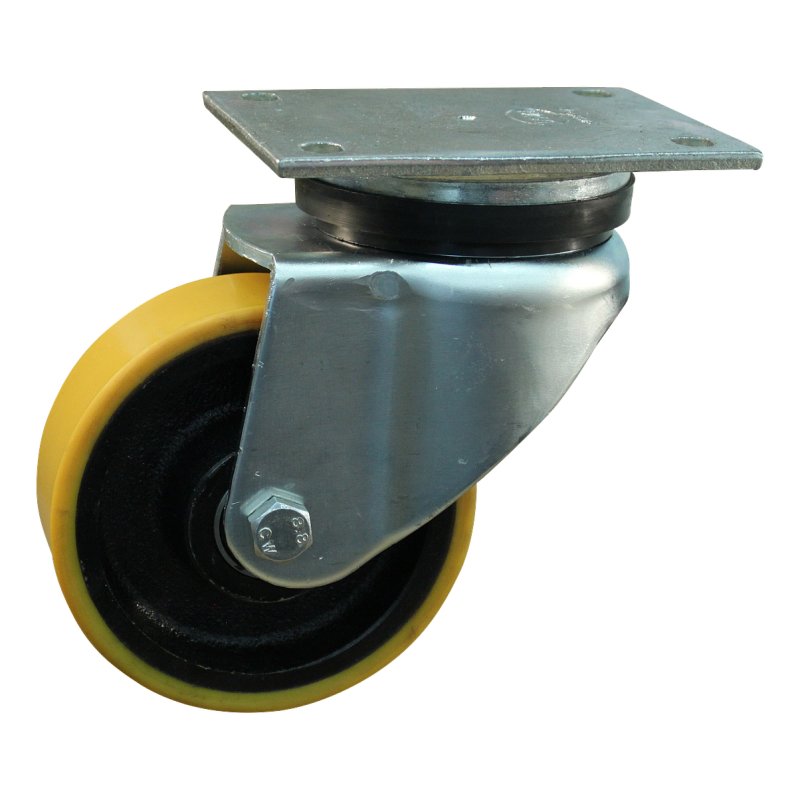

swivel castor 150mm series 28 ᠆ 14 plate mounting ball bearing

Reference : 228.156.146.050

Brand Novio Application Heavy duty wheels Transportwheels Industry Agriculture and horticulture Industry and internal logistics dimension M12x1,75 mm Wheel type swivel castor Wheel diameter 150 mm Fork mounting plate mounting Bearing type ball bearing Tread material CPU Overall height 195 mm Maximum load capacity 700 kg width 50 mm rim cast iron rim colour jet black RAL 9005 diameter axle bore 20 mm diameter axle bore fork 12,5 mm hub length mm 60 mm hub-to-fork length 63 +2/-0 mm offset 55 mm …

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Agriculture et horticulture Industrie et logistique interne
Application	Roulettes fortes charges Roue de transport
width	50 mm
Wheel type	roulette pivotante
Bearing type	roulement à billes
Maximum load capacity	700 kg
Wheel diameter	150 mm
offset	55 mm
Tread material	CPU
rim	fonte
Overall height	195 mm
hub length mm	60 mm
Fork mounting	fixation platine
rim colour	noir foncé RAL 9005
material fork	métal
diameter axle bore fork	12,5 mm
hub-to-fork length	63 +2/-0 mm
tire	CPU
tire colour	jaune miel RAL 1005
tolerance hardness	+/-2
hardness Shore A	94 Shore A
diameter axle bore	20 mm
colour support/housing	zingué
dimension	M12x1,75 mm
fixing	135x105x6,0 / 105x75/80 / Ø10
