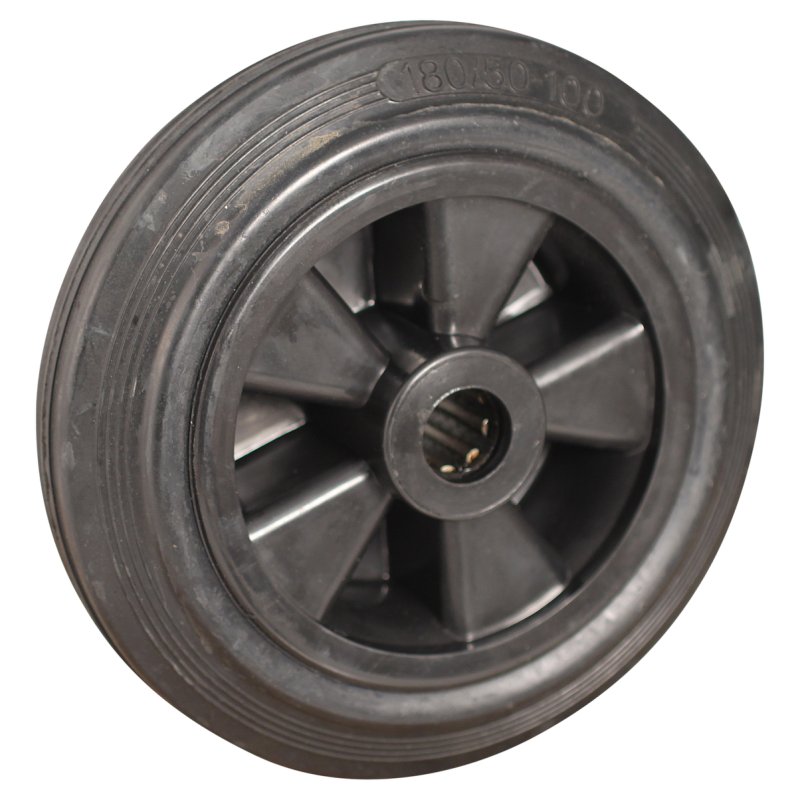

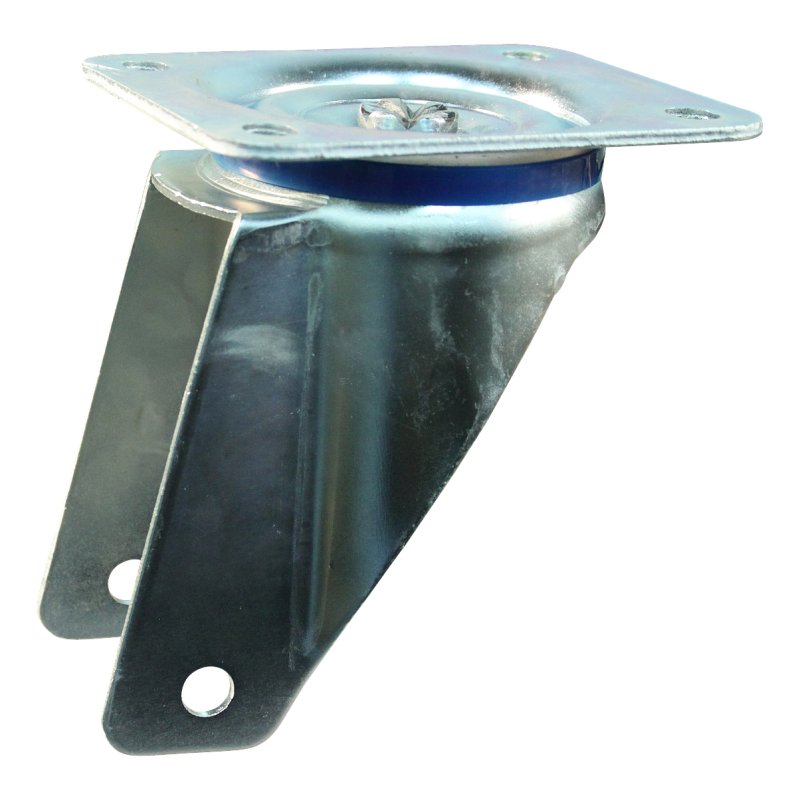

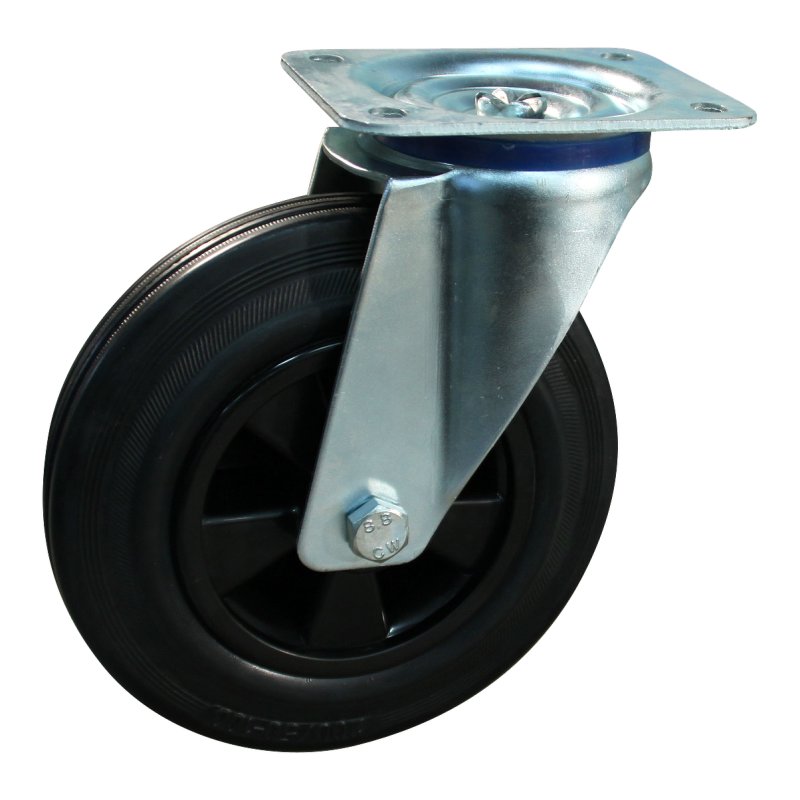

swivel castor 180mm series 01 ᠆ 15 plate mounting roller bearing

Reference : 201.182.156.000

Brand Novio Application Transportwheels Industry Industry and internal logistics Wheel type swivel castor Wheel diameter 180 mm Fork mounting plate mounting Bearing type roller bearing Brake type no brake Tread material rubber / TPE Overall height 225 mm Maximum load capacity 170 kg width 48 mm rim PP rim colour jet black RAL 9005 diameter axle bore 20 mm diameter axle bore fork 12,2 mm hub length mm 60 mm hub-to-fork length 62 +1,5/-0 mm offset 55 +/-0,5 mm colour support/housing zinc plated m…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie et logistique interne
Application	Roue de transport
width	48 mm
Wheel type	roulette pivotante
Bearing type	roulement à rouleaux
Maximum load capacity	170 kg
Wheel diameter	180 mm
offset	55 +/-0,5 mm
Tread material	caoutchouc / TPE
rim	PP
Overall height	225 mm
hub length mm	60 mm
Fork mounting	fixation platine
rim colour	noir foncé RAL 9005
material fork	métal
Brake type	sans frein
dimension fixing	135x110 / 105x75/80 / Ø11 mm
diameter axle bore fork	12,2 mm
hub-to-fork length	62 +1,5/-0 mm
tire	caoutchouc standard
tire colour	noir
tolerance hardness	+/-3
hardness Shore A	80 Shore A
diameter axle bore	20 mm
colour support/housing	zingué
