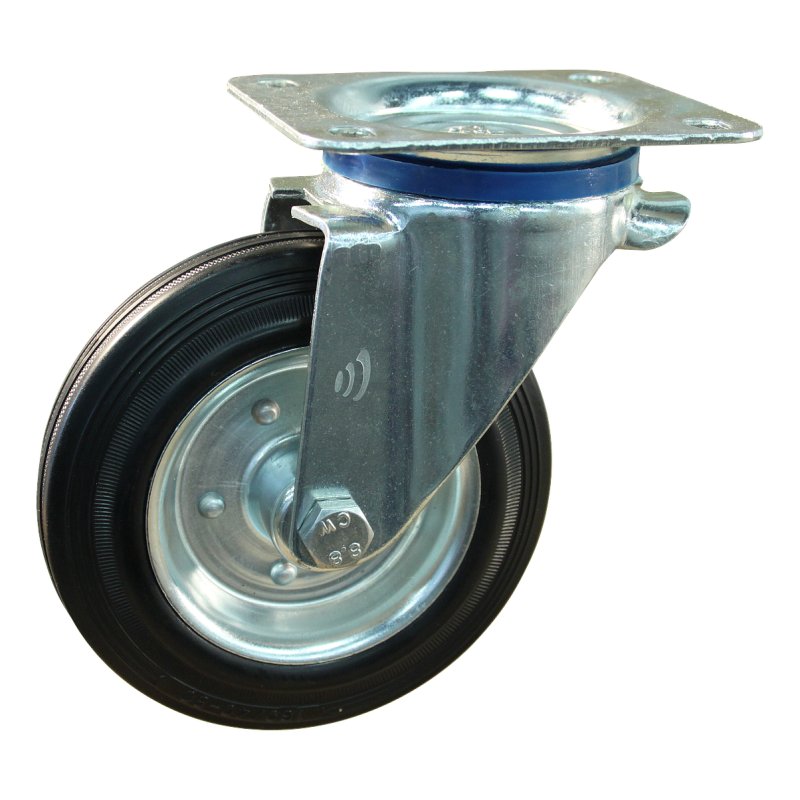

swivel castor 200mm series 02 - 12 plaatbevestiging met uitsparing richtingvastzetter roller bearing

Reference : 202.202.127.000

Brand Novio Application Transportwheels Waste containers Industry Industry and internal logistics Wheel type swivel castor Wheel diameter 200 mm Fork mounting plate mounting with recess for directional lock Bearing type roller bearing Brake type no brake Tread material rubber / TPE Overall height 240 mm Maximum load capacity 205 kg width 50 mm rim steel rim colour zinc plated offset 55 +/-1,0 mm colour support/housing zinc plated material fork steel dimension fixing 135x110 / 104x75/80 / Ø11 mm…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie et logistique interne
Application	Roue de transport Conteneurs à déchets
width	50 mm
Wheel type	roulette pivotante
Bearing type	roulement à rouleaux
Maximum load capacity	205 kg
Wheel diameter	200 mm
offset	55 +/-1,0 mm
Tread material	caoutchouc / TPE
rim	métal
Overall height	240 mm
Fork mounting	fixation sur platine avec encoche pour blocage directionnel
rim colour	zingué
material fork	métal
Brake type	sans frein
dimension fixing	135x110 / 104x75/80 / Ø11 mm
tire	caoutchouc standard
tire colour	noir
tolerance hardness	+/-3
hardness Shore A	80 Shore A
colour support/housing	zingué
load capacity	205 kg
speed km/h	4
logo	logo Protempo
lubrication	-30°C +120°C
Supplier series	8811
sealing ring	plastique, bleue
thickness fork mm	3,0
thickness plate mm	3,5
