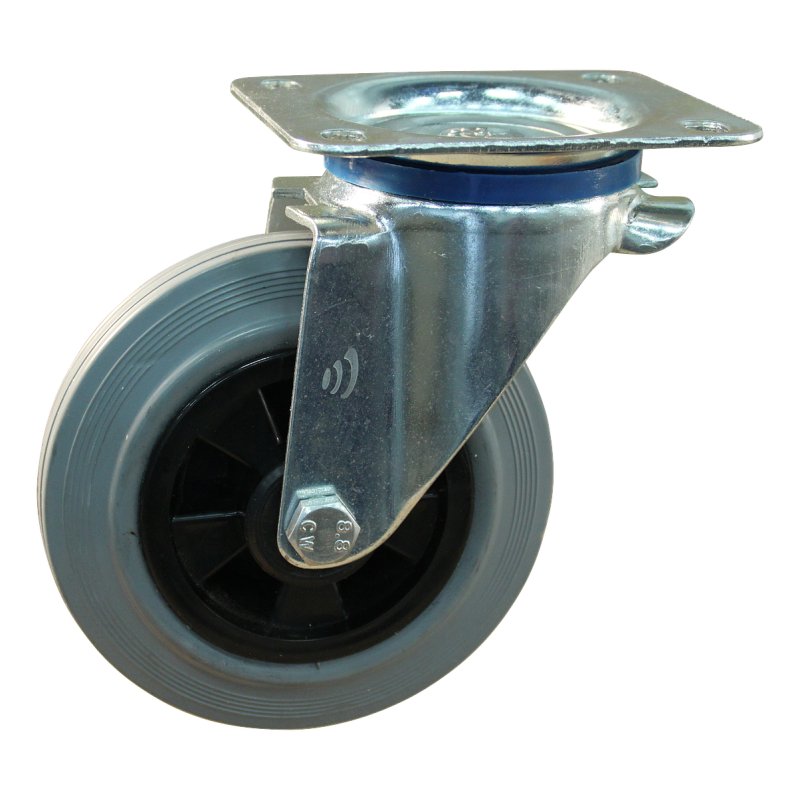

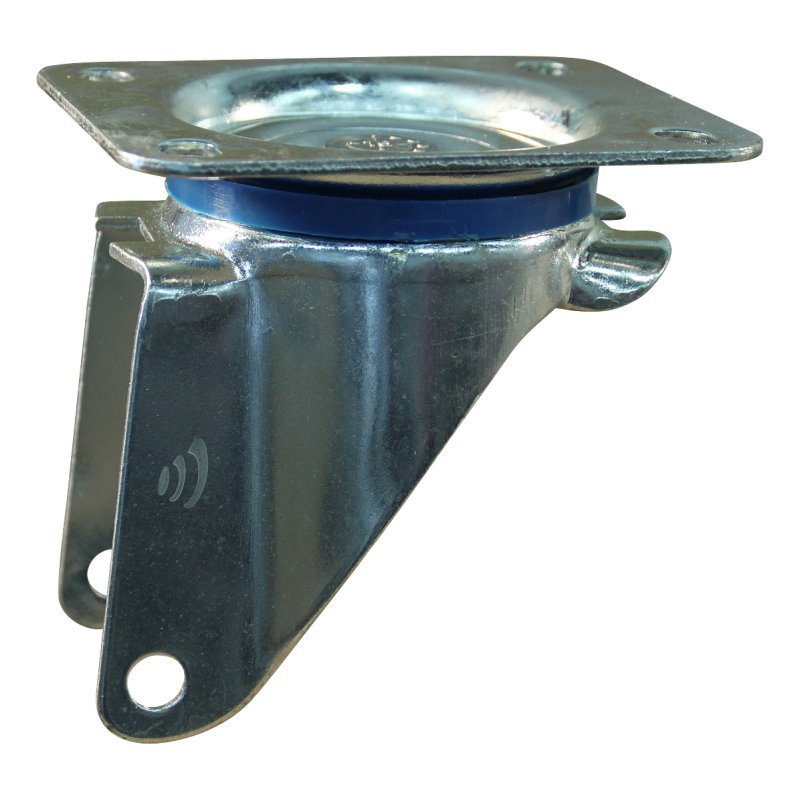

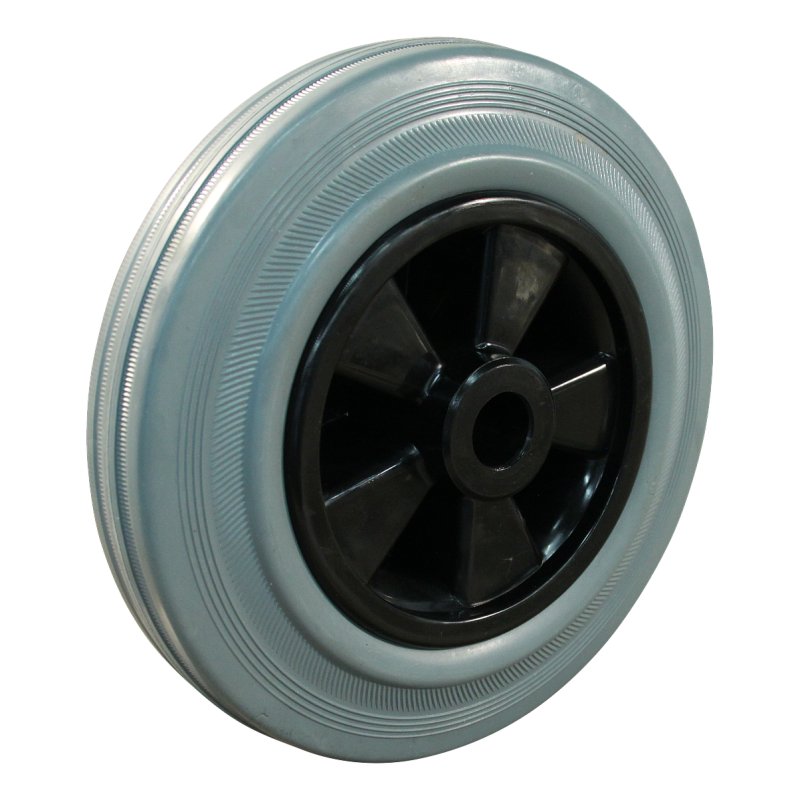

swivel castor 200mm series 11 ᠆ 12 plaatbevestiging met uitsparing richtingvastzetter plain bore

Reference : 211.201.127.000

Brand Novio Application Transportwheels Waste containers Industry Industry and internal logistics Wheel type swivel castor Wheel diameter 200 mm Fork mounting plate mounting with recess for directional lock Bearing type plain bearing Brake type no brake Tread material rubber / TPE Overall height 241 mm Maximum load capacity 205 kg width 48 mm rim PP rim colour jet black RAL 9005 diameter axle bore 20 mm diameter axle bore fork 12,2 +/-1,0 mm hub length mm 60 mm hub-to-fork length 62 +4,0/-0,0 m…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie et logistique interne
Application	Roue de transport Conteneurs à déchets
width	48 mm
Wheel type	roulette pivotante
Bearing type	palier lisse
Maximum load capacity	205 kg
Wheel diameter	200 mm
offset	55 +/-1,0 mm
Tread material	caoutchouc / TPE
rim	PP
Overall height	241 mm
hub length mm	60 mm
Fork mounting	fixation sur platine avec encoche pour blocage directionnel
rim colour	noir foncé RAL 9005
material fork	métal
Brake type	sans frein
dimension fixing	135x110 / 105x75/80 / Ø11 mm
hub-to-fork length	62 +4,0/-0,0 mm
tire	caoutchouc standard
tire colour	gris argent RAL 7001
tolerance hardness	+/-3
hardness Shore A	80 Shore A
diameter axle bore	20 mm
colour support/housing	zingué
