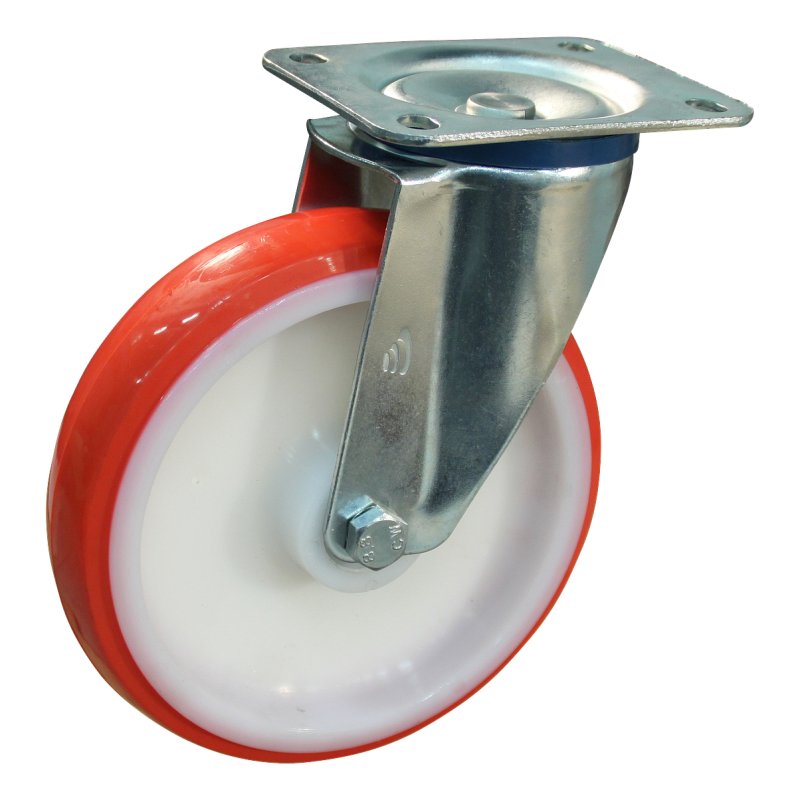

swivel castor 200mm series 27 ᠆ 15 plate mounting roller bearing

Reference : 227.202.156.000

Brand Novio Application Transportwheels Wheel type swivel castor Wheel diameter 200 mm Fork mounting plate mounting Bearing type roller bearing Brake type no brake Tread material PU / TPU Overall height 235 mm Maximum load capacity 400 kg width 50 mm rim PA rim colour natural diameter axle bore 20 mm diameter axle bore fork 12,2 mm hub length mm 58 mm hub-to-fork length 62 +1,5/-0 mm offset 55 +/-0,5 mm colour support/housing zinc plated material fork steel dimension fixing 135x110 / 105x75/80 …

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Application	Roue de transport
width	50 mm
Wheel type	roulette pivotante
Bearing type	roulement à rouleaux
Maximum load capacity	400 kg
Wheel diameter	200 mm
offset	55 +/-0,5 mm
Tread material	PU / TPU
rim	PA
Overall height	235 mm
hub length mm	58 mm
Fork mounting	fixation platine
rim colour	naturel
material fork	métal
Brake type	sans frein
dimension fixing	135x110 / 105x75/80 / Ø11 mm
diameter axle bore fork	12,2 mm
hub-to-fork length	62 +1,5/-0 mm
tire	TPU
tire colour	pneu orange
tolerance hardness	+/-3
hardness Shore A	97 Shore A
diameter axle bore	20 mm
colour support/housing	zingué
