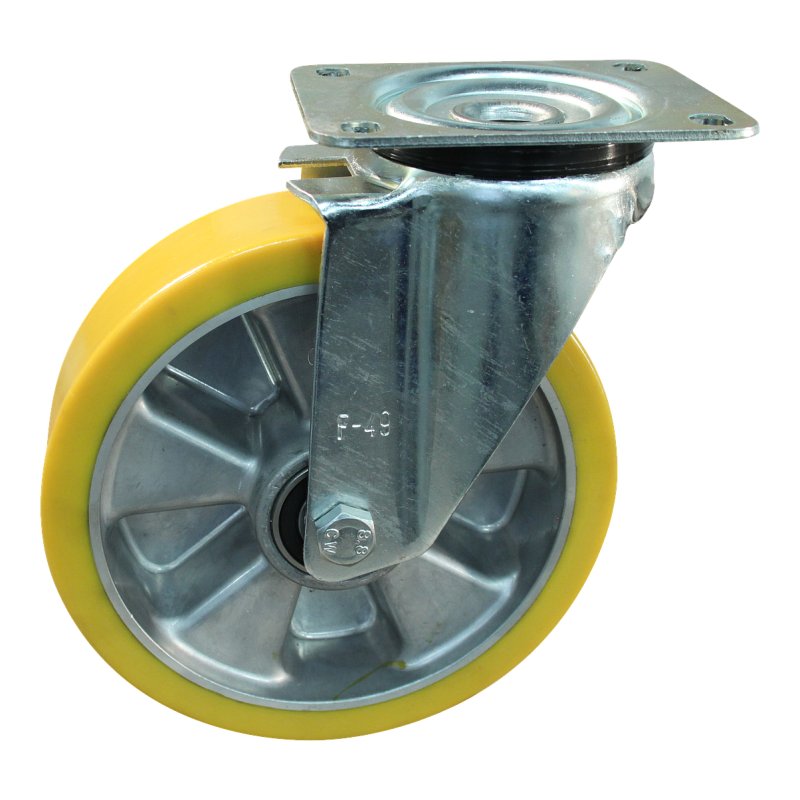

swivel castor 200mm series 29 ᠆ 11 plate mounting ball bearing

Reference : 229.206.116.052

Brand Novio Application Transportwheels Wheel type swivel castor Wheel diameter 200 mm Fork mounting plate mounting Bearing type ball bearing Brake type no brake Tread material CPU Overall height 234 mm Maximum load capacity 300 kg width 50 mm rim aluminium ADC12 (A383) rim colour not painted diameter axle bore 20 mm diameter axle bore fork 12,5 mm hub length mm 60 mm hub-to-fork length 60 mm offset 57 mm colour support/housing bright galvanized material fork steel dimension fixing 135x105 / 10…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Application	Roue de transport
width	50 mm
Wheel type	roulette pivotante
Bearing type	roulement à billes
Maximum load capacity	300 kg
Wheel diameter	200 mm
offset	57 mm
Tread material	CPU
rim	aluminium ADC12 (A383)
Overall height	234 mm
hub length mm	60 mm
Fork mounting	fixation platine
rim colour	brut
material fork	métal
Brake type	sans frein
dimension fixing	135x105 / 105x75/80 / Ø11 mm
diameter axle bore fork	12,5 mm
hub-to-fork length	60 mm
tire	CPU
tire colour	jaune miel RAL 1005
tolerance hardness	+/-2
hardness Shore A	94 Shore A
diameter axle bore	20 mm
colour support/housing	zingué brillant
