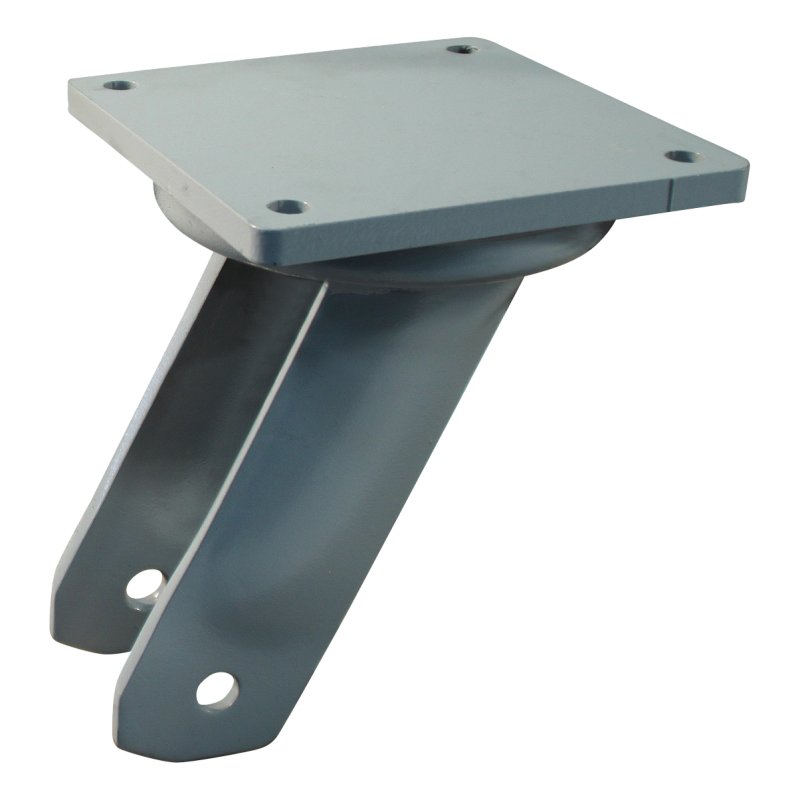

swivel castor 200mm series 744 ᠆ 20 plate mounting ball bearing

Reference : 244.246.206.200

Brand Novio Application Flanged wheels Transportwheels Industry Industry and internal logistics set name swivel castor Wheel type swivel castor Wheel diameter 200 mm Fork mounting plate mounting Bearing type ball bearing Brake type no brake Tread material cast iron / steel Overall height 318.5 mm Maximum load capacity 2000 kg diameter axle bore fork 16,5 mm hub-to-fork length 66 mm offset 75 mm colour support/housing silver painted material fork steel dimension fixing 180x180 / 145x145 / Ø13 mm…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie et logistique interne
material	métal
Application	Roues et roulettes à boudin Roue de transport
Wheel type	roulette pivotante
Bearing type	roulement à billes
Maximum load capacity	2 000 kg
Wheel diameter	200 mm
offset	75 mm
Tread material	fonte / acier
Overall height	318,5 mm
hub length mm	50 m
Fork mounting	fixation platine
material fork	métal
Brake type	sans frein
dimension fixing	180x180 / 145x145 / Ø13 mm
diameter axle bore fork	16,5 mm
hub-to-fork length	66 mm
colour support/housing	peint en argent
outside diameter	62 mm
name	roulement à billes
bore diameter	25 mm
bearing width	17 mm

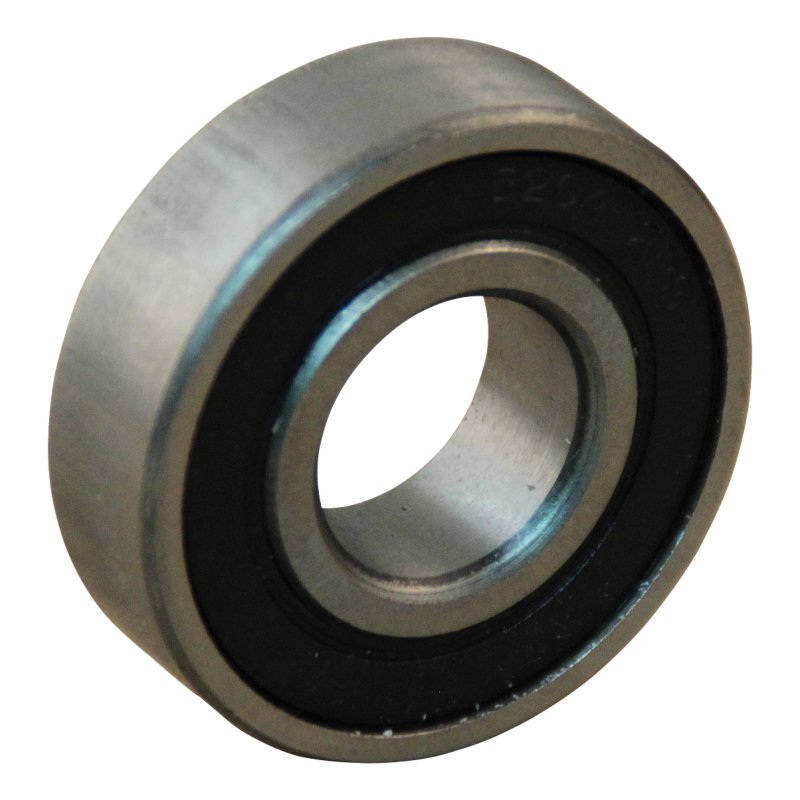

bearing type	6305 2RS C3
load capacity kg	2 500
groove type	En forme de V
set name	roulette pivotante
