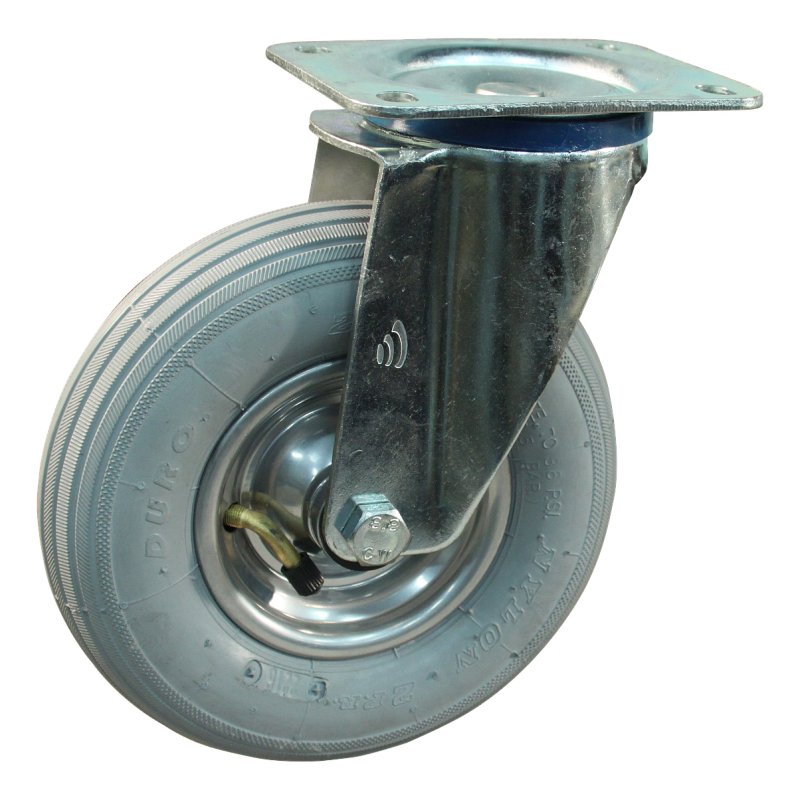

swivel castor 200x50 1.25x3.8 (200x50) ET0 NL60mm steel HF-207A silver grey 200mm 15 plate mounting roller bearing
KINGS TIRE
Reference : 246.202.156.012
Brand KINGS TIRE Application Swivel and fixed castors with pneumatic tyres Industry Industry and internal logistics series series 46 tyre size 200x50 width 50 mm wheel size 1.25x3.8 (200x50) diameter 200 mm offset 55 +/-0,5 mm nominal width 200 mm separator x hub length NL60 mm SI A3 wheel material steel profile HF-207A PR 2PR tyre type TT inch size 3.8 inch wheel width 1.25 inch 1/2/3-piece 1-piece pressure (bar) 2,5 wheel colour silver grey RAL colour white aluminum RAL 9006 surface treatment…
On order Supply lead time : environ 8 semaines
📩 Notify me when this product is available again
A single email, when it is back in stock. No spam.
Specifications
| Industry | Industrie et logistique interne |
| series | série 46 |
| Application | Les roues pivotantes et fixes avec pneumatiques |
| width | 50 mm |
| Wheel type | roulette pivotante |
| Bearing type | roulement à rouleaux |
| Maximum load capacity | 75 kg |
| Wheel diameter | 200 mm |
| offset | 55 +/-0,5 mm |
| Overall height | 235 mm |
| Fork mounting | fixation platine |
| material fork | métal |
| Brake type | sans frein |
| dimension fixing | 135x110 / 105x75/80 / Ø11 mm |
| diameter axle bore fork | 12,2 mm |
| hub-to-fork length | 62 +1,5/-0 mm |
| colour support/housing | zingué |
| inch size | 3.8 pouce |
| diameter | 200 mm |
| tyre size | 200x50 |
| profile | HF-207A |
| tyre type | TT |
| pressure (bar) | 2,5 |
| nominal width | 200 mm |
| wheel colour | gris argent |
| wheel material | métal |
| RAL colour | aluminium blanc RAL 9006 |
| wheel size | 1.25x3.8 (200x50) |
| separator | x |
| 1/2/3-piece | 1-pièce |
| PR | 2PR |
| bore diameter | Ø20 mm |
| SI | A3 |
| surface treatment | peinture en poudre |
| wheel width | 1.25 pouce |
| hub length | NL60 mm |
| nominal height | 50 |
Description
swivel castor 200x50 1.25x3.8 (200x50) ET0 NL60mm steel HF-207A silver grey 200mm 15 plate mounting roller bearing
- Brand
- KINGS TIRE
- Application
- Swivel and fixed castors with pneumatic tyres
- Industry
- Industry and internal logistics
- series
- series 46
- tyre size
- 200x50
- width
- 50 mm
- wheel size
- 1.25x3.8 (200x50)
- diameter
- 200 mm
- offset
- 55 +/-0,5 mm
- nominal width
- 200 mm
- separator
- x
- hub length
- NL60 mm
- SI
- A3
- wheel material
- steel
- profile
- HF-207A
- PR
- 2PR
- tyre type
- TT
- inch size
- 3.8 inch
- wheel width
- 1.25 inch
- 1/2/3-piece
- 1-piece
- pressure (bar)
- 2,5
- wheel colour
- silver grey
- RAL colour
- white aluminum RAL 9006
- surface treatment
- powder coating
- Wheel type
- swivel castor
- Wheel diameter
- 200 mm
- nominal height
- 50
- Fork mounting
- plate mounting
- Bearing type
- roller bearing
- Brake type
- no brake
- Overall height
- 235 mm
- Maximum load capacity
- 75 kg
- diameter axle bore fork
- 12,2 mm
- hub-to-fork length
- 62 +1,5/-0 mm
- colour support/housing
- zinc plated
- material fork
- steel
- dimension fixing
- 135x110 / 105x75/80 / Ø11 mm
- bore diameter
- Ø20 mm
