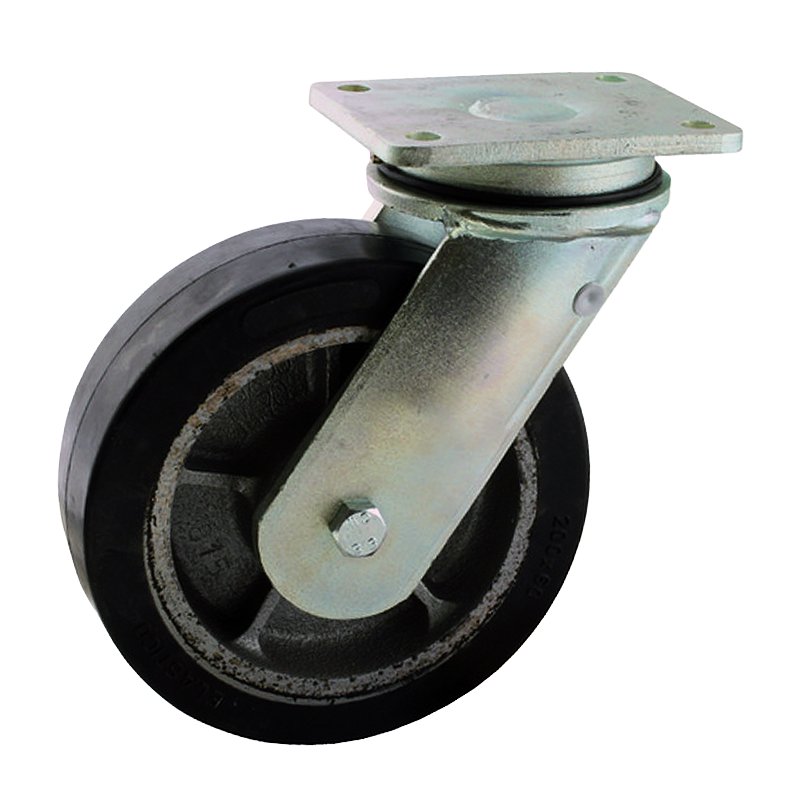

swivel castor 250mm series 04 ᠆ 22 plate mounting ball bearing

Reference : 204.256.226.080

Brand Novio Application Heavy duty wheels Transportwheels Industry Agriculture and horticulture Industry and internal logistics Wheel type swivel castor Wheel diameter 250 mm Fork mounting plate mounting Bearing type ball bearing Brake type no brake Tread material rubber / TPE Overall height 306 mm Maximum load capacity 750 kg width 80 mm rim cast iron rim colour silver grey RAL 7001 diameter axle bore fork 16 mm hub length mm 80 mm hub-to-fork length 95 mm offset 83 mm colour support/housing z…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Agriculture et horticulture Industrie et logistique interne
Application	Roulettes fortes charges Roue de transport
width	80 mm
Wheel type	roulette pivotante
Bearing type	roulement à billes
Maximum load capacity	750 kg

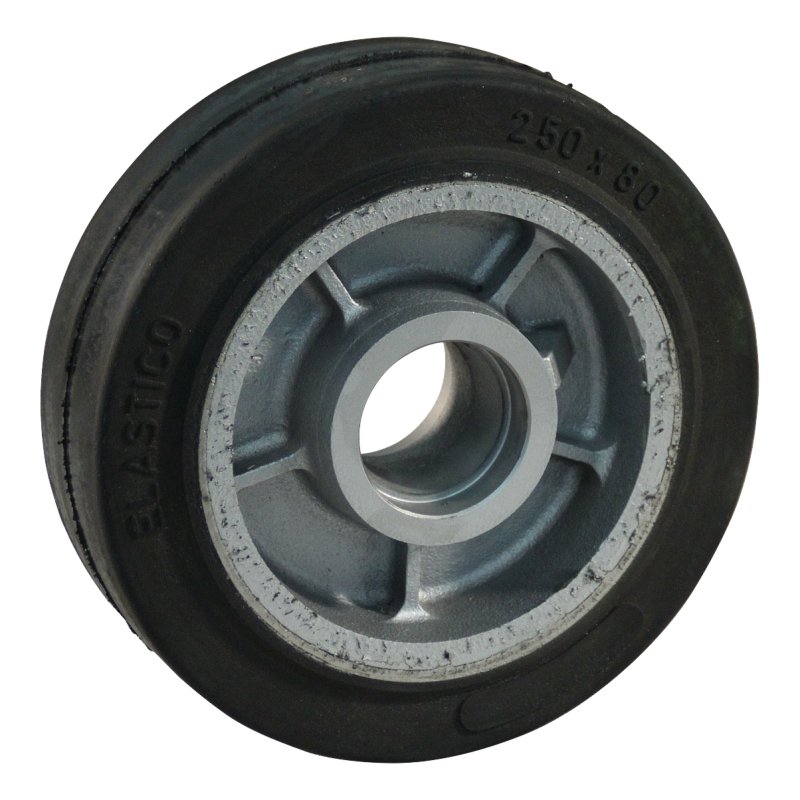

Wheel diameter	250 mm
offset	83 mm
Tread material	caoutchouc / TPE
rim	fonte
Overall height	306 mm
hub length mm	80 mm

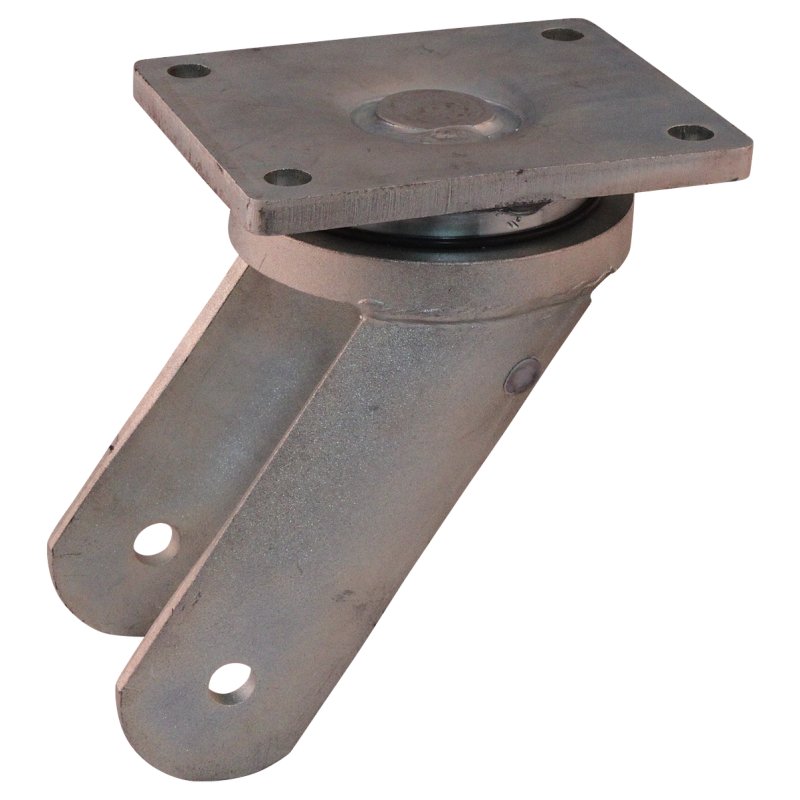

Fork mounting	fixation platine
rim colour	gris argent RAL 7001
material fork	métal
Brake type	sans frein
dimension fixing	140x175 / 105x140 / Ø15 mm
diameter axle bore fork	16 mm
hub-to-fork length	95 mm
tire	caoutchouc souple
tire colour	noir
tolerance hardness	+/-3
hardness Shore A	70 Shore A
colour support/housing	zingué
outside diameter	62 mm

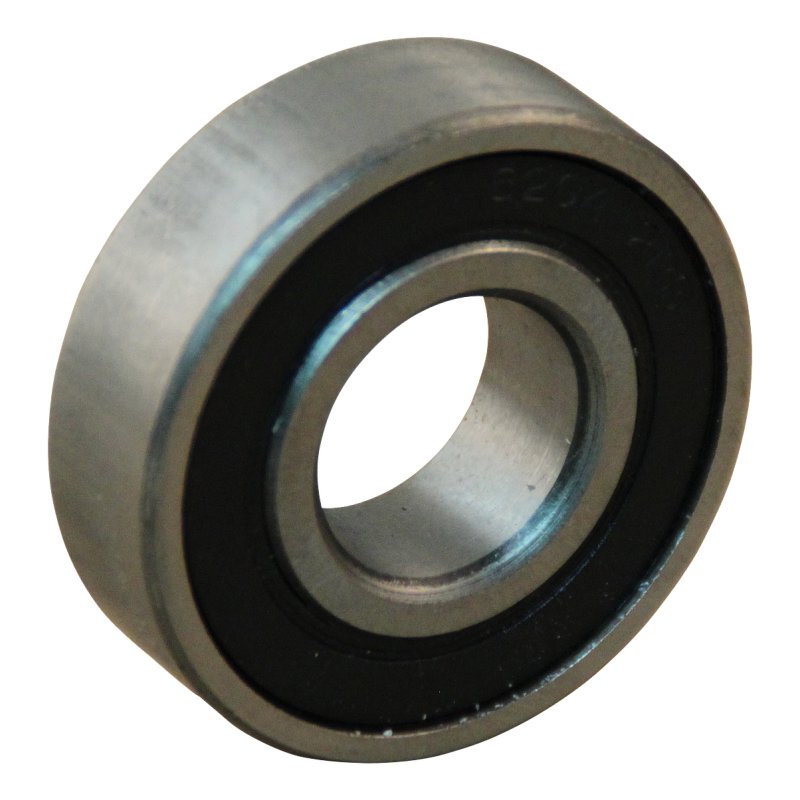

name	roulement à billes
bore diameter	30 mm
bearing width	16 mm
bearing type	6206 2RS C3
