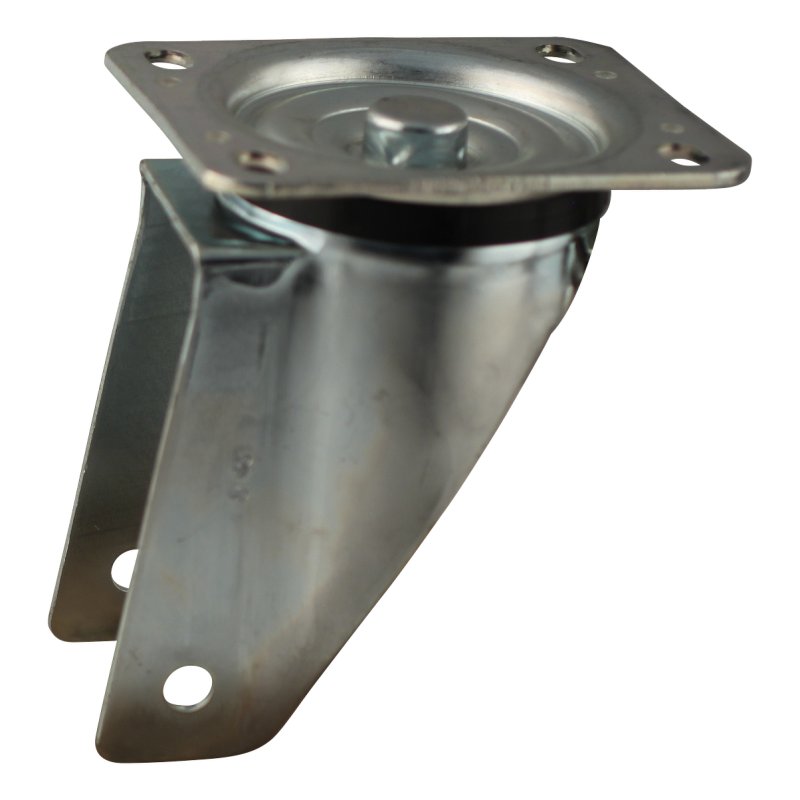

swivel castor 250mm series 29 ᠆ 91 plate mounting ball bearing

Reference : 229.256.916.062

Brand Novio Application Transportwheels Industry Industry and internal logistics Wheel type swivel castor Wheel diameter 250 mm Fork mounting plate mounting Bearing type ball bearing Brake type no brake Tread material PU / TPU Overall height 305 mm Maximum load capacity 550 kg width 60 mm rim aluminium ADC12 (A383) rim colour white aluminum RAL 9006 diameter axle bore 25 mm diameter axle bore fork 12,3 mm hub length mm 60 mm hub-to-fork length 95 0/+2 mm offset 90 +/-1 mm colour support/housing…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie et logistique interne
Application	Roue de transport
width	60 mm
Wheel type	roulette pivotante
Bearing type	roulement à billes
Maximum load capacity	550 kg
Wheel diameter	250 mm
offset	90 +/-1 mm
Tread material	PU / TPU
rim	aluminium ADC12 (A383)
Overall height	305 mm
hub length mm	60 mm
Fork mounting	fixation platine
rim colour	aluminium blanc RAL 9006
material fork	métal
Brake type	sans frein
dimension fixing	200x160 / 160/140x120/105 / 14x26,5 mm
diameter axle bore fork	12,3 mm
hub-to-fork length	95 0/+2 mm
tire	PU
tire colour	jaune miel RAL 1005
tolerance hardness	+/-2
hardness Shore A	94 Shore A
diameter axle bore	25 mm
colour support/housing	zingué
dimension	M16 mm
dimension 2	30x17,0x3,0
