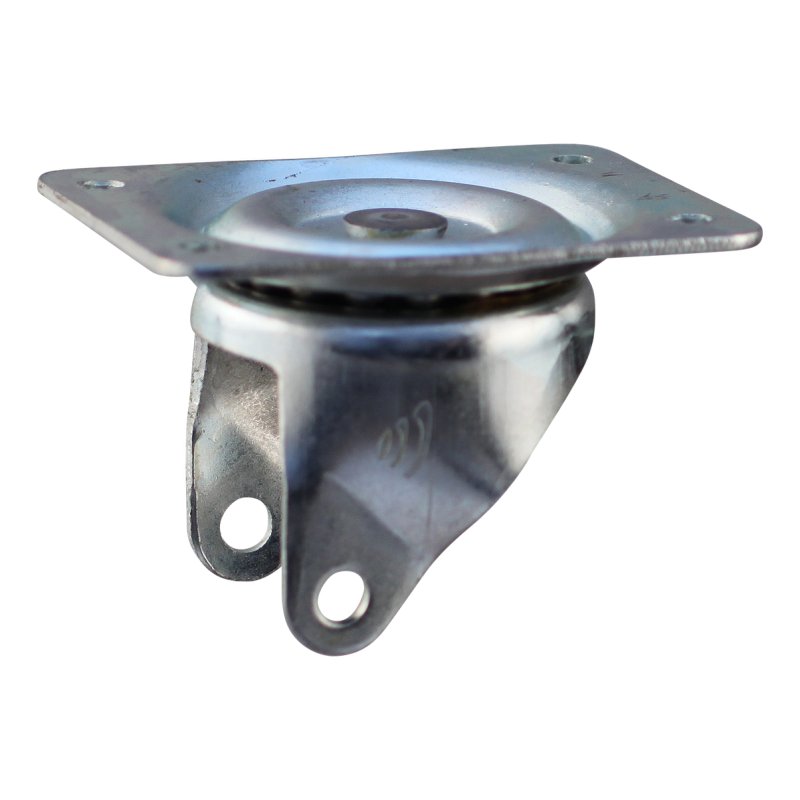

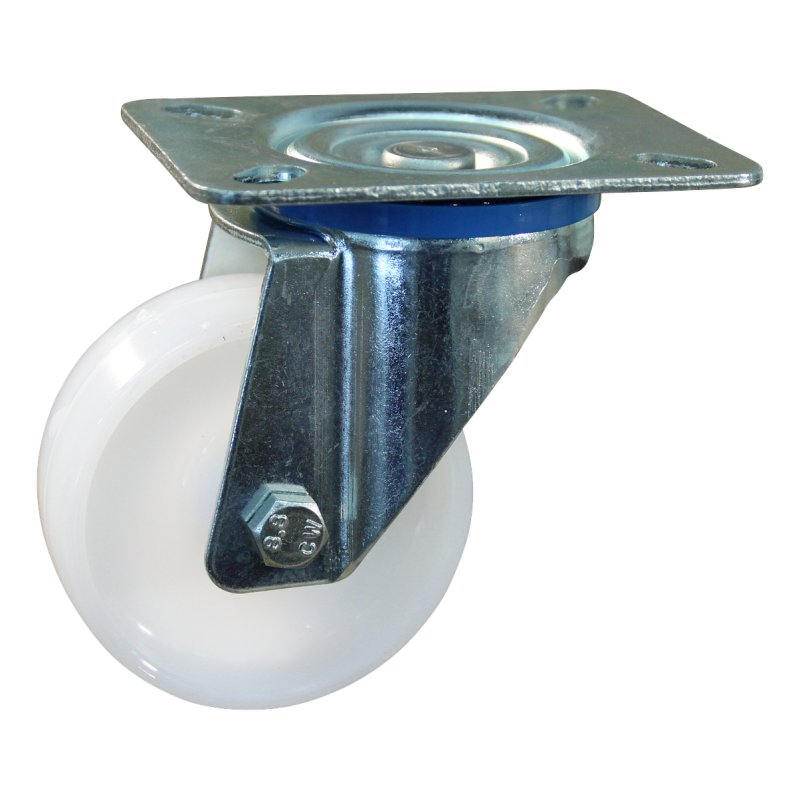

swivel castor 65mm serie 34 ᠆ 12 plate mounting plain bore

Reference : 234.061.126.030

Brand Novio Application Transportwheels Industry Food industry and industrial kitchens Industry and internal logistics Wheel type swivel castor Wheel diameter 65 mm Fork mounting plate mounting Bearing type plain bearing Brake type no brake Tread material plastic Overall height 84.5 mm Maximum load capacity 65 kg width 30 mm rim PA rim colour natural diameter axle bore 10,2 mm diameter axle bore fork 8,2 mm hub length mm 34 mm hub-to-fork length 37,5 mm offset 16 mm colour support/housing zinc …

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie alimentaire et restauration collective Industrie et logistique interne
Application	Roue de transport
width	30 mm
Wheel type	roulette pivotante
Bearing type	palier lisse
Maximum load capacity	65 kg
Wheel diameter	65 mm
offset	16 mm
Tread material	plastique
rim	PA
Overall height	84,5 mm
hub length mm	34 mm
Fork mounting	fixation platine
rim colour	naturel
material fork	métal
Brake type	sans frein
dimension fixing	93x70 / 75,8x44,7 / 3 / Ø6,2 mm
diameter axle bore fork	8,2 mm
hub-to-fork length	37,5 mm
diameter axle bore	10,2 mm
colour support/housing	zingué
