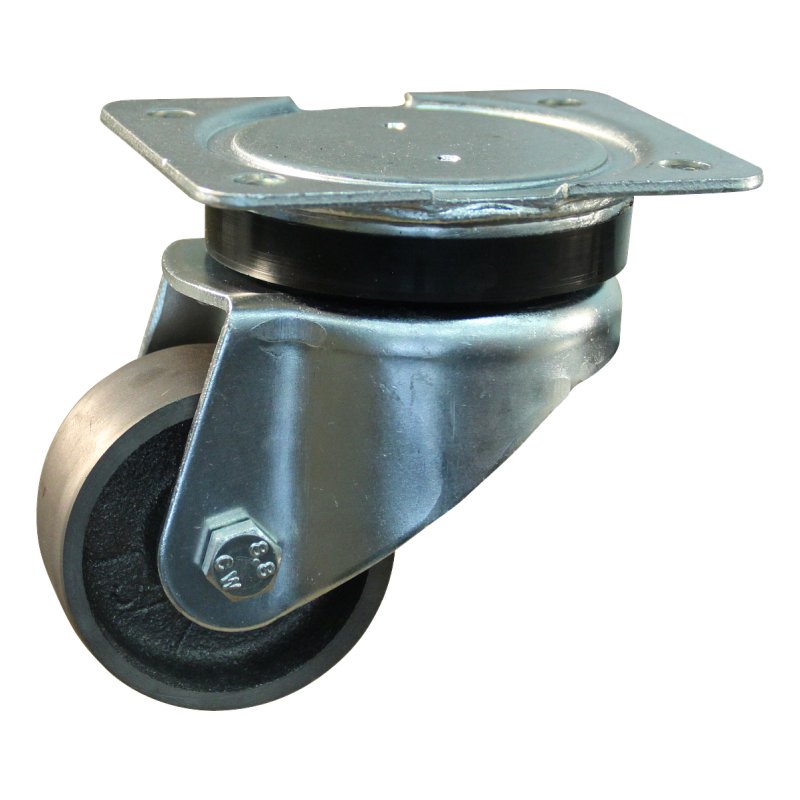

swivel castor 65mm serie 45 ᠆ 14 plate mounting plain bore

Reference : 245.061.146.030

Brand Novio Application Transportwheels Industry Industry and internal logistics Wheel type swivel castor Wheel diameter 65 mm Fork mounting plate mounting Bearing type plain bearing Brake type no brake Tread material cast iron / steel Overall height 103.5 mm Maximum load capacity 175 kg width 30 mm rim cast iron diameter axle bore 10 mm diameter axle bore fork 8,5 mm hub length mm 34 mm hub-to-fork length 43 +2/-0 mm offset 40 mm colour support/housing zinc plated material fork steel overall h…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie et logistique interne
Application	Roue de transport
width	30 mm
Wheel type	roulette pivotante
Bearing type	palier lisse
Maximum load capacity	175 kg
Wheel diameter	65 mm
offset	40 mm
Tread material	fonte / acier
rim	fonte
Overall height	103,5 mm
hub length mm	34 mm
Fork mounting	fixation platine
material fork	métal
Brake type	sans frein
diameter axle bore fork	8,5 mm
hub-to-fork length	43 +2/-0 mm
diameter axle bore	10 mm
colour support/housing	zingué
overall height	108,5 mm

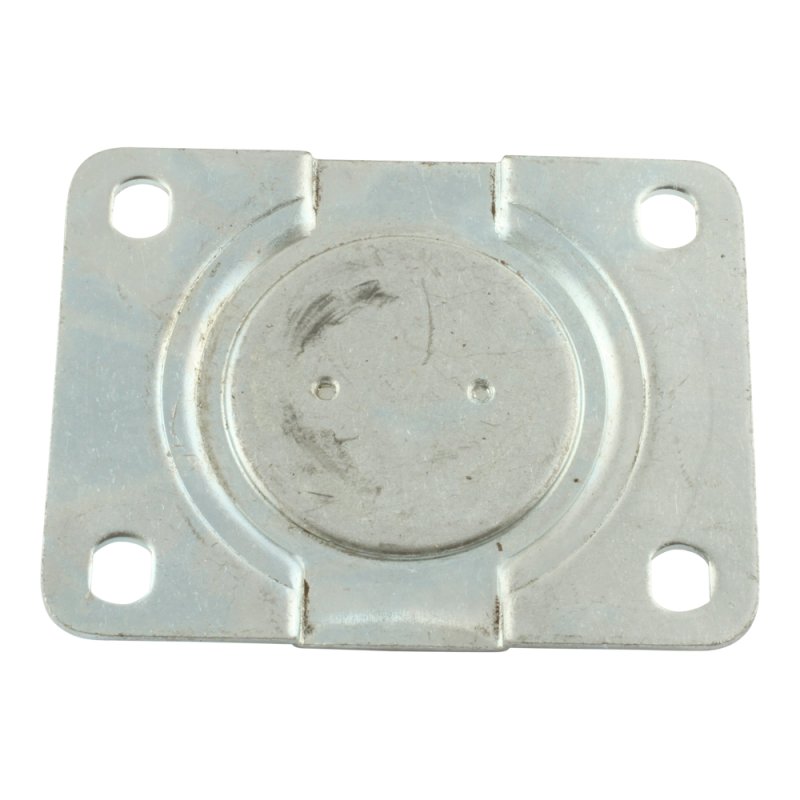

fixing	plaat 105x85x3,0 / 80x60 / Ø8
