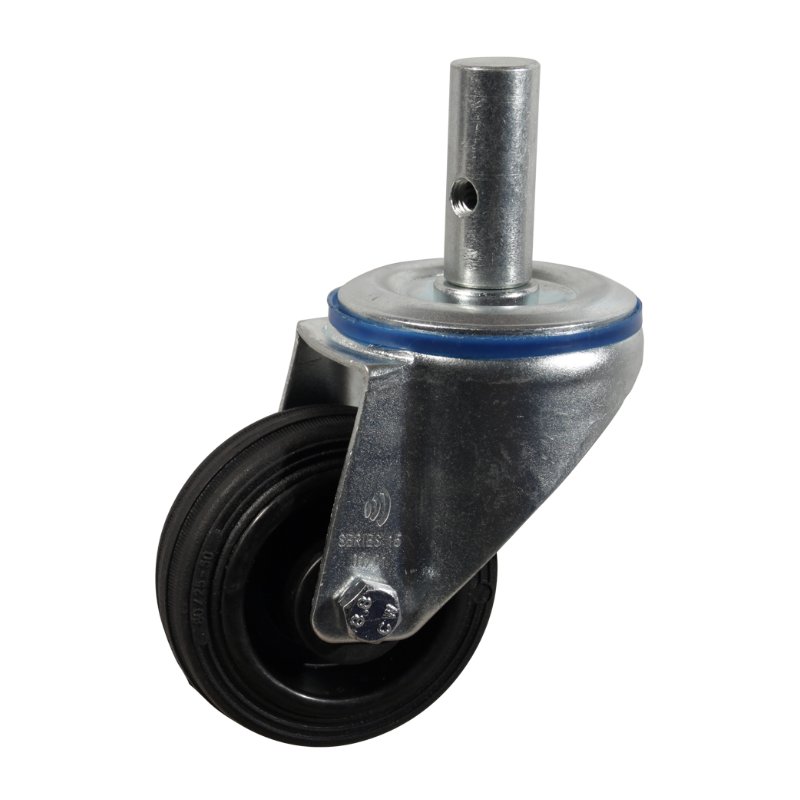

swivel castor 80mm series 01 ᠆ 15 pin roller bearing

Reference : 201.082.155.027

Brand Novio Application Transportwheels Wheel type swivel castor Wheel diameter 80 mm Fork mounting pin Bearing type roller bearing Brake type no brake Tread material rubber / TPE Overall height 105 mm Maximum load capacity 50 kg width 25 mm rim PP rim colour jet black RAL 9005 diameter axle bore 12 mm diameter axle bore fork 8,2 mm hub length mm 42 mm hub-to-fork length 42 +2,0 mm offset 38 +/-0,5 mm colour support/housing zinc plated material fork steel dimension fixing 12,5 mm tire standard …

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Application	Roue de transport
width	25 mm
Wheel type	roulette pivotante
Bearing type	roulement à rouleaux
Maximum load capacity	50 kg
Wheel diameter	80 mm
offset	38 +/-0,5 mm
Tread material	caoutchouc / TPE
rim	PP
Overall height	105 mm
hub length mm	42 mm
Fork mounting	axe
rim colour	noir foncé RAL 9005
material fork	métal
Brake type	sans frein
dimension fixing	12,5 mm
diameter axle bore fork	8,2 mm
hub-to-fork length	42 +2,0 mm
tire	caoutchouc standard
tire colour	noir
tolerance hardness	+/-3
hardness Shore A	80 Shore A
diameter axle bore	12 mm
colour support/housing	zingué
