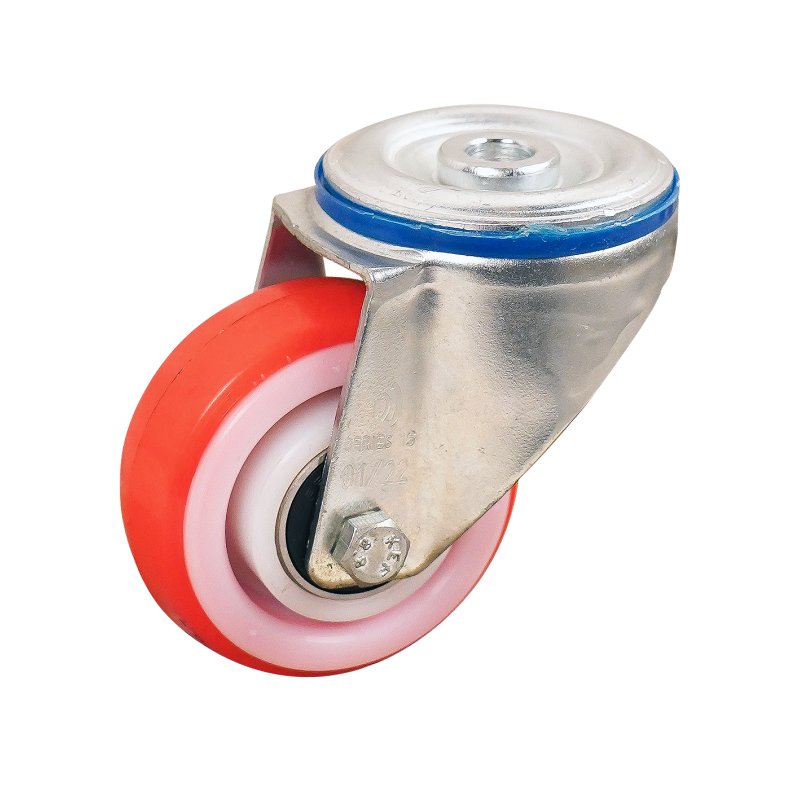

swivel castor 80mm series 27 ᠆ 15 bolt hole ball bearing

Reference : 227.086.150.000

Brand Novio Application Transportwheels Industry Food industry and industrial kitchens Industry and internal logistics Wheel type swivel castor Wheel diameter 80 mm Fork mounting bolt hole Bearing type ball bearing Brake type no brake Tread material PU / TPU Overall height 105 mm Maximum load capacity 175 kg width 30 mm rim PA rim colour natural diameter axle bore fork 8,2 mm hub length mm 40 mm hub-to-fork length 42 +2,0 mm offset 38 +/-0,5 mm colour support/housing zinc plated material fork s…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie alimentaire et restauration collective Industrie et logistique interne
Application	Roue de transport
width	30 mm
Wheel type	roulette pivotante
Bearing type	roulement à billes
Maximum load capacity	175 kg
Wheel diameter	80 mm
offset	38 +/-0,5 mm
Tread material	PU / TPU
rim	PA
Overall height	105 mm
hub length mm	40 mm
Fork mounting	trou de boulon
rim colour	naturel
material fork	métal
Brake type	sans frein
dimension fixing	12,5 mm
diameter axle bore fork	8,2 mm
hub-to-fork length	42 +2,0 mm
tire	TPU
tire colour	orange
tolerance hardness	+/-3
hardness Shore A	97 Shore A
colour support/housing	zingué
outside diameter	35 mm
bore diameter	15 mm
bearing width	11 mm

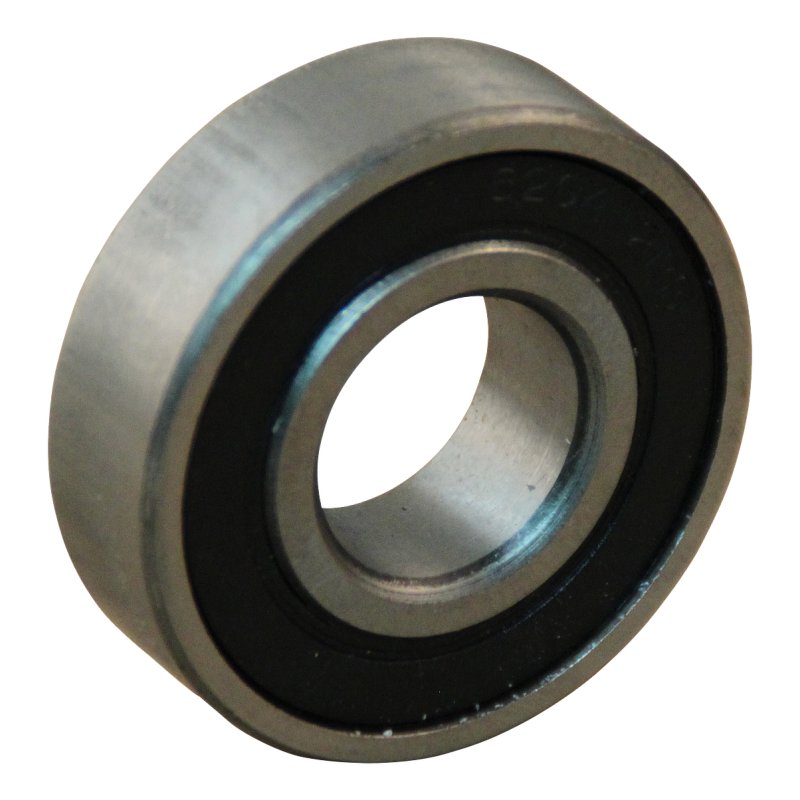

bearing type	6202 2RS C3
