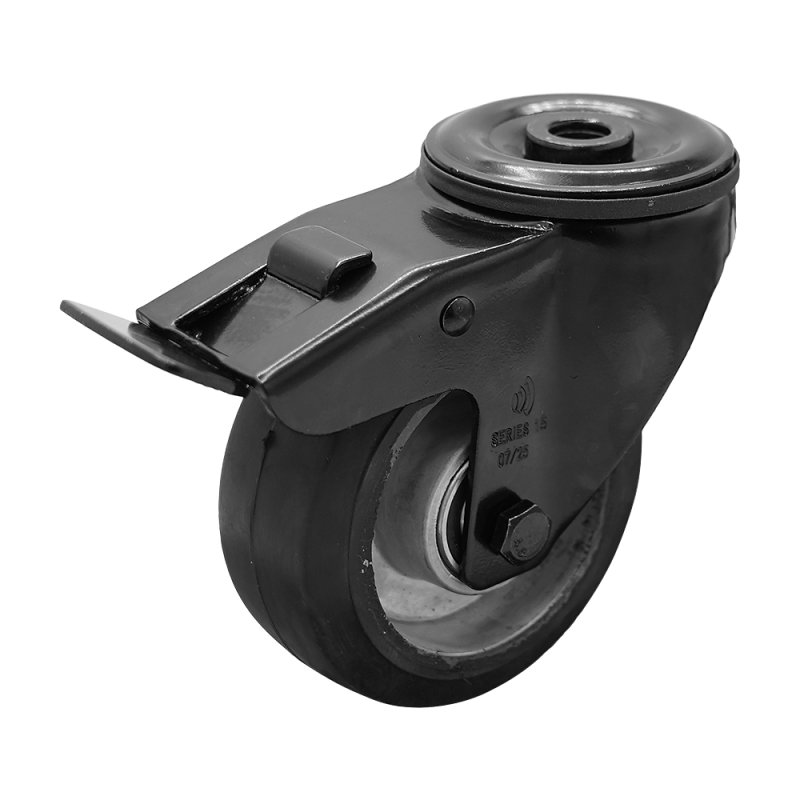

swivel castor with brake 100mm Novio Black series 10 ᠆ 15 bolt hole ball bearing

Reference : 210.106.150.543

Brand Novio Application Transportwheels Wheel type swivel castor Wheel diameter 100 mm Novio Black Novio Black Fork mounting bolt hole Bearing type ball bearing Brake type double brake overrun Tread material rubber / TPE Overall height 126 mm Maximum load capacity 210 kg width 40 mm rim aluminium ADC12 (A383) diameter axle bore 15 mm diameter axle bore fork 8,2 mm hub length mm 40 mm hub-to-fork length 42 +2,0 mm offset 38 +/-0,5 mm colour support/housing zinc plated material fork jet black RAL…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Application	Roue de transport
width	40 mm
Wheel type	roulette pivotante
Bearing type	roulement à billes
Maximum load capacity	210 kg
Wheel diameter	100 mm
offset	38 +/-0,5 mm
Tread material	caoutchouc / TPE
rim	aluminium ADC12 (A383)
Overall height	126 mm
hub length mm	40 mm
Fork mounting	trou de boulon
material fork	noir foncé RAL 9005
Brake type	frein double arrière
dimension fixing	12,5 mm
diameter axle bore fork	8,2 mm
hub-to-fork length	42 +2,0 mm
tire	caoutchouc souple
tire colour	noir foncé RAL 9005
tolerance hardness	+/-4
hardness Shore A	68 Shore A
diameter axle bore	15 mm
colour support/housing	zingué
Novio Black	Novio Noir
