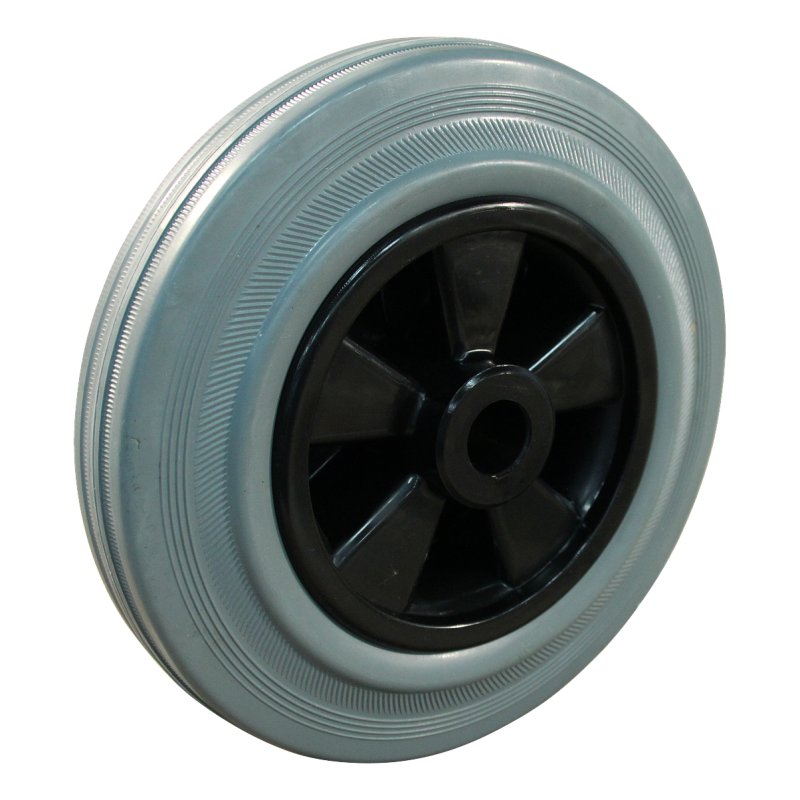

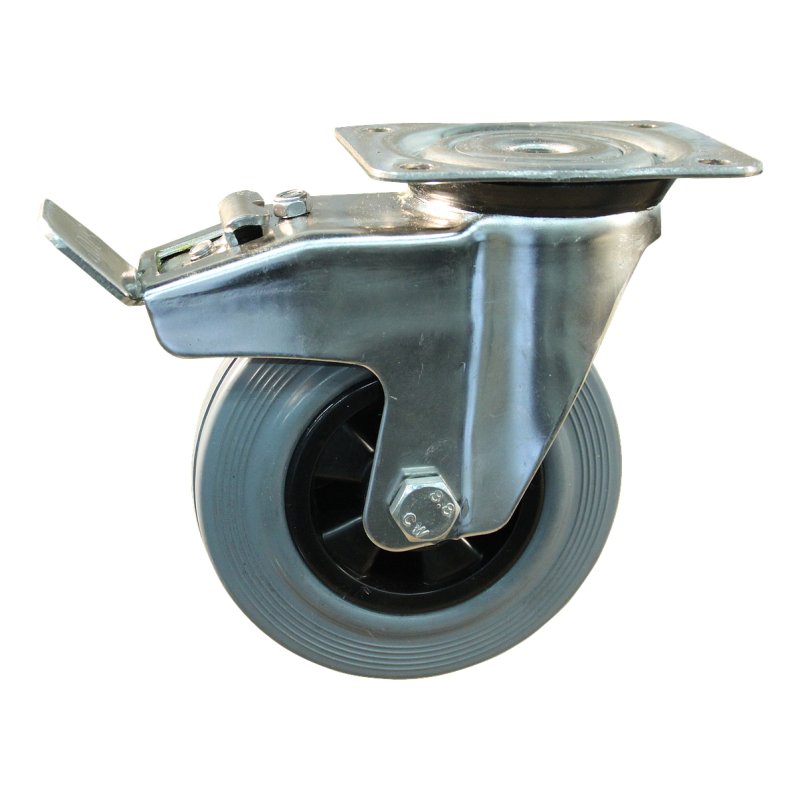

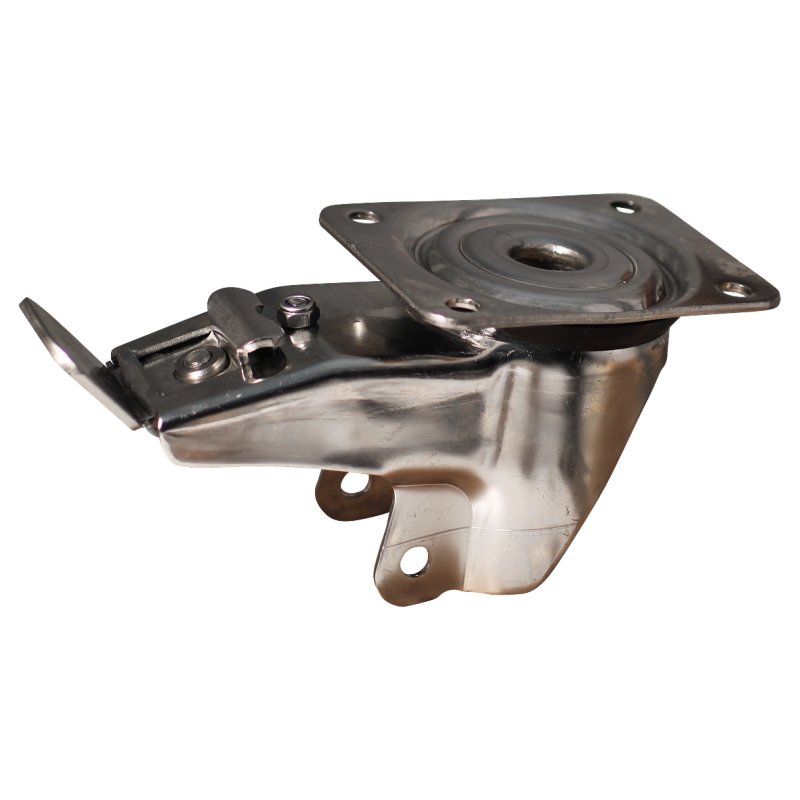

swivel castor with brake 100mm series 11 ᠆ 31 plate mounting plain bore

Reference : 211.101.316.500

Brand Novio Application Transportwheels Industry Food industry and industrial kitchens Industry and internal logistics Wheel type swivel castor Wheel diameter 100 mm Fork mounting plate mounting Bearing type plain bearing Brake type double brake overrun Tread material rubber / TPE Overall height 128 mm Maximum load capacity 70 kg width 30 mm rim PP rim colour jet black RAL 9005 diameter axle bore 12 mm diameter axle bore fork 8 mm hub length mm 40 mm hub-to-fork length 41 mm offset 38 mm materi…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie alimentaire et restauration collective Industrie et logistique interne
Application	Roue de transport
width	30 mm
Wheel type	roulette pivotante
Bearing type	palier lisse
Maximum load capacity	70 kg
Wheel diameter	100 mm
offset	38 mm
Tread material	caoutchouc / TPE
rim	PP
Overall height	128 mm
hub length mm	40 mm
Fork mounting	fixation platine
rim colour	noir foncé RAL 9005
material fork	inox 304
Brake type	frein double arrière
dimension fixing	100x80 / 80x60 / Ø9x13 mm
diameter axle bore fork	8 mm
hub-to-fork length	41 mm
tire	caoutchouc
tire colour	gris argent RAL 7001
tolerance hardness	+/-3°
hardness Shore A	80 Shore A
diameter axle bore	12 mm
