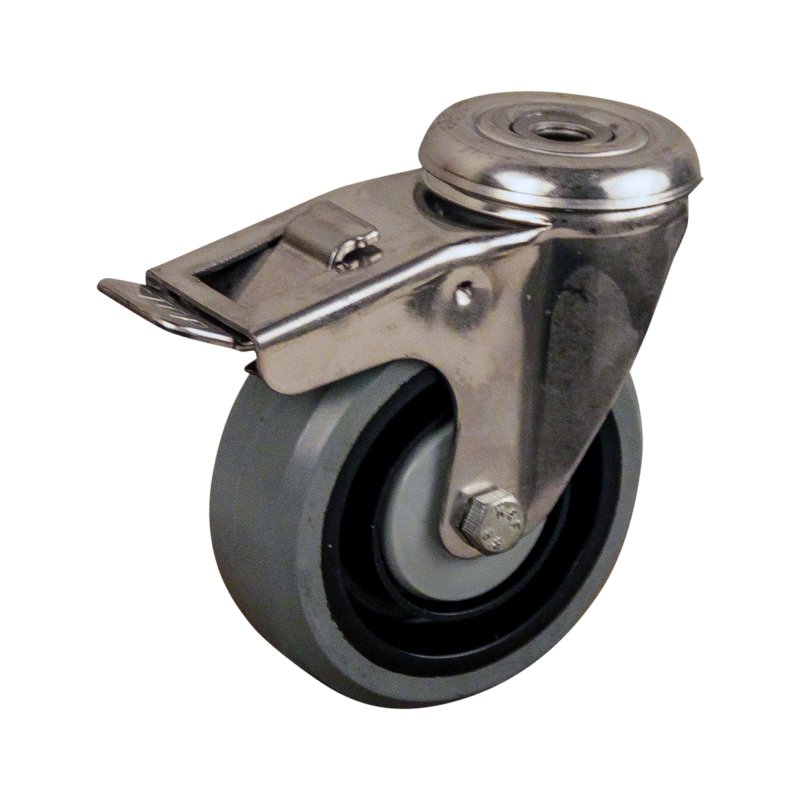

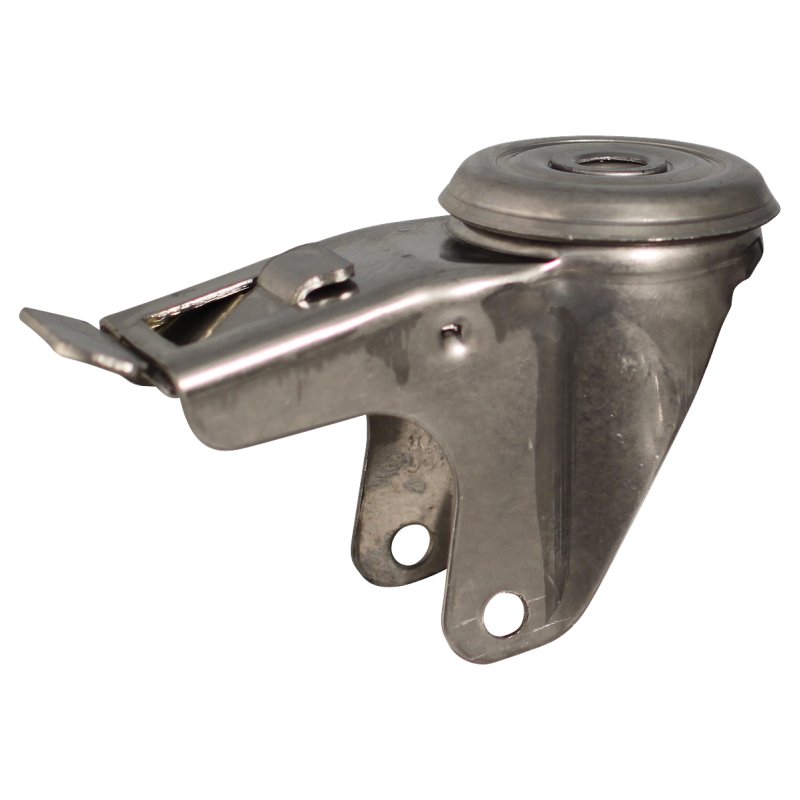

swivel castor with brake 100mm series 14 ᠆ 30 bolt hole Stainless steel ball bearing

Reference : 214.108.300.500

Brand Novio Application Transportwheels Industry Food industry and industrial kitchens Industry and internal logistics Wheel type swivel castor Wheel diameter 100 mm Fork mounting bolt hole Bearing type stainless steel ball bearing Brake type double brake overrun Tread material rubber / TPE Overall height 127 mm Maximum load capacity 130 kg width 36 mm rim PA rim colour jet black RAL 9005 diameter axle bore 8 mm diameter axle bore fork 8 mm hub length mm 40 mm hub-to-fork length 40 mm offset 32…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie alimentaire et restauration collective Industrie et logistique interne
Application	Roue de transport
width	36 mm
Wheel type	roulette pivotante
Bearing type	roulement à billes en inox
Maximum load capacity	130 kg
Wheel diameter	100 mm
offset	32 mm
Tread material	caoutchouc / TPE
rim	PA
Overall height	127 mm
hub length mm	40 mm
Fork mounting	trou de boulon
rim colour	noir foncé RAL 9005
material fork	inox
Brake type	frein double arrière
dimension fixing	12,5 mm
diameter axle bore fork	8 mm
hub-to-fork length	40 mm
tire	caoutchouc souple
tire colour	gris argent RAL 7001
tolerance hardness	+/-3
hardness Shore A	70 Shore A
diameter axle bore	8 mm
