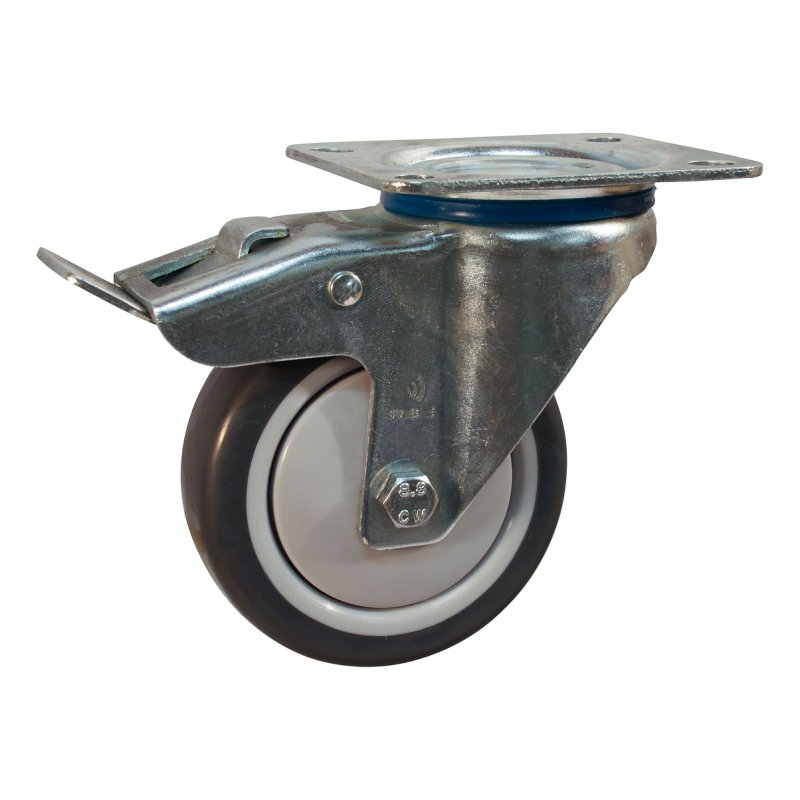

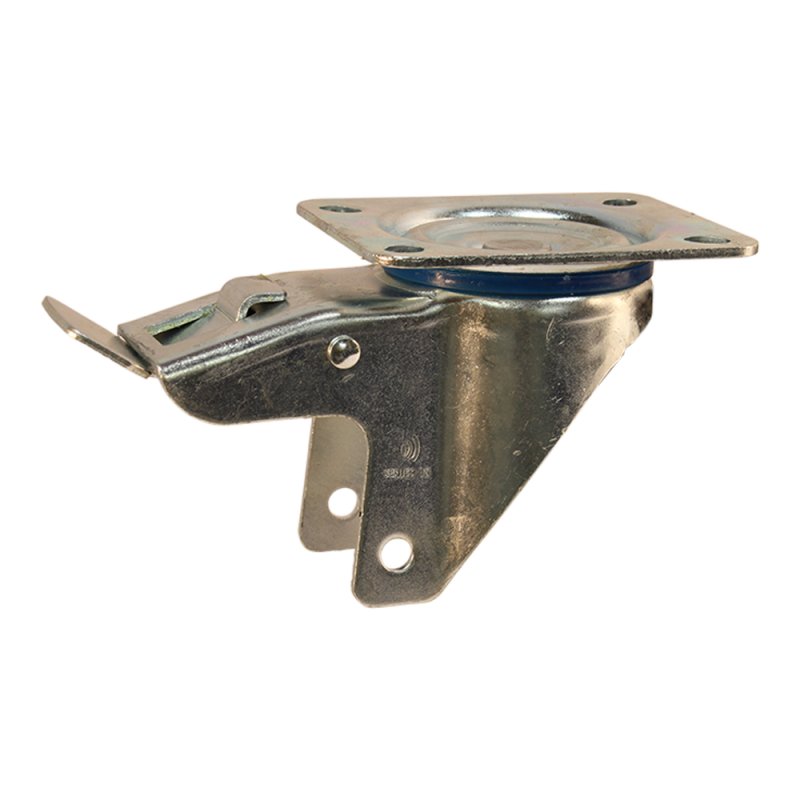

swivel castor with brake 100mm serie 19 ᠆ 15 plate mounting ball bearing

Reference : 219.106.156.500

Brand Novio Application Transportwheels Industry Agriculture and horticulture Food industry and industrial kitchens Industry and internal logistics Retail Wheel type swivel castor Wheel diameter 100 mm Fork mounting plate mounting Bearing type ball bearing Brake type double brake overrun Tread material rubber / TPE Overall height 128 mm Maximum load capacity 70 kg width 32 mm rim PP rim colour silver grey RAL 7001 diameter axle bore 8,2 mm diameter axle bore fork 8,2 mm hub length mm 40 mm hub-…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Agriculture et horticulture Industrie alimentaire et restauration collective Industrie et logistique interne Vente au détail
Application	Roue de transport
width	32 mm
Wheel type	roulette pivotante
Bearing type	roulement à billes
Maximum load capacity	70 kg
Wheel diameter	100 mm
offset	38 +/-0,05 mm
Tread material	caoutchouc / TPE
rim	PP
Overall height	128 mm
hub length mm	40 mm
Fork mounting	fixation platine
rim colour	gris argent RAL 7001
material fork	métal
Brake type	frein double arrière
dimension fixing	100x85 / 77/80x55/60 / Ø9 mm
diameter axle bore fork	8,2 mm
hub-to-fork length	42 +2,0 mm
tire	TPE
tire colour	gris graphite RAL 7024
tolerance hardness	+/-3
hardness Shore A	82 Shore A
diameter axle bore	8,2 mm
colour support/housing	zingué
