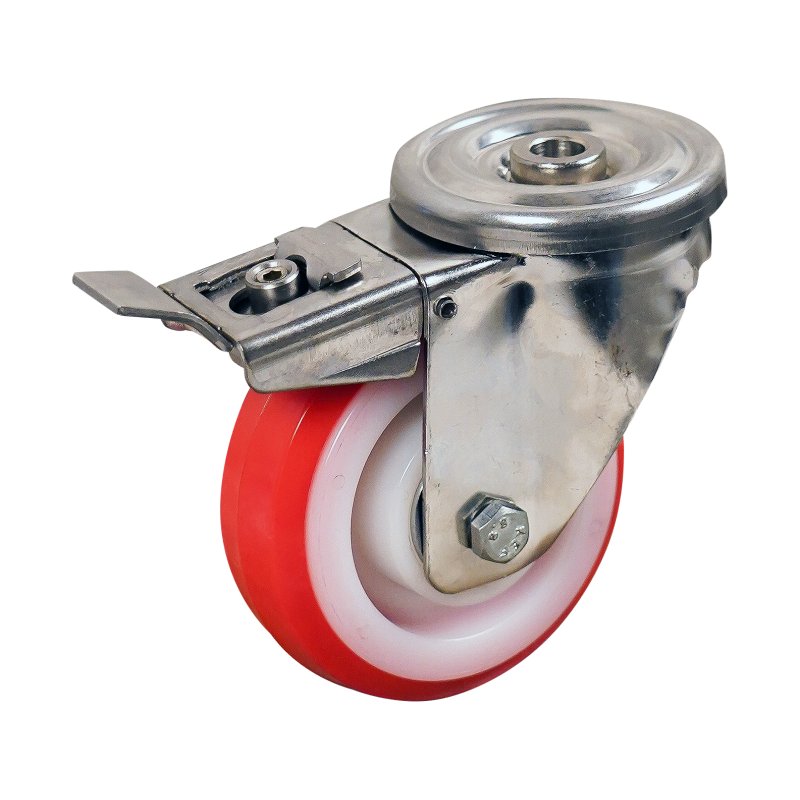

swivel castor with brake 100mm series 27 ᠆ 31 bolt hole Stainless steel ball bearing

Reference : 227.108.310.500

Brand Novio Application Transportwheels Wheel type swivel castor Wheel diameter 100 mm Fork mounting bolt hole Bearing type stainless steel ball bearing Brake type double brake overrun Tread material PU / TPU Overall height 124 mm Maximum load capacity 120 kg width 35 mm rim PA rim colour natural diameter axle bore fork 8 mm hub length mm 40 mm hub-to-fork length 42 mm offset 38 mm material fork SS AISI 304 dimension fixing 12 mm tire TPU tire colour orange tyre hardness Shore A 97 Shore A tole…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Application	Roue de transport
width	35 mm
Wheel type	roulette pivotante
Bearing type	roulement à billes en inox
Maximum load capacity	120 kg
Wheel diameter	100 mm
offset	38 mm
Tread material	PU / TPU
rim	PA
Overall height	124 mm
hub length mm	40 mm
Fork mounting	trou de boulon
rim colour	naturel
material fork	inox 304
Brake type	frein double arrière
dimension fixing	12 mm
diameter axle bore fork	8 mm
hub-to-fork length	42 mm
tire	TPU
tire colour	pneu orange
tolerance hardness	+/-3
hardness Shore A	97 Shore A
outside diameter	Ø35 mm
bore diameter	Ø15 mm
bearing width	11 mm
