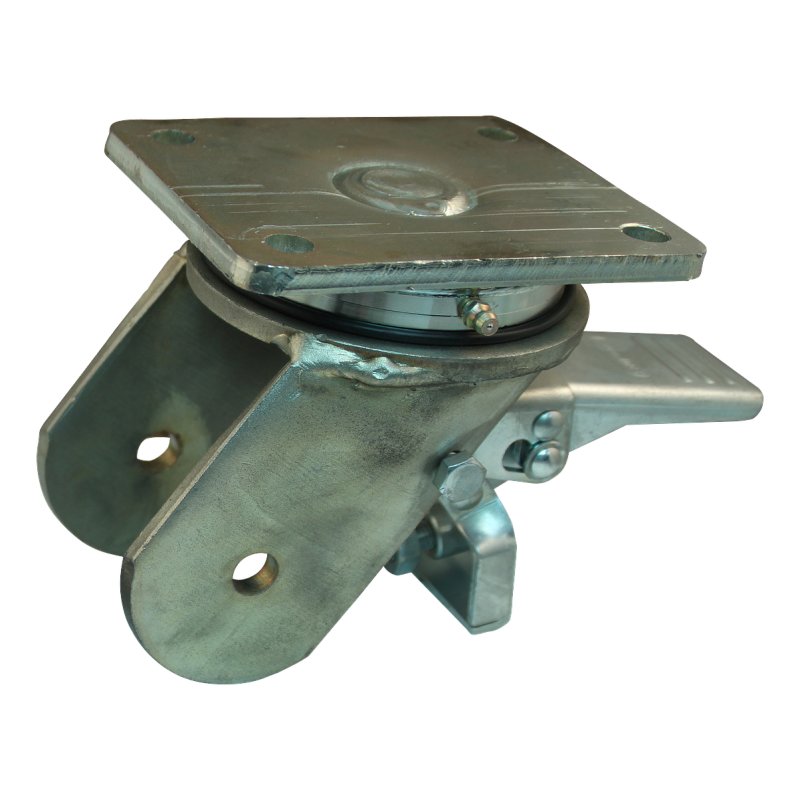

swivel castor with brake 100mm serie 33 ᠆ 22 plate mounting ball bearing

Reference : 233.106.226.350

Brand Novio Application Heavy duty wheels Transportwheels Industry Industry and internal logistics Wheel type swivel castor Wheel diameter 100 mm Fork mounting plate mounting Bearing type ball bearing Brake type double brake front Tread material plastic Overall height 147 mm Maximum load capacity 500 kg width 50 mm rim PA rim colour natural diameter axle bore fork 12,5 mm hub length mm 60 mm hub-to-fork length 62 mm offset 43 mm colour support/housing zinc plated material fork steel dimension f…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie et logistique interne
Application	Roulettes fortes charges Roue de transport
width	50 mm
Wheel type	roulette pivotante
Bearing type	roulement à billes
Maximum load capacity	500 kg
Wheel diameter	100 mm
offset	43 mm

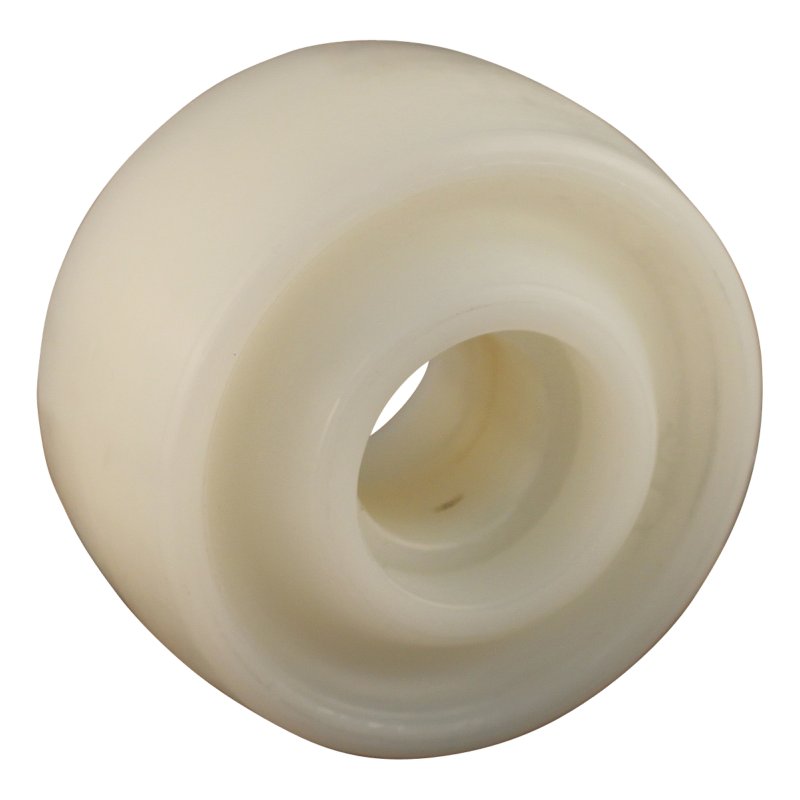

Tread material	plastique
rim	PA
Overall height	147 mm
hub length mm	60 mm
Fork mounting	fixation platine
rim colour	naturel
material fork	métal
Brake type	frein double avant
dimension fixing	110x140 / 80x105 / Ø13 mm
diameter axle bore fork	12,5 mm
hub-to-fork length	62 mm
colour support/housing	zingué
outside diameter	42 mm
bore diameter	20 mm
bearing width	12 mm

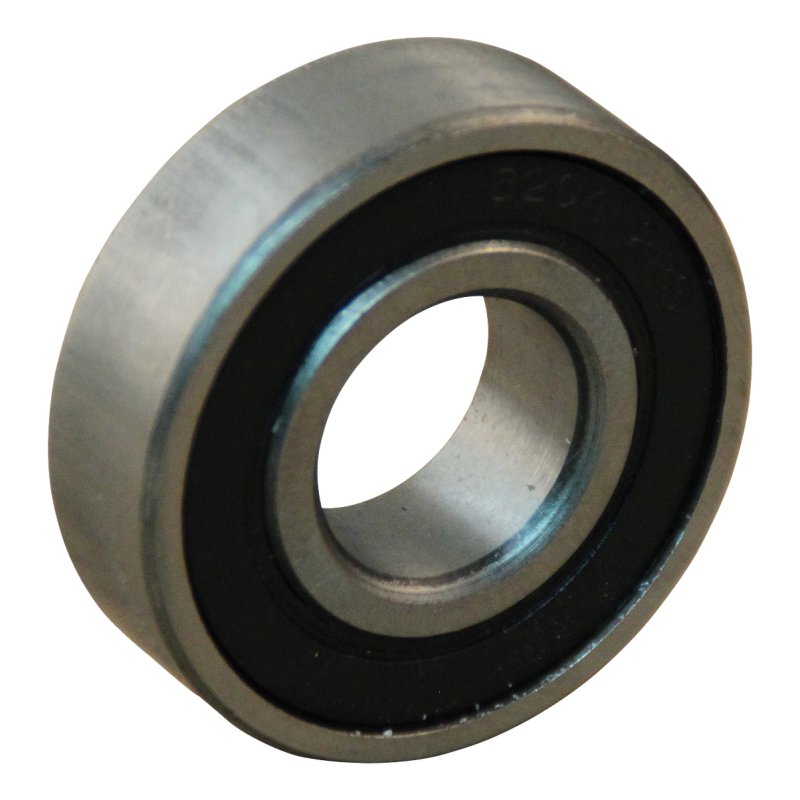

bearing type	6004 2RS C3
