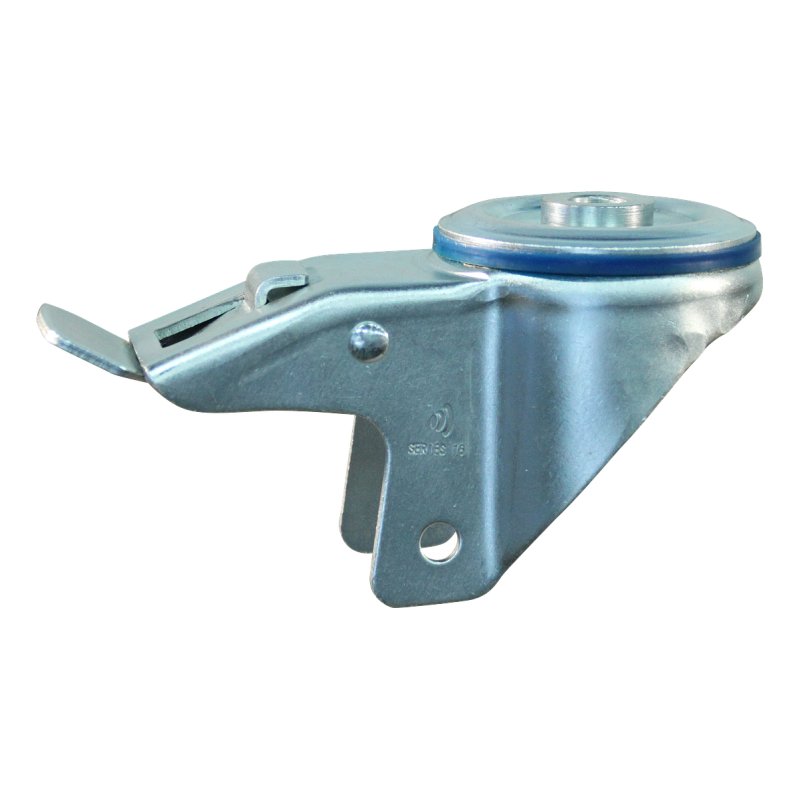

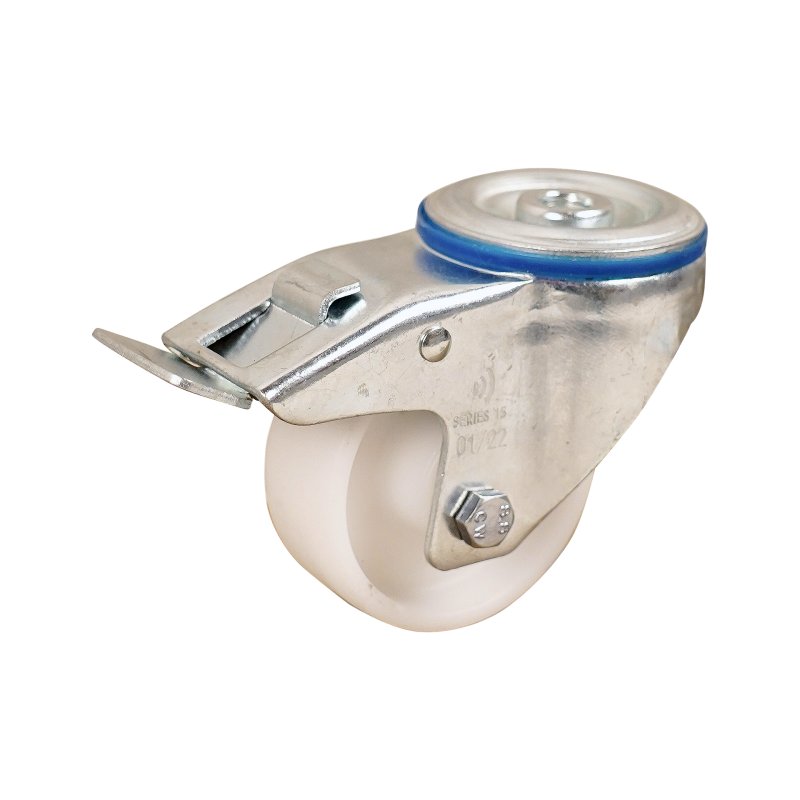

swivel castor with brake 100mm serie 34 ᠆ 15 pin plain bore

Reference : 234.101.155.520

Brand Novio Application Transportwheels Industry Food industry and industrial kitchens Industry and internal logistics Wheel type swivel castor Wheel diameter 100 mm Fork mounting pin Bearing type plain bearing Brake type double brake overrun Tread material plastic Overall height 125 mm Maximum load capacity 150 kg width 35 mm rim PP rim colour natural diameter axle bore 12 mm diameter axle bore fork 8,2 mm hub length mm 40 mm hub-to-fork length 42 +2,0 mm offset 38 +/-0,5 mm colour support/hou…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie alimentaire et restauration collective Industrie et logistique interne
Application	Roue de transport
width	35 mm
Wheel type	roulette pivotante
Bearing type	palier lisse
Maximum load capacity	150 kg
Wheel diameter	100 mm
offset	38 +/-0,5 mm
Tread material	plastique
rim	PP
Overall height	125 mm
hub length mm	40 mm
Fork mounting	axe
rim colour	naturel
material fork	métal
Brake type	frein double arrière
dimension fixing	12,5 mm
diameter axle bore fork	8,2 mm
hub-to-fork length	42 +2,0 mm
diameter axle bore	12 mm
colour support/housing	zingué
