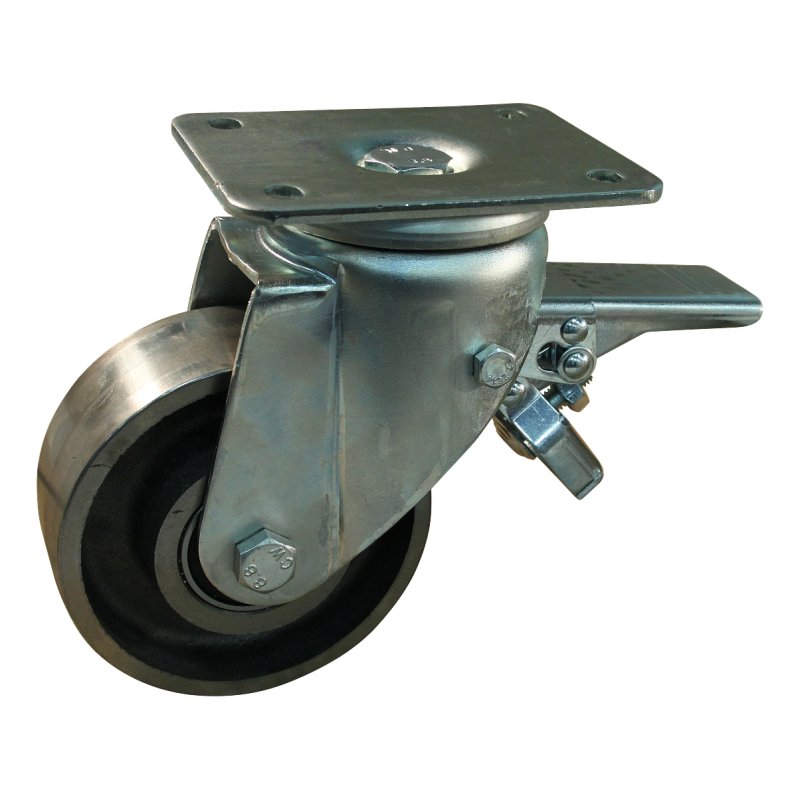

swivel castor with brake 100mm serie 45 ᠆ 32 plate mounting ball bearing

Reference : 245.106.196.335

Brand Novio Application Transportwheels Industry Industry and internal logistics Wheel type swivel castor Wheel diameter 100 mm Fork mounting plate mounting Bearing type ball bearing Brake type double brake front Tread material cast iron / steel Overall height 134.5 mm Maximum load capacity 300 kg width 35 mm rim cast iron diameter axle bore fork 8 mm hub length mm 35 mm hub-to-fork length 39 mm offset 39 mm colour support/housing zinc plated material fork steel dimension fixing 85x105 / 60x80 …

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie et logistique interne
Application	Roue de transport
width	35 mm
Wheel type	roulette pivotante
Bearing type	roulement à billes
Maximum load capacity	300 kg
Wheel diameter	100 mm
offset	39 mm
Tread material	fonte / acier
rim	fonte
Overall height	134,5 mm
hub length mm	35 mm
Fork mounting	fixation platine
material fork	métal
Brake type	frein double avant
dimension fixing	85x105 / 60x80 / Ø9 mm
diameter axle bore fork	8 mm
hub-to-fork length	39 mm
colour support/housing	zingué
outside diameter	35 mm
bore diameter	15 mm
bearing width	11 mm

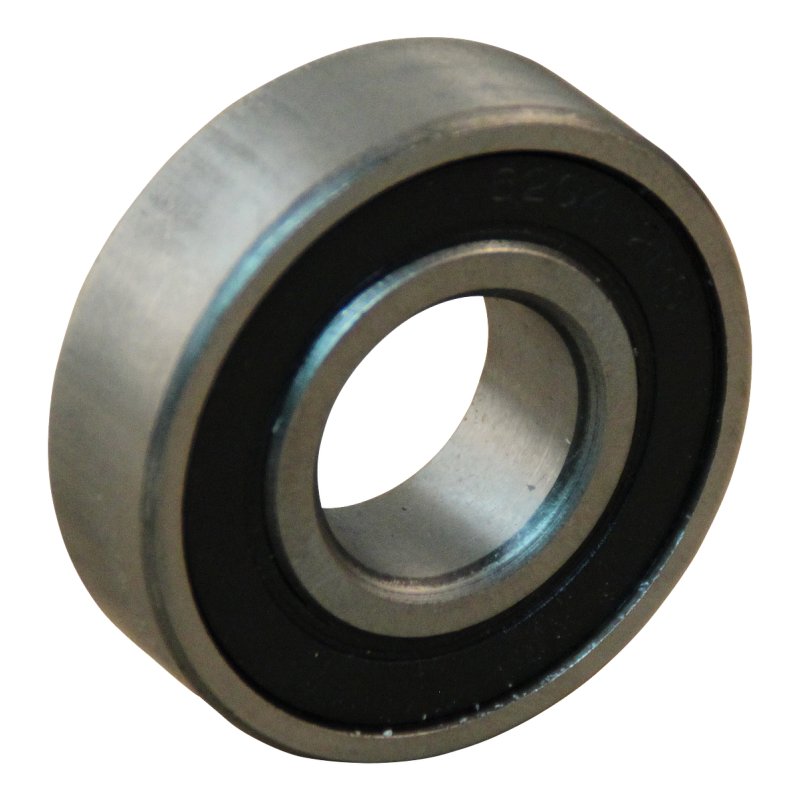

bearing type	6202 2RS C3
