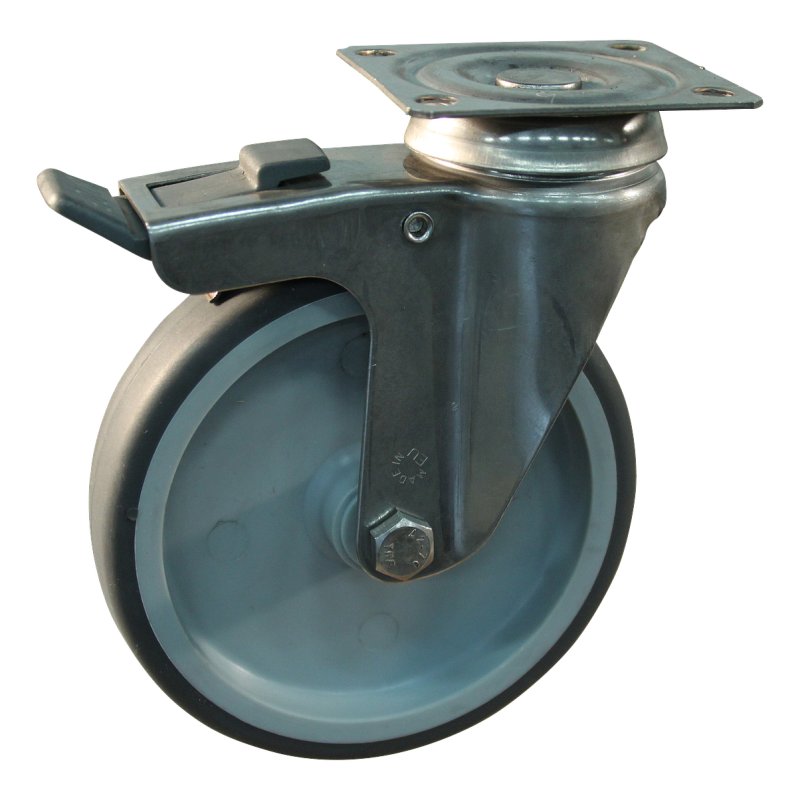

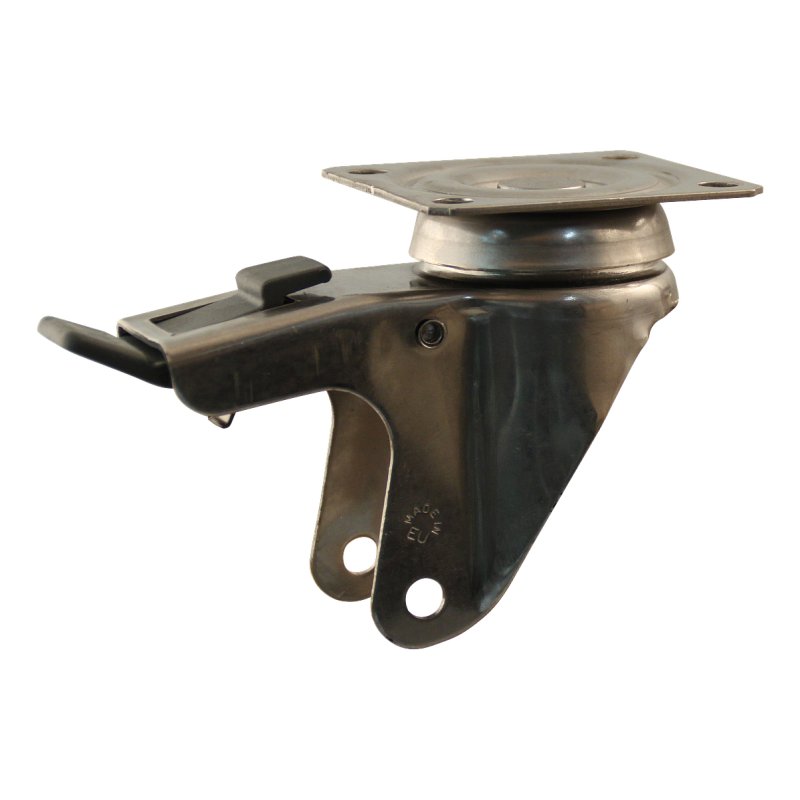

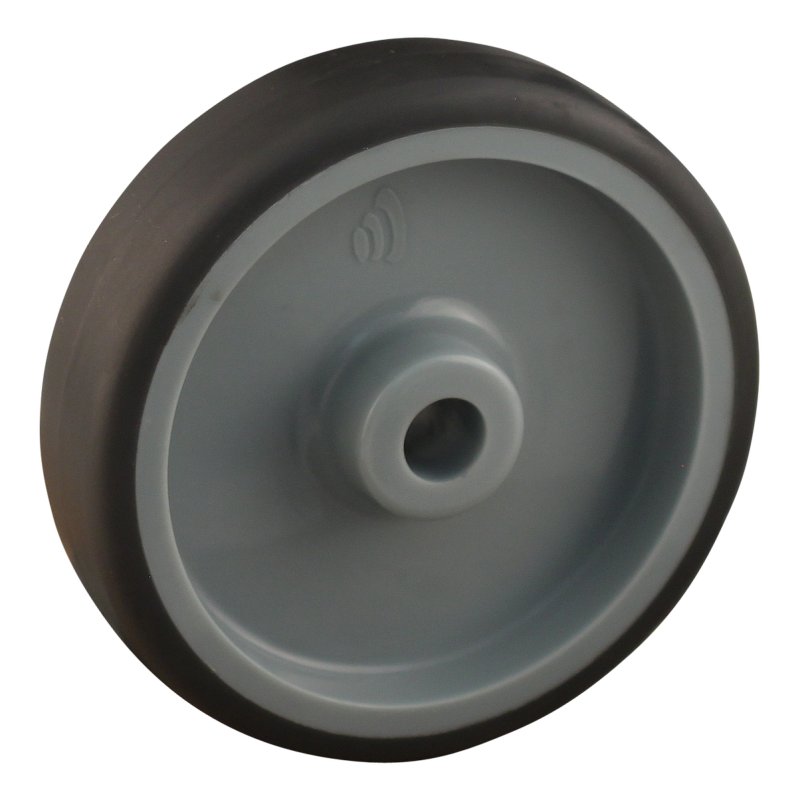

swivel castor with brake 100mm serie 68 ᠆ 37 plate mounting plain bore

Reference : 468.101.376.300

Brand Novio Application Equipment wheels Medical equipment Industry Food industry and industrial kitchens Healthcare Wheel type swivel castor Wheel diameter 100 mm Fork mounting plate mounting Bearing type plain bearing Brake type double brake overrun Tread material rubber / TPE Overall height 134 mm Maximum load capacity 80 kg width 25 mm rim PP rim colour silver grey RAL 7001 diameter axle bore 12.1 mm hub length mm 28 mm offset 36 mm material fork SS dimension fixing 76x70 / 60x50 / Ø8,3 mm …

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie alimentaire et restauration collective Soins de santé
Application	Roue d'appareil Appareils médicaux
width	25 mm
Wheel type	roulette pivotante
Bearing type	palier lisse
Maximum load capacity	80 kg
Wheel diameter	100 mm
offset	36 mm
Tread material	caoutchouc / TPE
rim	PP
Overall height	134 mm
hub length mm	28 mm
Fork mounting	fixation platine
rim colour	gris argent RAL 7001
material fork	inox
Brake type	frein double arrière
dimension fixing	76x70 / 60x50 / Ø8,3 mm
tire	TPR
tire colour	gris ardoise RAL 7015
tolerance hardness	+/-5
hardness Shore A	70 Shore A
diameter axle bore	12,1 mm
