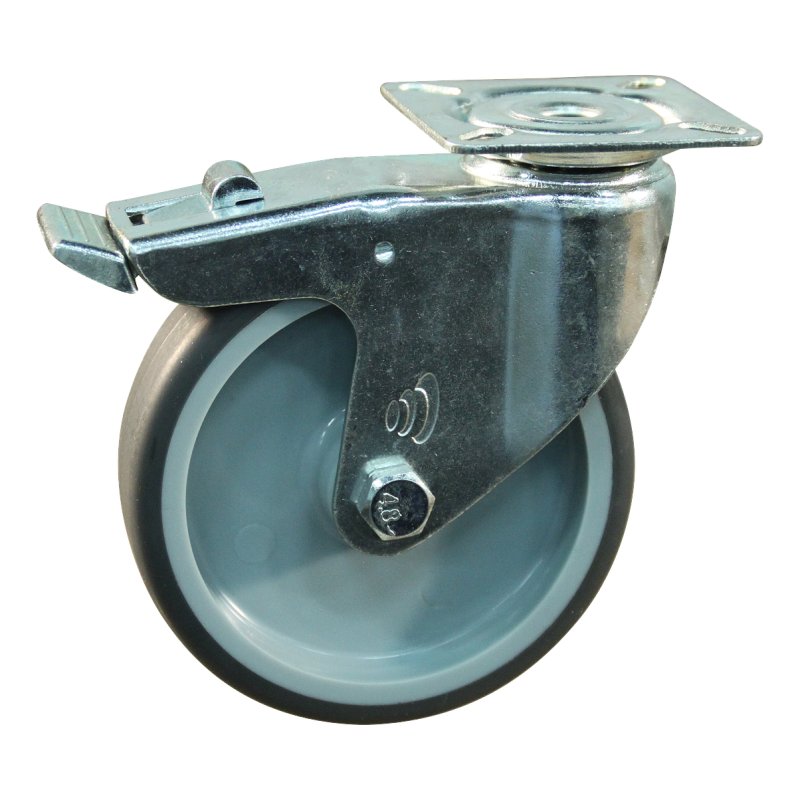

swivel castor with brake 100mm series 68-60 plate mounting plain bore

Reference : 468.101.606.300

Brand Novio Application Equipment wheels Medical equipment Medical furniture Industry Healthcare Retail Wheel type swivel castor Wheel diameter 100 mm Fork mounting plate mounting Bearing type plain bearing Brake type double brake overrun Tread material rubber / TPE Overall height 121 mm Maximum load capacity 70 kg width 24 mm rim PP rim colour silver grey RAL 7001 offset 35 +/-1 mm colour support/housing zinc plated material fork steel dimension fixing 60x60 / 47,65x47,65 / 38,17x38,17 / Ø6,3-…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Soins de santé Vente au détail
Application	Roue d'appareil Appareils médicaux Mobilier médical
width	24 mm
Wheel type	roulette pivotante
Bearing type	palier lisse
Maximum load capacity	70 kg
Wheel diameter	100 mm
offset	35 +/-1 mm
Tread material	caoutchouc / TPE
rim	PP
Overall height	121 mm
Fork mounting	fixation platine
rim colour	gris argent RAL 7001
material fork	métal
Brake type	frein double arrière
dimension fixing	60x60 / 47,65x47,65 / 38,17x38,17 / Ø6,3-12 mm
tire	TPE
tire colour	gris ardoise RAL 7015
tolerance hardness	+/-5
hardness Shore A	70 Shore A
colour support/housing	zingué
load capacity	70 kg
logo	logo Protempo sur la fourche
