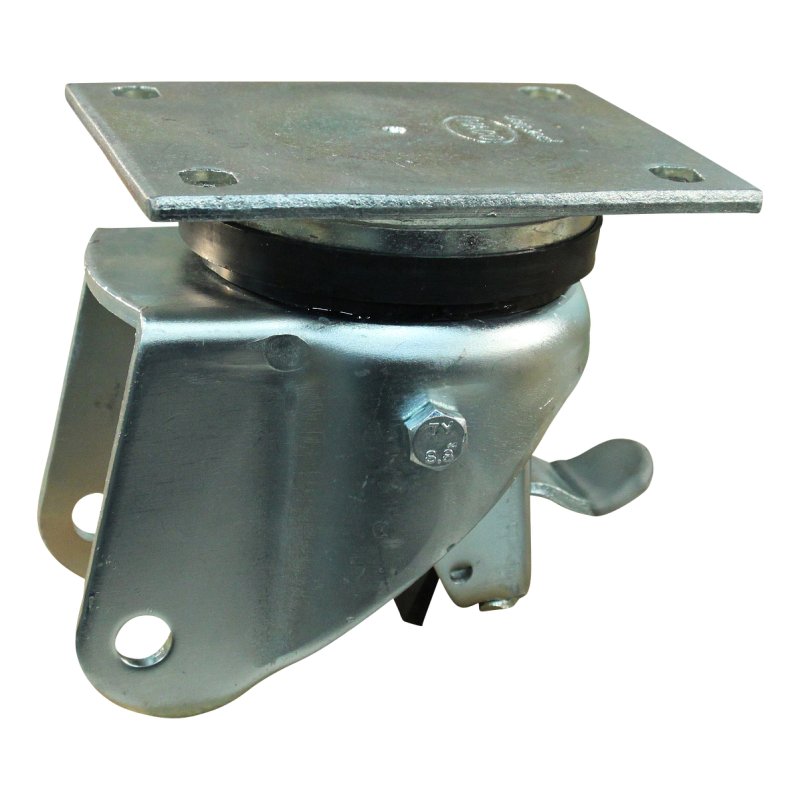

swivel castor with brake 125mm serie 20 ᠆ 14 plate mounting ball bearing

Reference : 220.126.146.646

Brand Novio Application Transportwheels Industry Food industry and industrial kitchens Industry and internal logistics Wheel type swivel castor Wheel diameter 125 mm Fork mounting plate mounting Bearing type ball bearing Brake type single brake Tread material PU / TPU Overall height 170.5 mm Maximum load capacity 400 kg width 46 mm rim PA, anti-static rim colour silver grey RAL 7001 diameter axle bore fork 12,2 mm hub length mm 50 mm hub-to-fork length 60 mm offset 57 mm colour support/housing …

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie alimentaire et restauration collective Industrie et logistique interne
Application	Roue de transport
width	46 mm
Wheel type	roulette pivotante
Bearing type	roulement à billes
Maximum load capacity	400 kg
Wheel diameter	125 mm
offset	57 mm
Tread material	PU / TPU
rim	PA, antistatique
Overall height	170,5 mm
hub length mm	50 mm
Fork mounting	fixation platine
rim colour	gris argent RAL 7001
material fork	métal
Brake type	frein simple
dimension fixing	135x105 / 105x75/80 / Ø11 mm
diameter axle bore fork	12,2 mm
hub-to-fork length	60 mm
tire	TPU, antistatique
tire colour	gris graphite RAL 7024
tolerance hardness	+/-5
hardness Shore A	90 Shore A
colour support/housing	zingué
