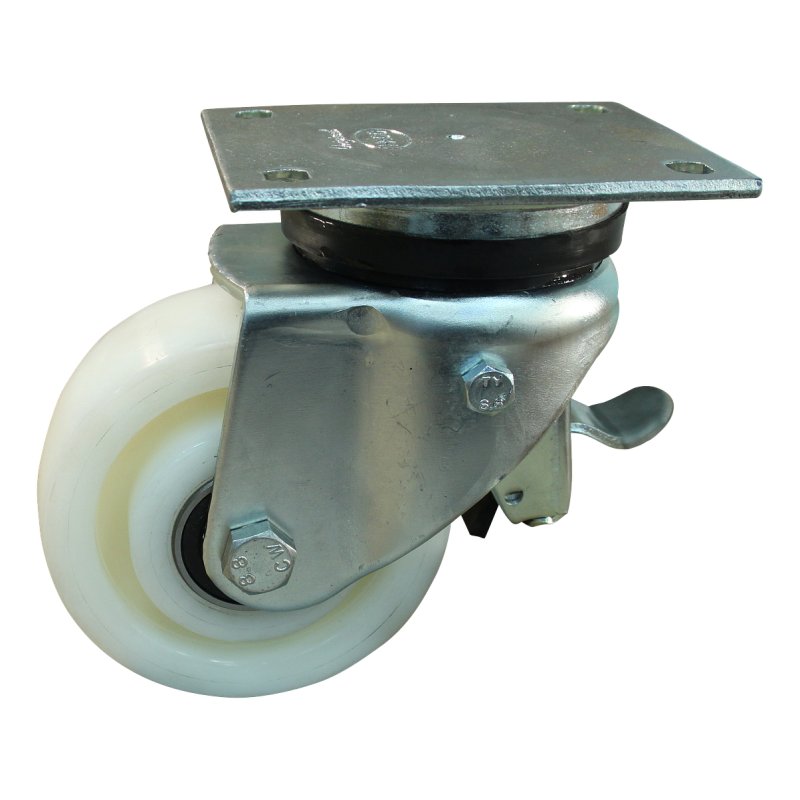

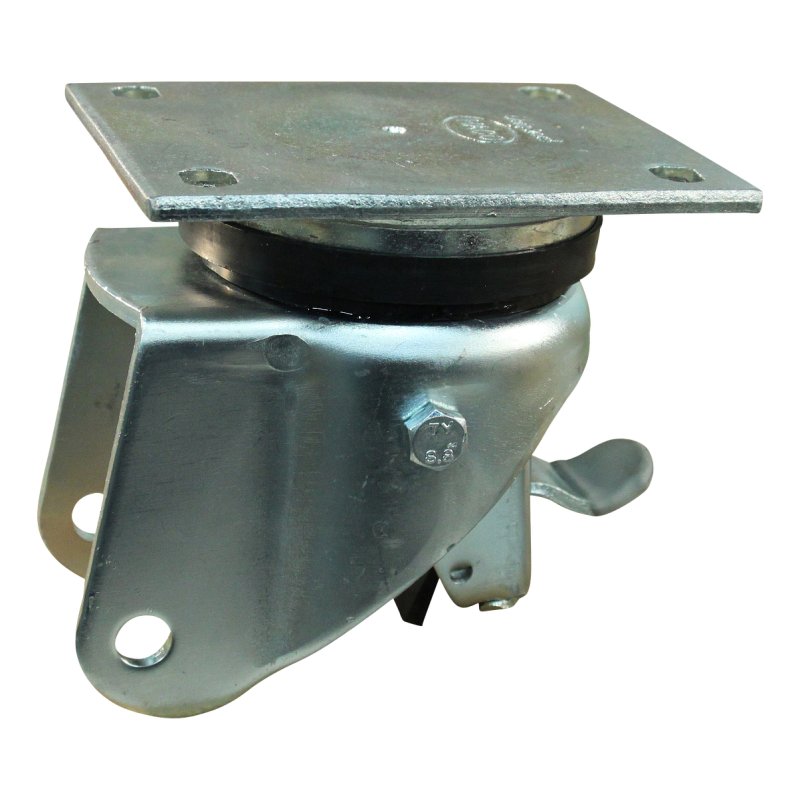

swivel castor with brake 125mm serie 33 ᠆ 14 plate mounting ball bearing

Reference : 233.126.146.650

Brand Novio Application Heavy duty wheels Transportwheels Industry Agriculture and horticulture Industry and internal logistics dimension M12x1,75 mm Wheel type swivel castor Wheel diameter 125 mm Fork mounting plate mounting Bearing type ball bearing Brake type single brake Tread material plastic Overall height 171 mm Maximum load capacity 700 kg width 50 mm rim PA rim colour natural diameter axle bore fork 12,2 mm hub length mm 60 mm hub-to-fork length 60 mm offset 57 mm colour support/housin…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Agriculture et horticulture Industrie et logistique interne
Application	Roulettes fortes charges Roue de transport
width	50 mm
Wheel type	roulette pivotante
Bearing type	roulement à billes
Maximum load capacity	700 kg
Wheel diameter	125 mm
offset	57 mm
Tread material	plastique
rim	PA
Overall height	171 mm
hub length mm	60 mm
Fork mounting	fixation platine
rim colour	naturel
material fork	métal
Brake type	frein simple
dimension fixing	135x105 / 105x75/80 / Ø11 mm
diameter axle bore fork	12,2 mm
hub-to-fork length	60 mm
colour support/housing	zingué
dimension	M12x1,75 mm
outside diameter	47 mm
bore diameter	20 mm
bearing width	14 mm
