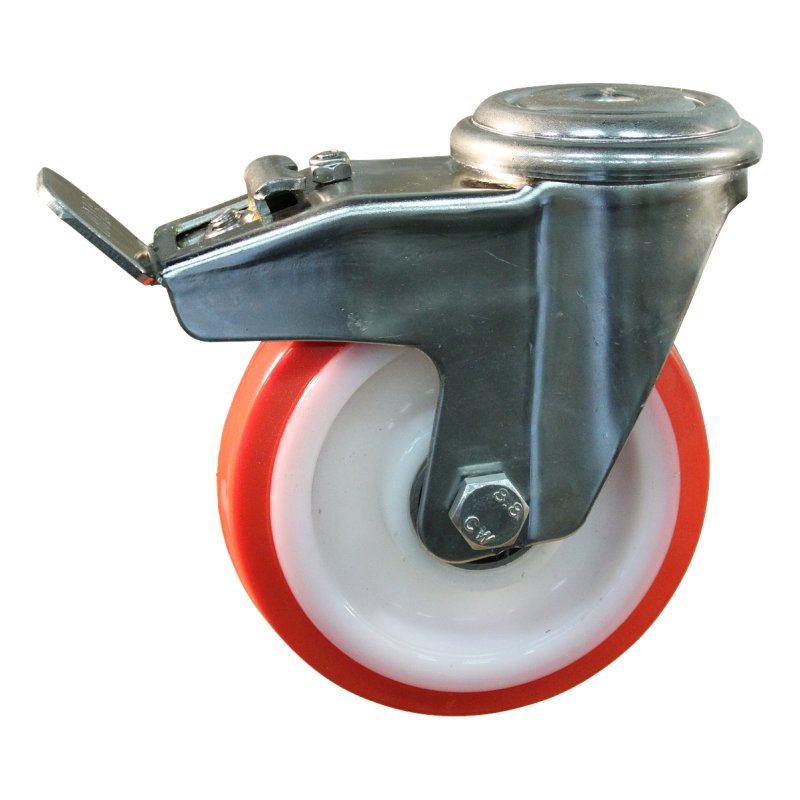

swivel castor with brake 150mm series 27 ᠆ 31 bolt hole Stainless steel ball bearing

Reference : 227.158.310.500

Brand Novio Application Transportwheels Industry Food industry and industrial kitchens Industry and internal logistics Wheel type swivel castor Wheel diameter 150 mm Fork mounting bolt hole Bearing type stainless steel ball bearing Brake type double brake overrun Tread material PU / TPU Overall height 188 mm Maximum load capacity 300 kg width 40 mm rim PA rim colour natural diameter axle bore fork 16 mm hub length mm 60 mm hub-to-fork length 62 mm offset 55 mm material fork SS AISI 304 dimensio…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie alimentaire et restauration collective Industrie et logistique interne
Application	Roue de transport
width	40 mm
Wheel type	roulette pivotante
Bearing type	roulement à billes en inox
Maximum load capacity	300 kg
Wheel diameter	150 mm
offset	55 mm

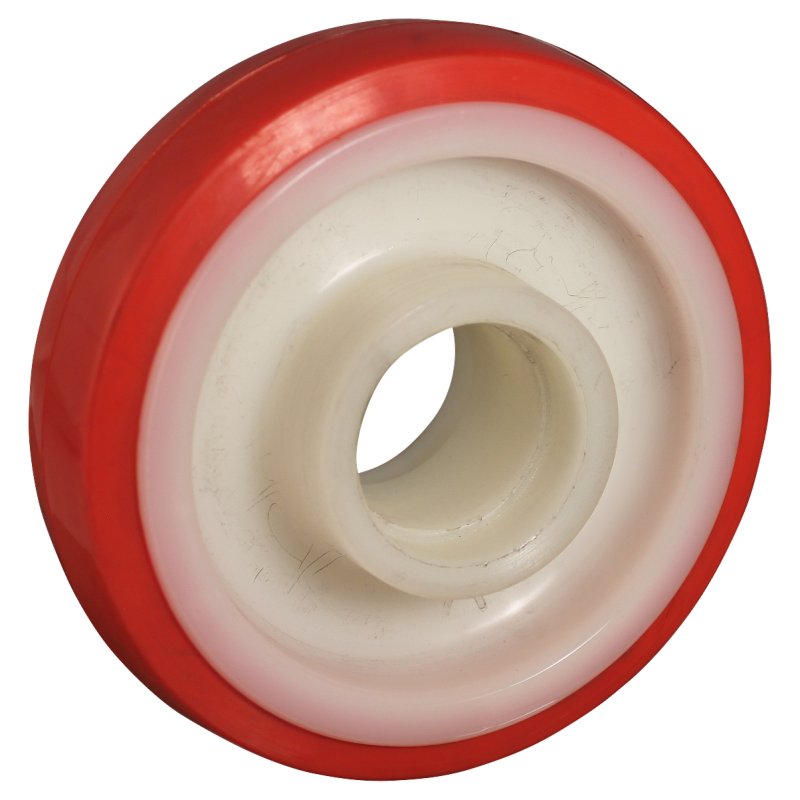

Tread material	PU / TPU
rim	PA
Overall height	188 mm
hub length mm	60 mm
Fork mounting	trou de boulon
rim colour	naturel

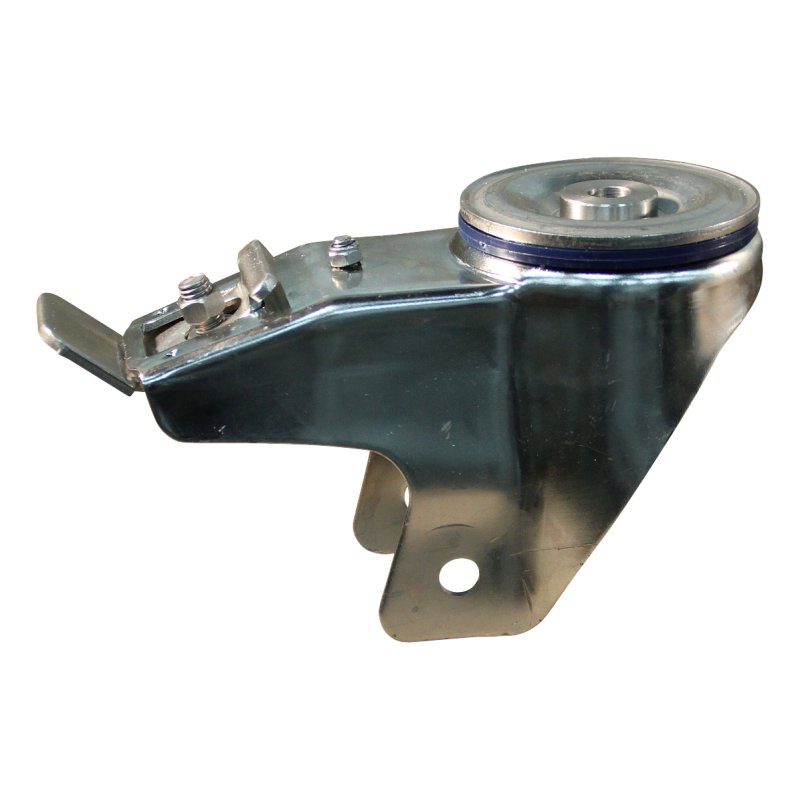

material fork	inox 304
Brake type	frein double arrière
dimension fixing	16 mm
diameter axle bore fork	16 mm
hub-to-fork length	62 mm
tire	TPU
tire colour	pneu orange
tolerance hardness	+/-3
hardness Shore A	97 Shore A

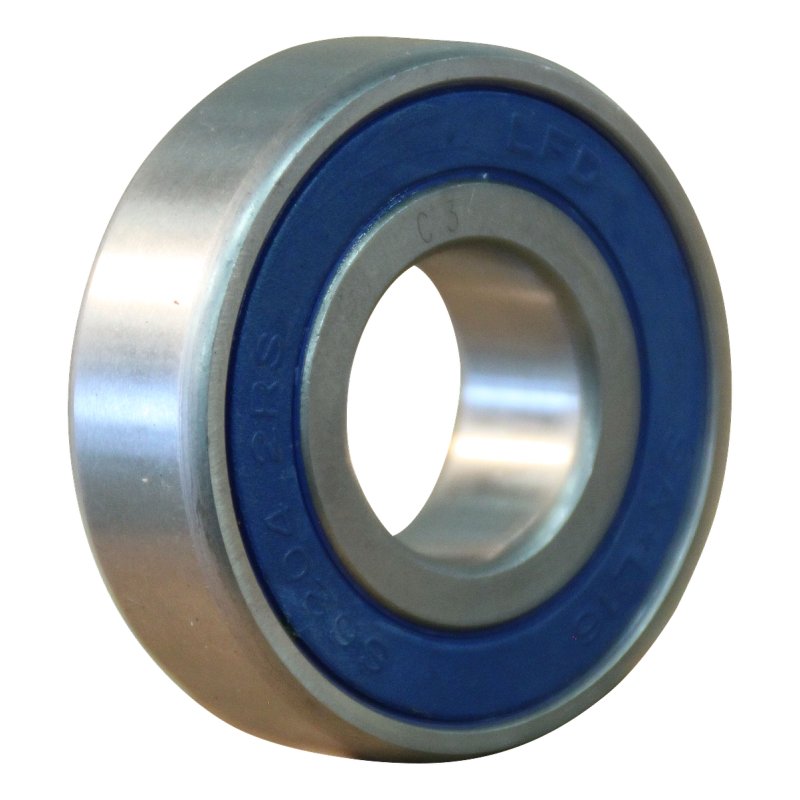

outside diameter	47 mm
bore diameter	20 mm
bearing width	14 mm
