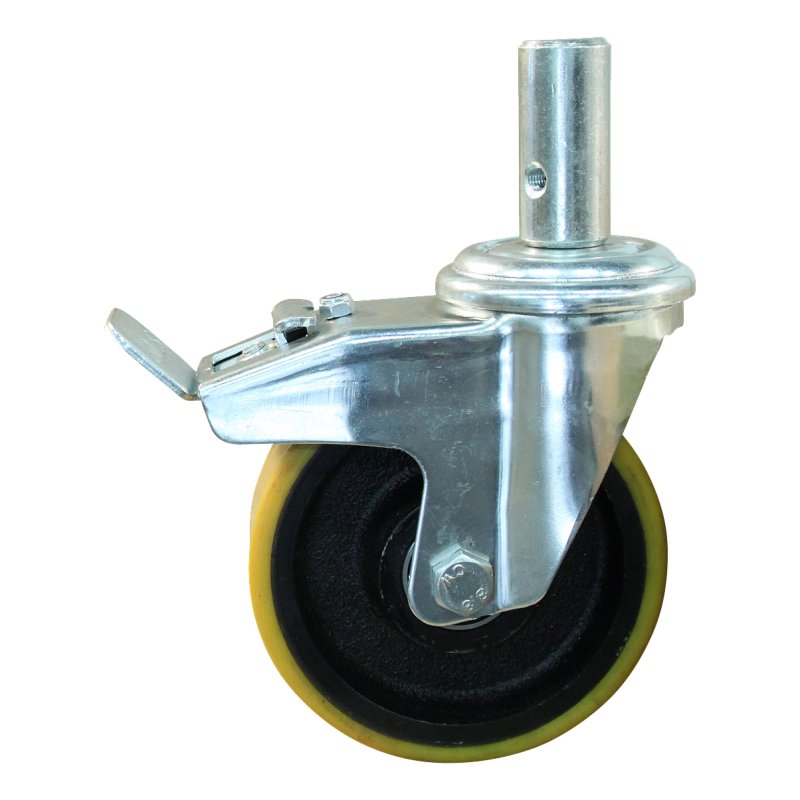

swivel castor with brake 150mm series 28 ᠆ 91 pin ball bearing

Reference : 228.156.915.527

Brand Novio Application Transportwheels Industry Industry and internal logistics Wheel type swivel castor Wheel diameter 150 mm Fork mounting pin Bearing type ball bearing Brake type double brake overrun Tread material CPU Overall height 179 mm Maximum load capacity 180 kg width 40 mm rim cast iron rim colour jet black RAL 9005 diameter axle bore 25 mm diameter axle bore fork 10 mm hub length mm 60 mm hub-to-fork length 49 mm offset 38 mm colour support/housing zinc plated material fork steel d…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie et logistique interne
Application	Roue de transport
width	40 mm
Wheel type	roulette pivotante
Bearing type	roulement à billes
Maximum load capacity	180 kg
Wheel diameter	150 mm
offset	38 mm
Tread material	CPU
rim	fonte
Overall height	179 mm
hub length mm	60 mm
Fork mounting	axe
rim colour	noir foncé RAL 9005
material fork	métal
Brake type	frein double arrière
dimension fixing	12,5 mm
diameter axle bore fork	10 mm
hub-to-fork length	49 mm
tire	CPU
tire colour	jaune miel RAL 1005
tolerance hardness	+/-2
hardness Shore A	94 Shore A
diameter axle bore	25 mm
colour support/housing	zingué
