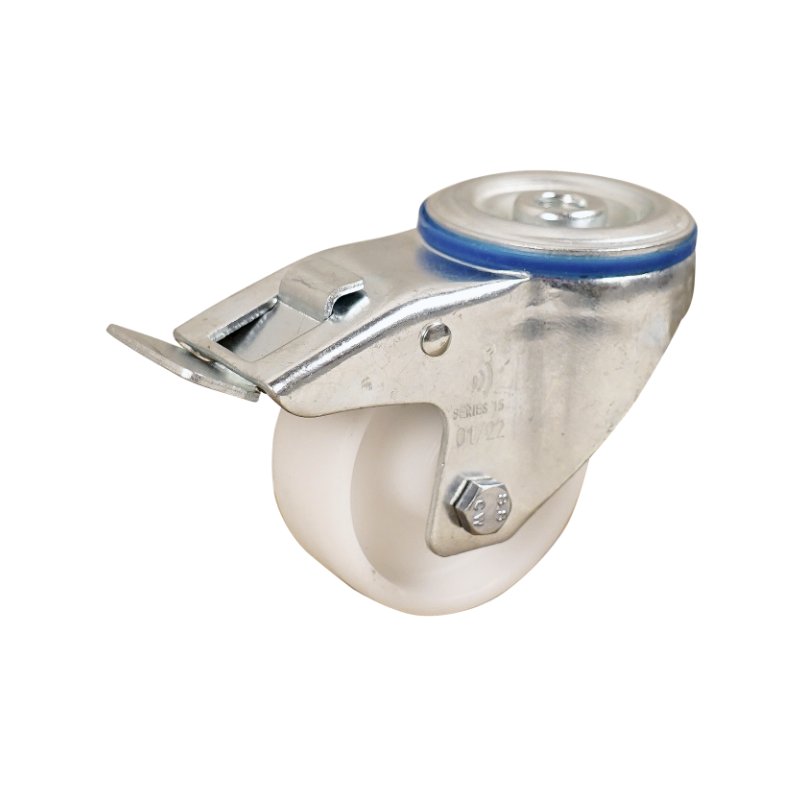

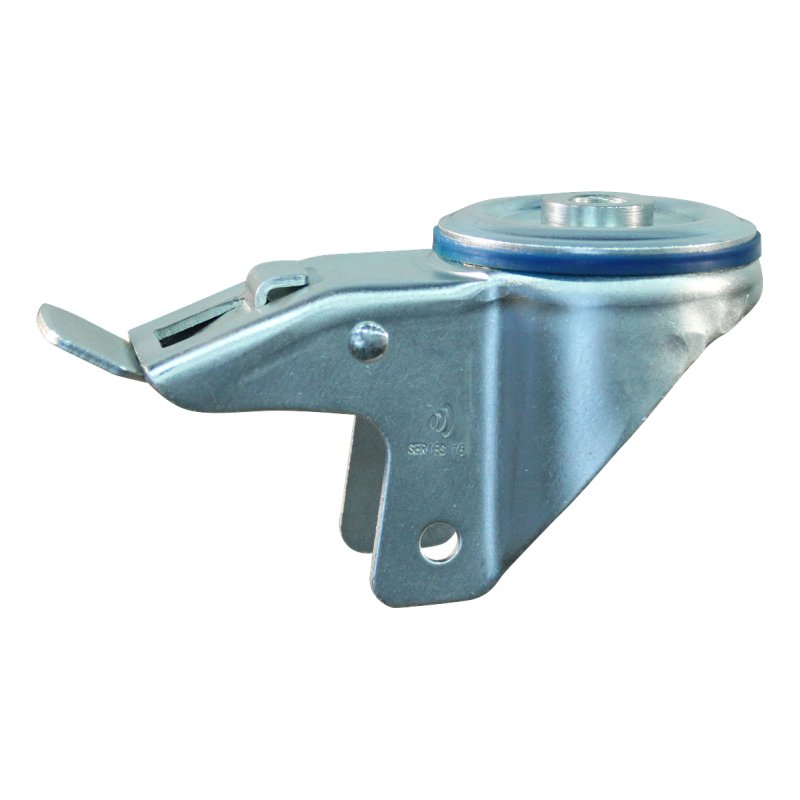

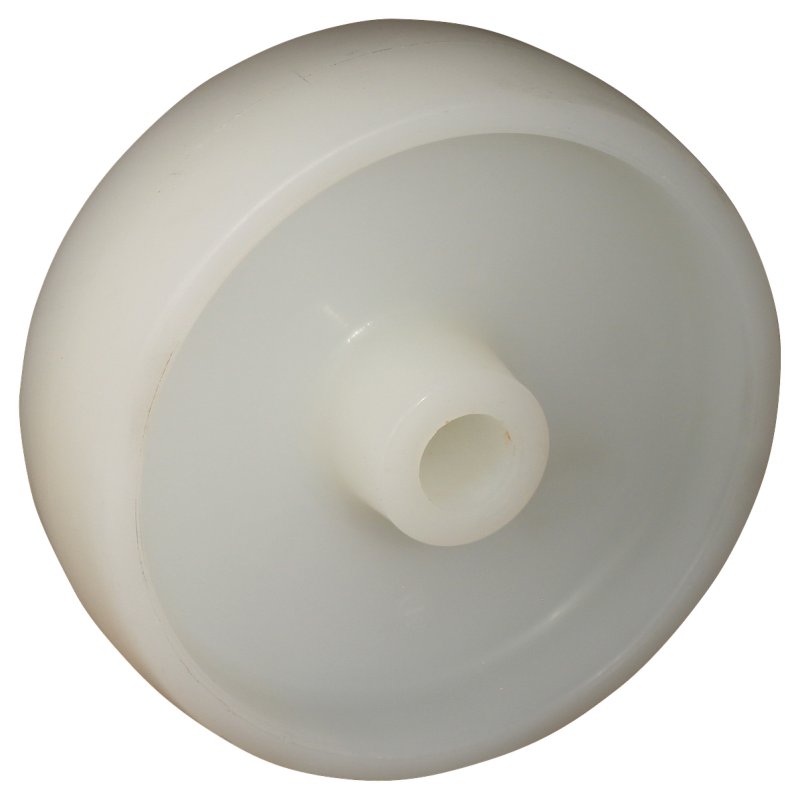

swivel castor with brake 150mm serie 34 ᠆ 15 pin plain bore

Reference : 234.151.155.527

Brand Novio Application Transportwheels Industry Food industry and industrial kitchens Industry and internal logistics Wheel type swivel castor Wheel diameter 150 mm Fork mounting pin Bearing type plain bearing Brake type double brake overrun Tread material plastic Overall height 185 mm Maximum load capacity 300 kg width 50 mm rim PA rim colour natural diameter axle bore 20,2 mm diameter axle bore fork 12,2 mm hub length mm 60 mm hub-to-fork length 62 +2,0 mm offset 58 +/-1,5 mm colour support/…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie alimentaire et restauration collective Industrie et logistique interne
Application	Roue de transport
width	50 mm
Wheel type	roulette pivotante
Bearing type	palier lisse
Maximum load capacity	300 kg
Wheel diameter	150 mm
offset	58 +/-1,5 mm
Tread material	plastique
rim	PA
Overall height	185 mm
hub length mm	60 mm
Fork mounting	axe
rim colour	naturel
material fork	métal
Brake type	frein double arrière
dimension fixing	Ø12,5 mm
diameter axle bore fork	12,2 mm
hub-to-fork length	62 +2,0 mm
diameter axle bore	20,2 mm
colour support/housing	zingué
