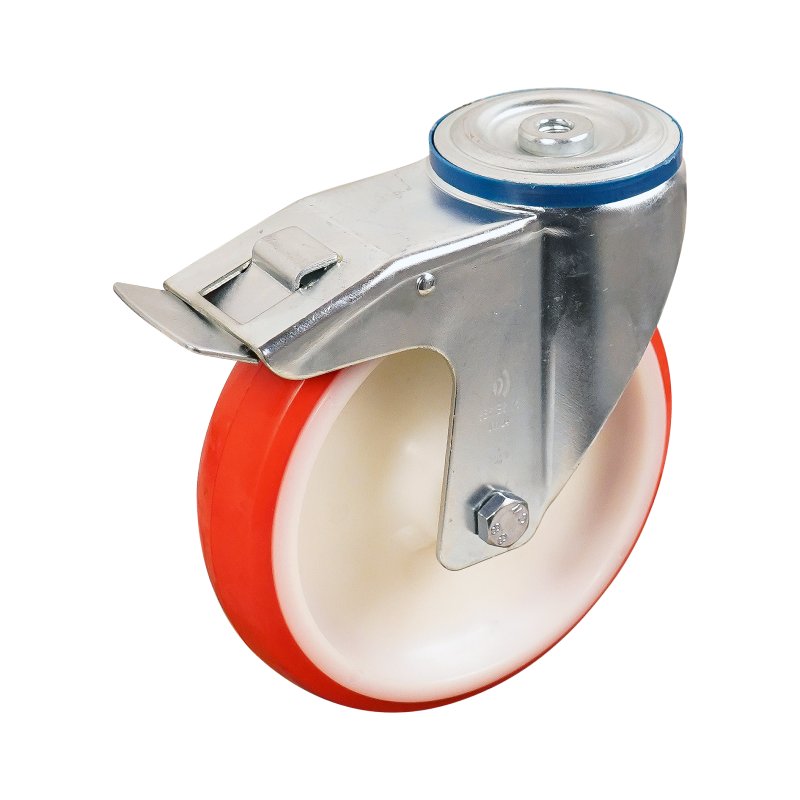

swivel castor with brake 175mm series 27 ᠆ 15 bolt hole roller bearing

Reference : 227.172.150.500

Brand Novio Application Transportwheels Industry Food industry and industrial kitchens Industry and internal logistics Wheel type swivel castor Wheel diameter 175 mm Fork mounting bolt hole Bearing type roller bearing Brake type double brake overrun Tread material PU / TPU Overall height 217.5 mm Maximum load capacity 200 kg width 45 mm rim PA rim colour natural diameter axle bore 20 mm diameter axle bore fork 12,2 mm hub length mm 58 mm hub-to-fork length 62 +2,0 mm offset 55 +/-0,5 mm colour …

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie alimentaire et restauration collective Industrie et logistique interne
Application	Roue de transport
width	45 mm
Wheel type	roulette pivotante
Bearing type	roulement à rouleaux
Maximum load capacity	200 kg
Wheel diameter	175 mm
offset	55 +/-0,5 mm
Tread material	PU / TPU
rim	PA
Overall height	217,5 mm
hub length mm	58 mm
Fork mounting	trou de boulon
rim colour	naturel
material fork	métal
Brake type	frein double arrière
dimension fixing	12,5 mm
diameter axle bore fork	12,2 mm
hub-to-fork length	62 +2,0 mm
tire	TPU
tire colour	pneu orange
tolerance hardness	+/-3
hardness Shore A	97 Shore A
diameter axle bore	20 mm
colour support/housing	zingué
