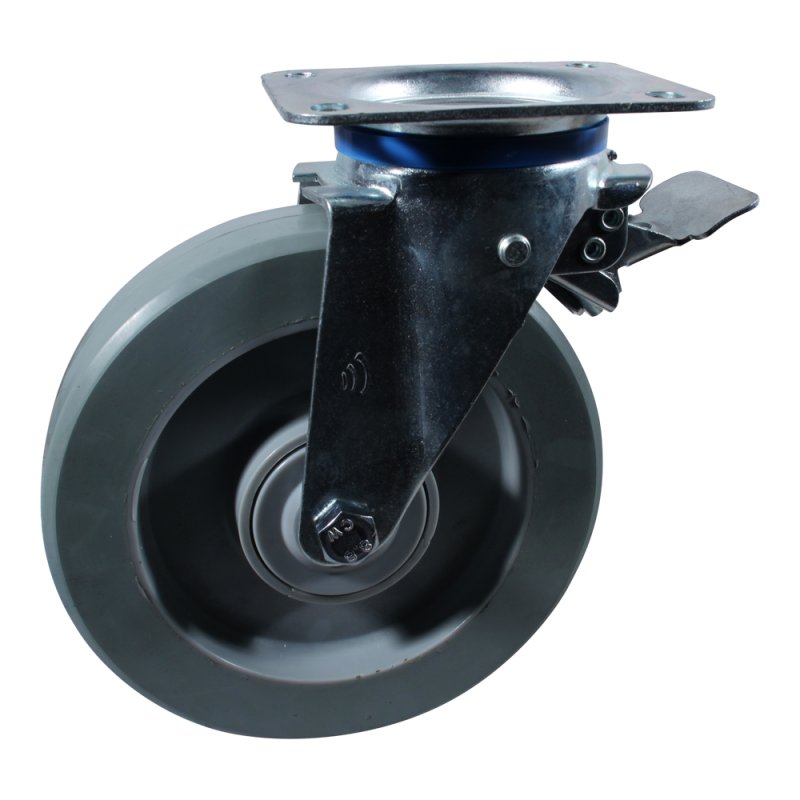

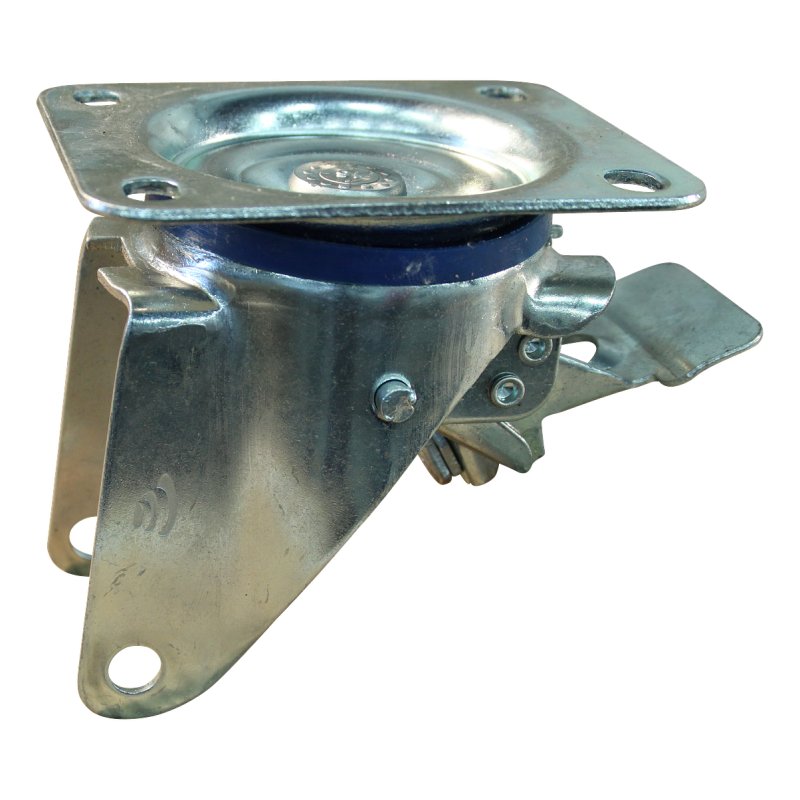

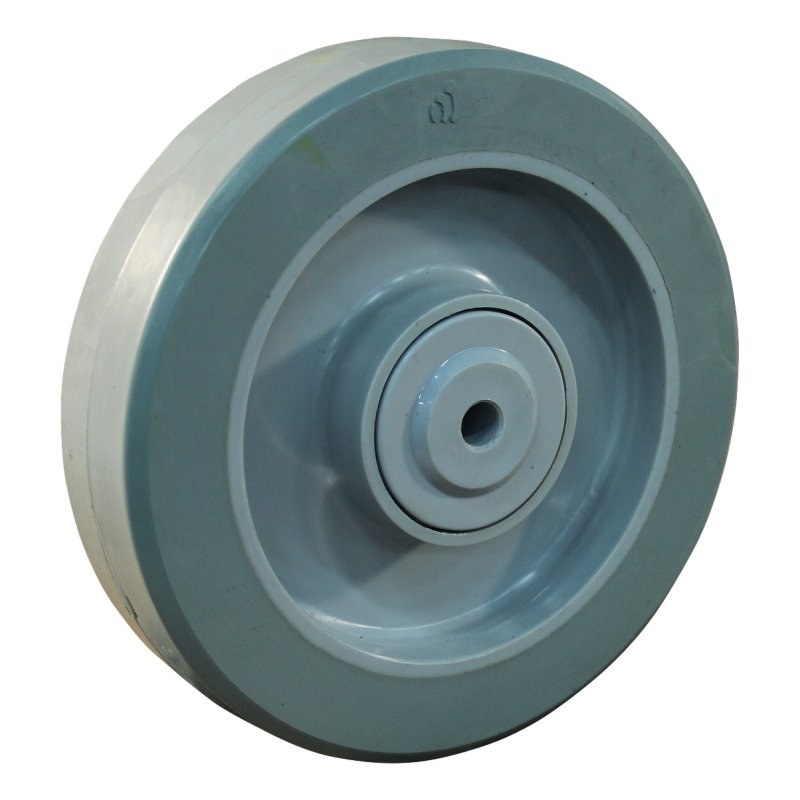

swivel castor with brake 200mm series 14 ᠆ 12 plaatbevestiging met uitsparing richtingvastzetter ball bearing

Reference : 214.206.127.301

Brand Novio Application Transportwheels Industry Food industry and industrial kitchens Industry and internal logistics dimension M12x1,75 mm Wheel type swivel castor Wheel diameter 200 mm Fork mounting plate mounting with recess for directional lock Bearing type ball bearing Brake type double brake front Tread material rubber / TPE Overall height 241 mm Maximum load capacity 205 kg width 48 mm rim PA rim colour silver grey RAL 7001 diameter axle bore 12 mm diameter axle bore fork 12,2 +/-1,0 mm…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie alimentaire et restauration collective Industrie et logistique interne
Application	Roue de transport
width	48 mm
Wheel type	roulette pivotante
Bearing type	roulement à billes
Maximum load capacity	205 kg
Wheel diameter	200 mm
offset	55 +/-1,0 mm
Tread material	caoutchouc / TPE
rim	PA
Overall height	241 mm
hub length mm	60 mm
Fork mounting	fixation sur platine avec encoche pour blocage directionnel
rim colour	gris argent RAL 7001
material fork	métal
Brake type	frein double avant
dimension fixing	135x110 / 105x75/80 / Ø11 mm
hub-to-fork length	63 +4,0/-0,0 mm
tire	caoutchouc souple
tire colour	gris argent RAL 7001
tolerance hardness	+/-3
hardness Shore A	70 Shore A
diameter axle bore	12 mm
colour support/housing	zingué
dimension	M12x1,75 mm
