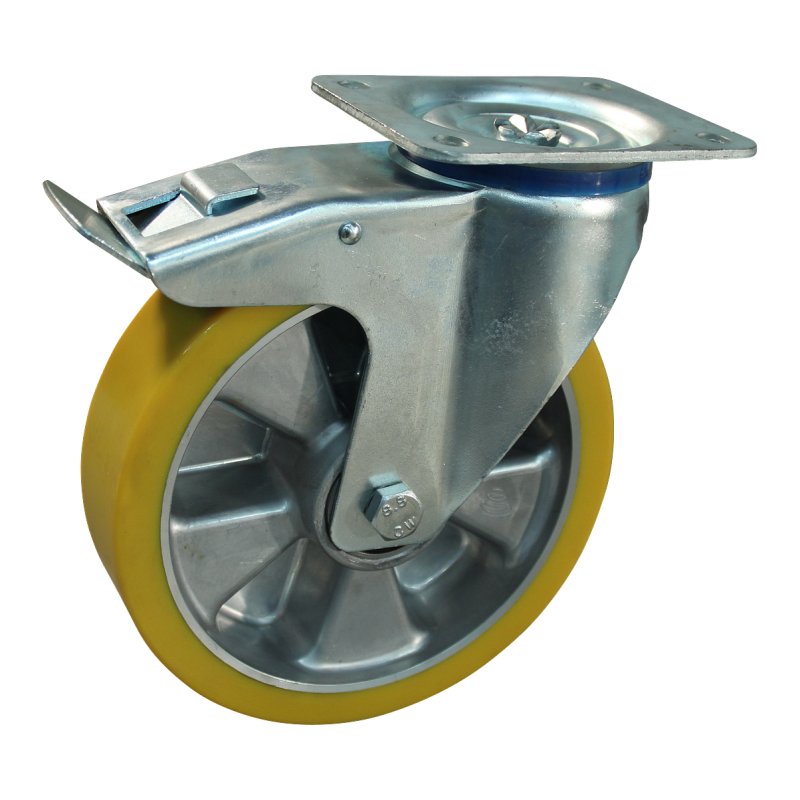

swivel castor with brake 200mm series 29 ᠆ 15 plate mounting ball bearing

Reference : 229.206.156.552

Brand Novio Application Transportwheels Industry Agriculture and horticulture Wheel type swivel castor Wheel diameter 200 mm Fork mounting plate mounting Bearing type ball bearing Brake type double brake overrun Tread material CPU Overall height 235 mm Maximum load capacity 400 kg width 50 mm rim aluminium ADC12 (A383) rim colour not painted diameter axle bore 20 mm diameter axle bore fork 12,2 mm hub length mm 60 mm hub-to-fork length 62 +1,5/-0 mm offset 55 +/-0,5 mm colour support/housing zi…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Agriculture et horticulture
Application	Roue de transport
width	50 mm
Wheel type	roulette pivotante
Bearing type	roulement à billes
Maximum load capacity	400 kg
Wheel diameter	200 mm
offset	55 +/-0,5 mm
Tread material	CPU
rim	aluminium ADC12 (A383)
Overall height	235 mm
hub length mm	60 mm
Fork mounting	fixation platine
rim colour	brut
material fork	métal
Brake type	frein double arrière
dimension fixing	135x110 / 105x75/80 / Ø11 mm
diameter axle bore fork	12,2 mm
hub-to-fork length	62 +1,5/-0 mm
tire	CPU
tire colour	jaune miel RAL 1005
tolerance hardness	+/-2
hardness Shore A	94 Shore A
diameter axle bore	20 mm
colour support/housing	zingué
