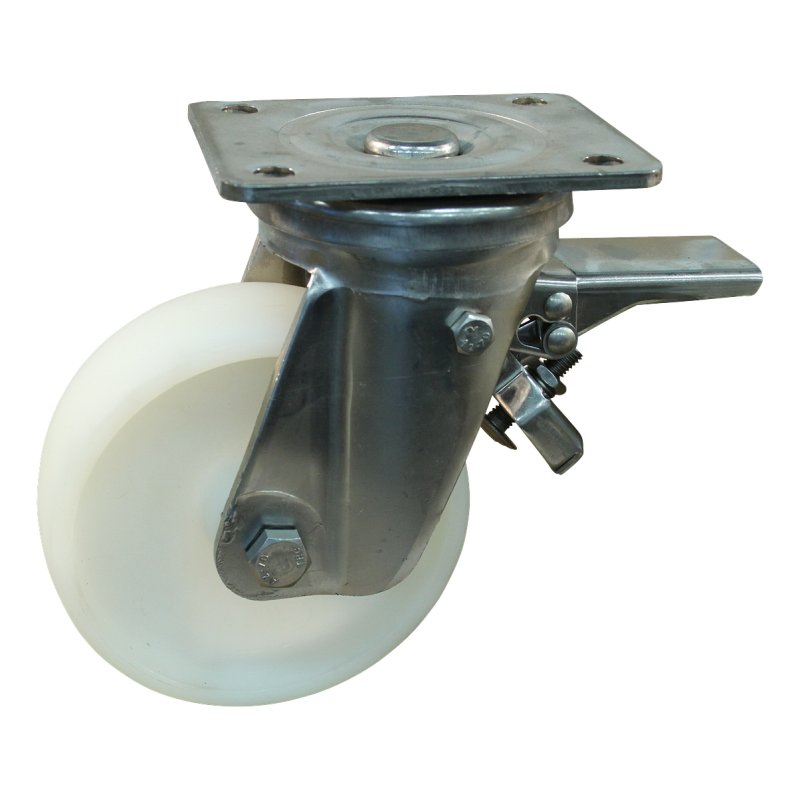

swivel castor with brake 200mm serie 33 ᠆ 36 plate mounting plain bore

Reference : 233.201.366.350

Brand Novio Application Transportwheels Industry Food industry and industrial kitchens Industry and internal logistics Wheel type swivel castor Wheel diameter 200 mm Fork mounting plate mounting Bearing type plain bearing Brake type double brake front Tread material plastic Overall height 250 mm Maximum load capacity 1250 kg width 50 mm rim PA rim colour natural diameter axle bore 20 mm diameter axle bore fork 12 mm hub length mm 60 mm hub-to-fork length 62 mm offset 58 mm material fork SS AISI…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie alimentaire et restauration collective Industrie et logistique interne
Application	Roue de transport
width	50 mm
Wheel type	roulette pivotante
Bearing type	palier lisse
Maximum load capacity	1 250 kg
Wheel diameter	200 mm
offset	58 mm
Tread material	plastique
rim	PA
Overall height	250 mm
hub length mm	60 mm
Fork mounting	fixation platine
rim colour	naturel
material fork	inox 304
Brake type	frein double avant
dimension fixing	140x110 / 105x80 / Ø12 mm
diameter axle bore fork	12 mm
hub-to-fork length	62 mm
diameter axle bore	20 mm
