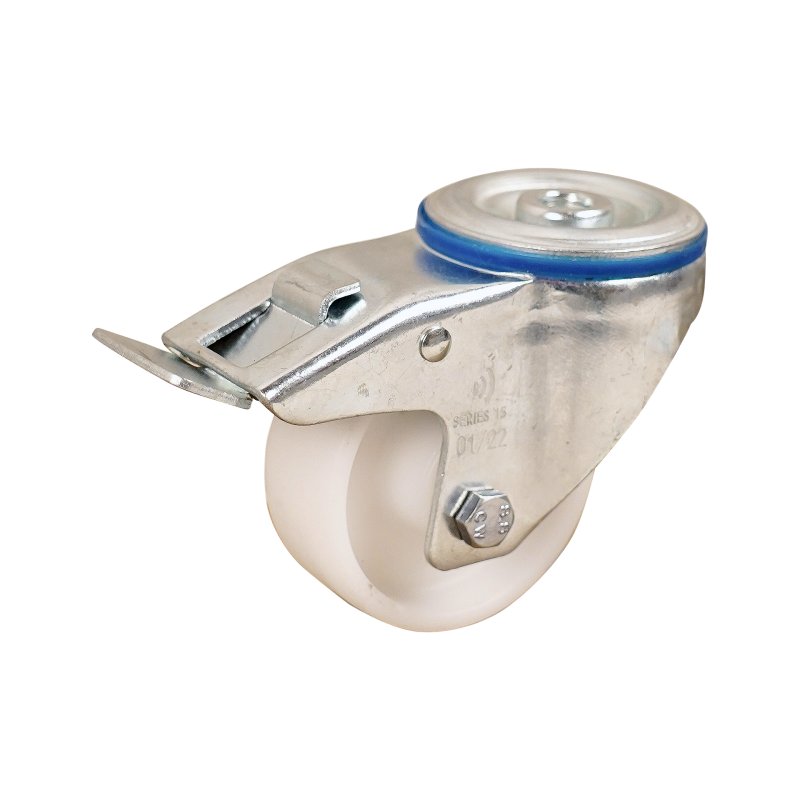

swivel castor with brake 200mm serie 34 ᠆ 15 bolt hole plain bore

Reference : 234.201.150.550

Brand Novio Application Transportwheels Industry Food industry and industrial kitchens Industry and internal logistics Wheel type swivel castor Wheel diameter 200 mm Fork mounting bolt hole Bearing type plain bearing Brake type double brake overrun Tread material plastic Overall height 230 mm Maximum load capacity 200 kg width 50 mm rim PA rim colour natural diameter axle bore 20,2 mm diameter axle bore fork 12,2 mm hub length mm 60 mm hub-to-fork length 62 +2,0 mm offset 55 +/-0,5 mm colour su…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie alimentaire et restauration collective Industrie et logistique interne
Application	Roue de transport
width	50 mm
Wheel type	roulette pivotante
Bearing type	palier lisse
Maximum load capacity	200 kg
Wheel diameter	200 mm
offset	55 +/-0,5 mm
Tread material	plastique
rim	PA
Overall height	230 mm
hub length mm	60 mm
Fork mounting	trou de boulon
rim colour	naturel
material fork	métal
Brake type	frein double arrière
dimension fixing	12,5 mm
diameter axle bore fork	12,2 mm
hub-to-fork length	62 +2,0 mm
diameter axle bore	20,2 mm
colour support/housing	zingué
