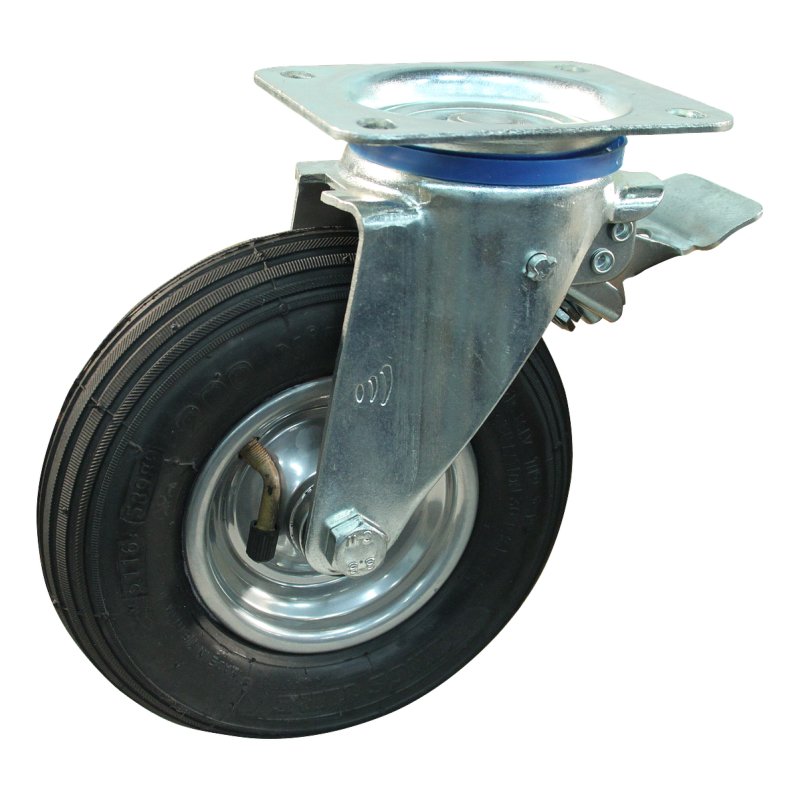

swivel castor with brake 200x50 1.25x3.8 (200x50) ET0 NL60mm steel V-5501 silver grey 200mm 12 plaatbevestiging met uitsparing
KINGS TIRE
Reference : 246.202.127.301
Brand KINGS TIRE Application Swivel and fixed castors with pneumatic tyres Industry Industry and internal logistics series series 46 tyre size 200x50 width 44 mm wheel size 1.25x3.8 (200x50) diameter 190 200 mm offset 55 +/-1,0 mm nominal width 200 mm separator x hub length NL60 mm wheel material steel profile V-5501 PR 4PR tyre type TT inch size 3.8 inch wheel width 1.25 inch 1/2/3-piece 1-piece pressure (bar) 2,7 wheel colour silver grey RAL colour white aluminum RAL 9006 surface treatment po…
On order Supply lead time : environ 8 semaines
📩 Notify me when this product is available again
A single email, when it is back in stock. No spam.
Specifications
| Industry | Industrie et logistique interne |
| series | série 46 |
| Application | Les roues pivotantes et fixes avec pneumatiques |
| width | 44 mm |
| Wheel type | roulette pivotante |
| Bearing type | roulement à rouleaux |
| Maximum load capacity | 75 kg |
| Wheel diameter | 200 mm |
| offset | 55 +/-1,0 mm |
| Overall height | 236 mm |
| Fork mounting | fixation sur platine avec encoche pour blocage directionnel |
| material fork | métal |
| Brake type | frein double avant |
| dimension fixing | 135x110 / 105x75/80 / Ø11 mm |
| hub-to-fork length | 63 +4,0/-0,0 mm |
| colour support/housing | zingué |
| inch size | 3.8 pouce |
| tyre size | 200x50 |
| profile | V-5501 |
| tyre type | TT |
| pressure (bar) | 2,7 |
| nominal width | 200 mm |
| wheel colour | gris argent |
| wheel material | métal |
| RAL colour | aluminium blanc RAL 9006 |
| wheel size | 1.25x3.8 (200x50) |
| separator | x |
| 1/2/3-piece | 1-pièce |
| PR | 4PR |
| bore diameter | Ø20 mm |
| surface treatment | peinture en poudre |
| wheel width | 1.25 pouce |
| hub length | NL60 mm |
| valve | DIN7768 60/20 |
| nominal height | 50 |
Description
swivel castor with brake 200x50 1.25x3.8 (200x50) ET0 NL60mm steel V-5501 silver grey 200mm 12 plaatbevestiging met uitsparing
- Brand
- KINGS TIRE
- Application
- Swivel and fixed castors with pneumatic tyres
- Industry
- Industry and internal logistics
- series
- series 46
- tyre size
- 200x50
- width
- 44 mm
- wheel size
- 1.25x3.8 (200x50)
- diameter
- 190 200 mm
- offset
- 55 +/-1,0 mm
- nominal width
- 200 mm
- separator
- x
- hub length
- NL60 mm
- wheel material
- steel
- profile
- V-5501
- PR
- 4PR
- tyre type
- TT
- inch size
- 3.8 inch
- wheel width
- 1.25 inch
- 1/2/3-piece
- 1-piece
- pressure (bar)
- 2,7
- wheel colour
- silver grey
- RAL colour
- white aluminum RAL 9006
- surface treatment
- powder coating
- Wheel type
- swivel castor
- Wheel diameter
- 200 mm
- nominal height
- 50
- Fork mounting
- plate mounting with recess for directional lock
- Bearing type
- roller bearing
- Brake type
- double brake front
- Overall height
- 236 mm
- Maximum load capacity
- 75 kg
- diameter axle bore fork
- 12,2 +/-1,0 mm
- hub-to-fork length
- 63 +4,0/-0,0 mm
- colour support/housing
- zinc plated
- material fork
- steel
- dimension fixing
- 135x110 / 105x75/80 / Ø11 mm
- valve
- DIN7768 60/20
- bore diameter
- Ø20 mm
