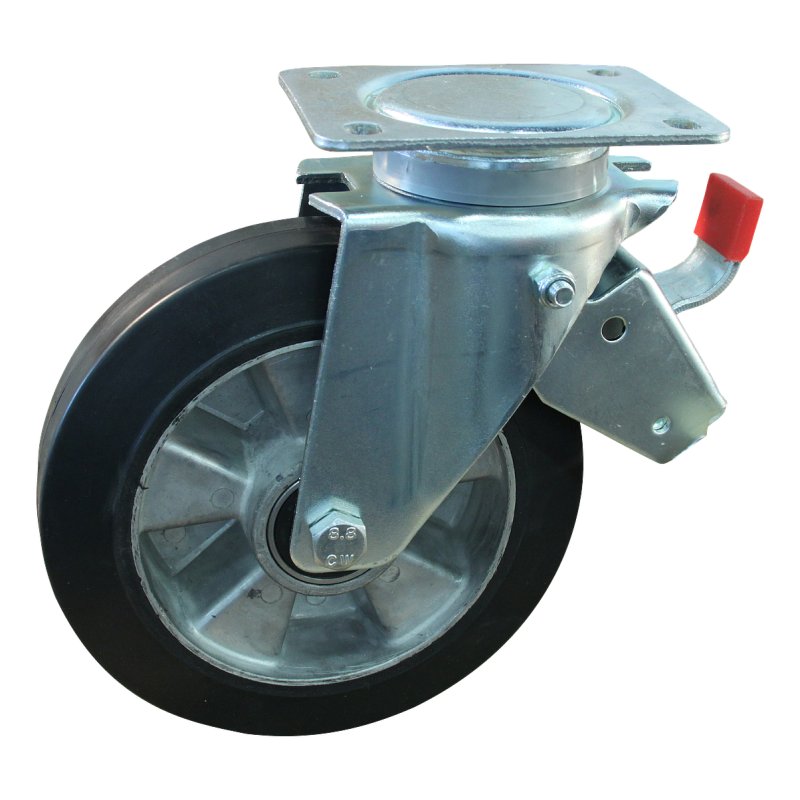

swivel castor with brake 250mm series 10 ᠆ 14 plaatbevestiging met uitsparing richtingvastzetter ball bearing

Reference : 210.256.147.650

Brand Novio Application Transportwheels Industry Industry and internal logistics product directional fixer intermediate plate Wheel type swivel castor Wheel diameter 250 mm Fork mounting plate mounting with recess for directional lock Bearing type ball bearing Tread material rubber / TPE Overall height 295 mm Maximum load capacity 625 kg width 50 mm rim aluminium ADC12 (A383) diameter axle bore 20 mm diameter axle bore fork 12,5 mm hub length mm 60 mm hub-to-fork length 67 +3/-0 mm offset 66 mm…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie et logistique interne
Application	Roue de transport
width	50 mm
Wheel type	roulette pivotante
Bearing type	roulement à billes
Maximum load capacity	625 kg
Wheel diameter	250 mm
offset	66 mm
Tread material	caoutchouc / TPE
rim	aluminium ADC12 (A383)
Overall height	295 mm
hub length mm	60 mm
Fork mounting	fixation sur platine avec encoche pour blocage directionnel
material fork	métal

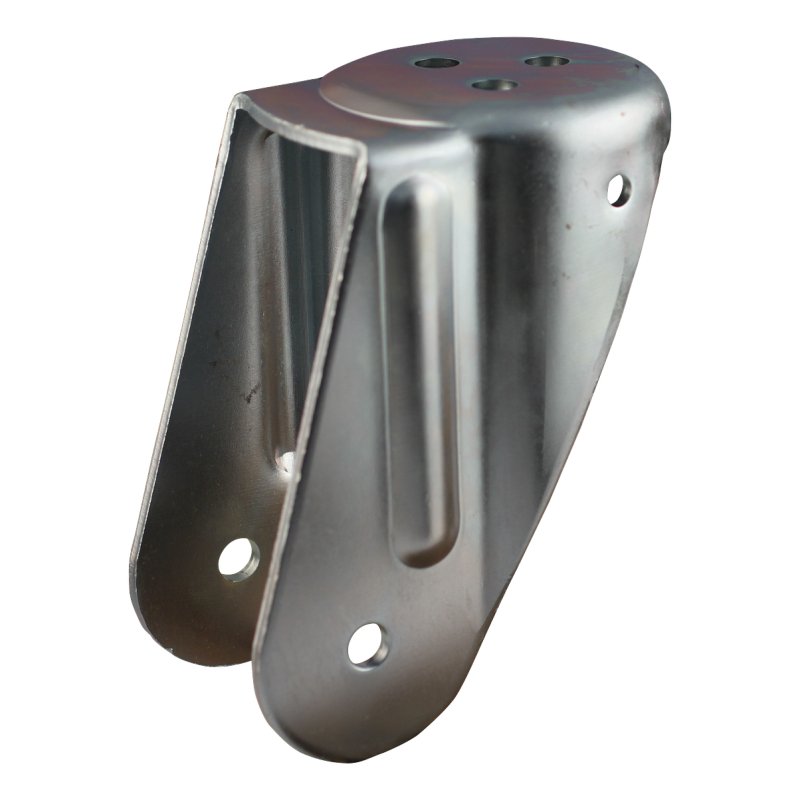

product	plaque intermédiaire de fixation directionnelle
diameter axle bore fork	12,5 mm
hub-to-fork length	67 +3/-0 mm
tire	caoutchouc souple
tire colour	noir foncé RAL 9005
tolerance hardness	+/-4
hardness Shore A	68 Shore A
diameter axle bore	20 mm
colour support/housing	zingué
fixing	plaat 135x105x4,0 / 105x75/80 / 10x13,5
