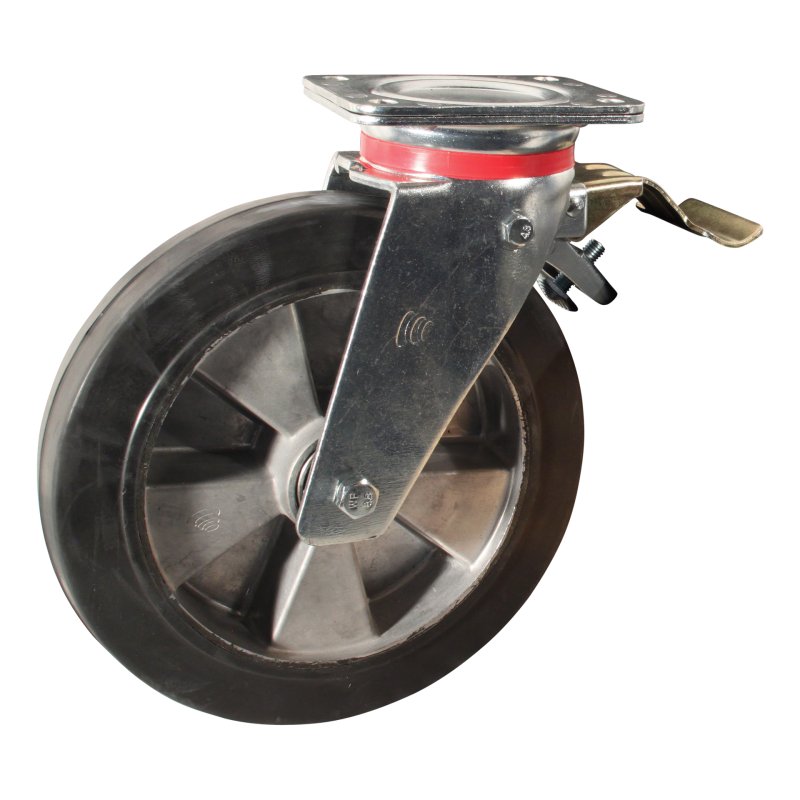

swivel castor with brake 250mm series 10 ᠆ 17 plate mounting ball bearing

Reference : 210.256.176.350

Brand Novio Application Transportwheels Industry Industry and internal logistics Wheel type swivel castor Wheel diameter 250 mm Fork mounting plate mounting Bearing type ball bearing Brake type no brake Tread material rubber / TPE Overall height 297 mm Maximum load capacity 625 kg width 50 mm rim aluminium ADC12 (A383) diameter axle bore 20 mm diameter axle bore fork 12,5 mm hub length mm 60 mm hub-to-fork length 77 +1,5/-0,0 mm offset 61 +/-0,05 mm colour support/housing zinc plated material f…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie et logistique interne
Application	Roue de transport
width	50 mm
Wheel type	roulette pivotante
Bearing type	roulement à billes
Maximum load capacity	625 kg
Wheel diameter	250 mm
offset	61 +/-0,05 mm
Tread material	caoutchouc / TPE
rim	aluminium ADC12 (A383)
Overall height	297 mm
hub length mm	60 mm
Fork mounting	fixation platine
material fork	métal
Brake type	sans frein
dimension fixing	135x110 / 105x75/80 / Ø11 mm
diameter axle bore fork	12,5 mm
hub-to-fork length	77 +1,5/-0,0 mm
tire	caoutchouc souple
tire colour	noir foncé RAL 9005
tolerance hardness	+/-4
hardness Shore A	68 Shore A
diameter axle bore	20 mm
colour support/housing	zingué
