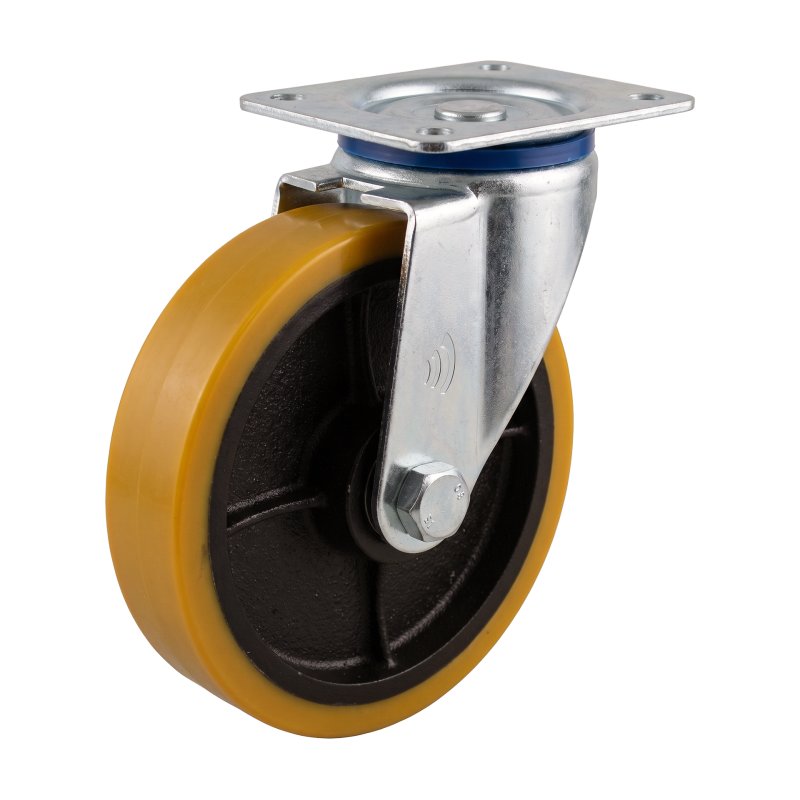

swivel castor with brake 250mm series 28 ᠆ 12 plate mounting ball bearing

Reference : 228.256.127.050

Brand Novio Application Transportwheels Wheel type swivel castor Wheel diameter 250 mm Fork mounting plate mounting Bearing type ball bearing Brake type no brake Tread material CPU Overall height 297.4 mm Maximum load capacity 500 kg width 50 mm rim cast iron rim colour jet black RAL 9005 diameter axle bore 25 mm diameter axle bore fork 12,2 +/-1,0 mm hub length mm 60 mm hub-to-fork length 62 +4,0/-0,0 mm offset 58 +/-1,0 mm colour support/housing zinc plated material fork steel dimension fixin…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Application	Roue de transport
width	50 mm
Wheel type	roulette pivotante
Bearing type	roulement à billes
Maximum load capacity	500 kg
Wheel diameter	250 mm
offset	58 +/-1,0 mm
Tread material	CPU
rim	fonte
Overall height	297,4 mm
hub length mm	60 mm
Fork mounting	fixation platine
rim colour	noir foncé RAL 9005
material fork	métal
Brake type	sans frein
dimension fixing	135x110 / 105x75/80 / Ø11x17,5 mm
hub-to-fork length	62 +4,0/-0,0 mm
tire	CPU
tire colour	jaune miel RAL 1005
tolerance hardness	+/-2
hardness Shore A	94 Shore A
diameter axle bore	25 mm
colour support/housing	zingué
