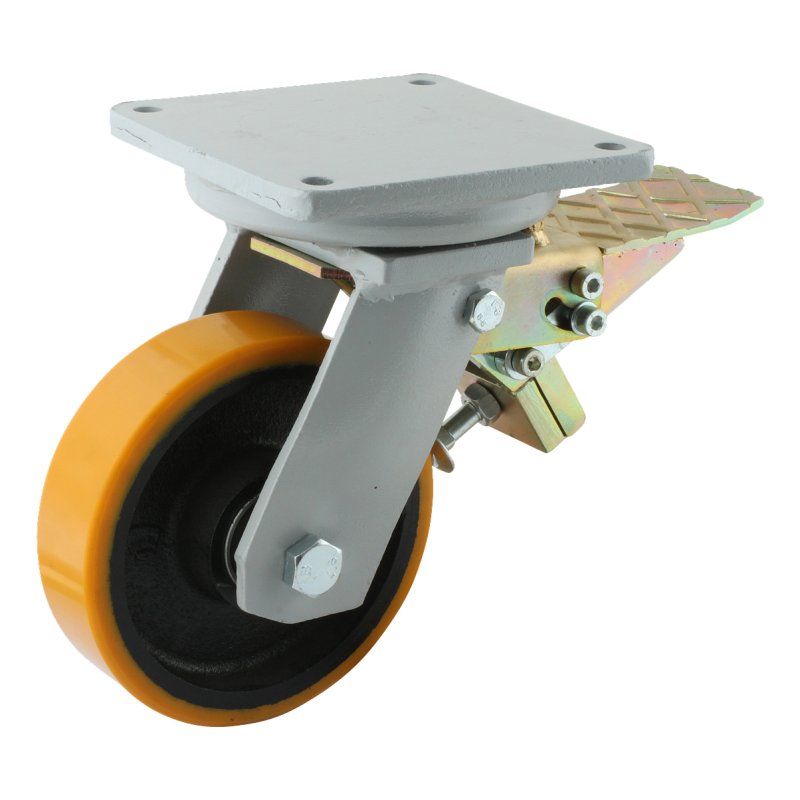

swivel castor with brake 250mm series 28 ᠆ 20 plate mounting ball bearing

Reference : 228.256.206.680

Brand Novio Application Heavy duty wheels Transportwheels Industry Agriculture and horticulture Industry and internal logistics Wheel type swivel castor Wheel diameter 250 mm Fork mounting plate mounting Bearing type ball bearing Brake type double brake front Tread material CPU Overall height 336 mm Maximum load capacity 2000 kg width 80 mm rim cast iron rim colour jet black RAL 9005 diameter axle bore 30 mm hub length mm 80 mm hub-to-fork length 92 mm colour support/housing silver grey RAL 700…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Agriculture et horticulture Industrie et logistique interne
Application	Roulettes fortes charges Roue de transport
width	80 mm
Wheel type	roulette pivotante
Bearing type	roulement à billes
Maximum load capacity	2 000 kg
Wheel diameter	250 mm
Tread material	CPU
rim	fonte
Overall height	336 mm
hub length mm	80 mm
Fork mounting	fixation platine
rim colour	noir foncé RAL 9005
material fork	métal
Brake type	frein double avant
dimension fixing	180x180 / 145x145 / Ø17 mm
hub-to-fork length	92 mm
tire	CPU
tire colour	jaune miel RAL 1005
tolerance hardness	+/-2
hardness Shore A	94 Shore A
diameter axle bore	30 mm
colour support/housing	gris argent RAL 7001
