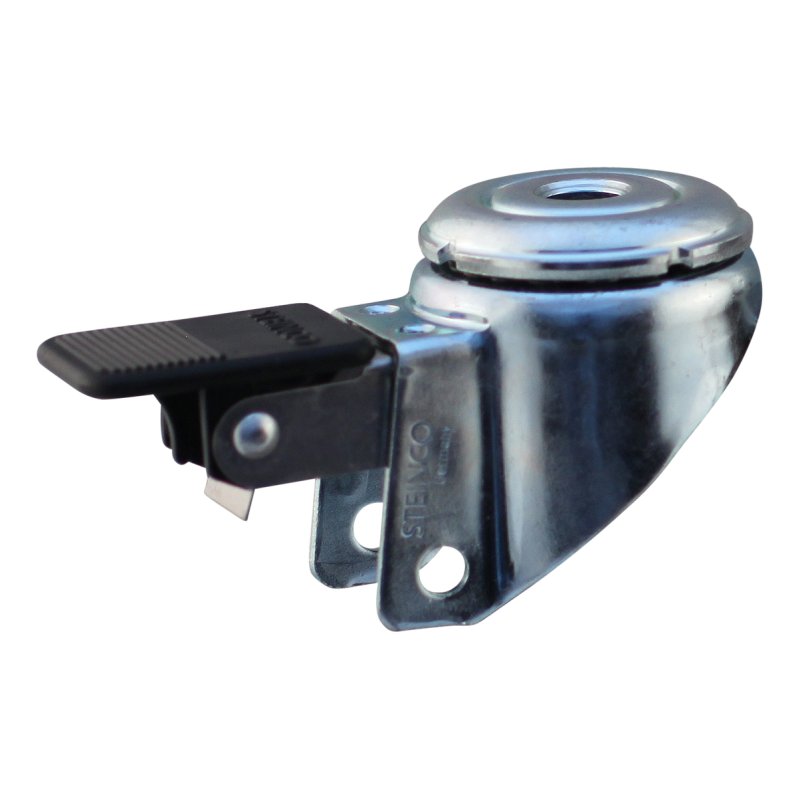

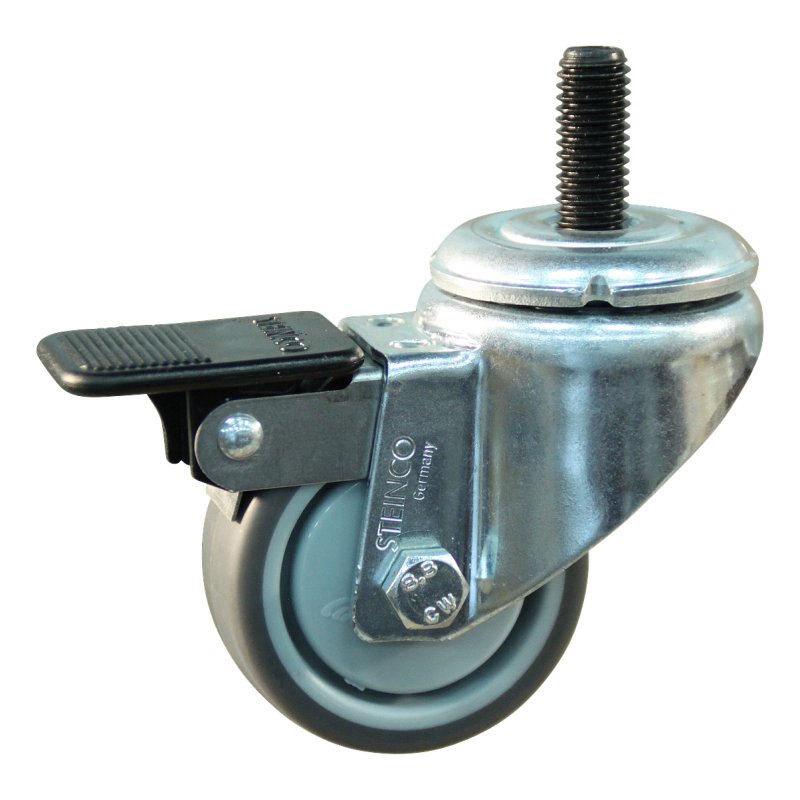

swivel castor with brake 50mm serie 68 ᠆ 40 draadstift M10 ball bearing

Reference : 468.506.404.335

Brand Novio Application Equipment wheels Medical equipment Industry Healthcare dimension M10x35 mm Wheel type swivel castor Wheel diameter 50 mm Fork mounting threaded pin M10 Bearing type ball bearing Brake type single brake Tread material rubber / TPE Overall height 70 mm Maximum load capacity 40 kg width 20 mm rim PP rim colour silver grey RAL 7001 diameter axle bore 6.3 mm hub length mm 23 mm offset 26 mm material fork zinc plated dimension fixing ∅ 10,25 mm tire TPE tire colour slate grey …

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Soins de santé
Application	Roue d'appareil Appareils médicaux
width	20 mm
Wheel type	roulette pivotante
Bearing type	roulement à billes
Maximum load capacity	40 kg
Wheel diameter	50 mm
offset	26 mm
Tread material	caoutchouc / TPE
rim	PP
Overall height	70 mm
hub length mm	23 mm
Fork mounting	tige filetée M10
rim colour	gris argent RAL 7001
material fork	zingué
Brake type	frein simple
dimension fixing	∅ 10,25 mm
tire	TPE
tire colour	gris ardoise RAL 7015
tolerance hardness	+/-5
hardness Shore A	70 Shore A
diameter axle bore	6,3 mm
dimension	M10x35 mm
fixing	trou pour boulon
brake	frein de roue
