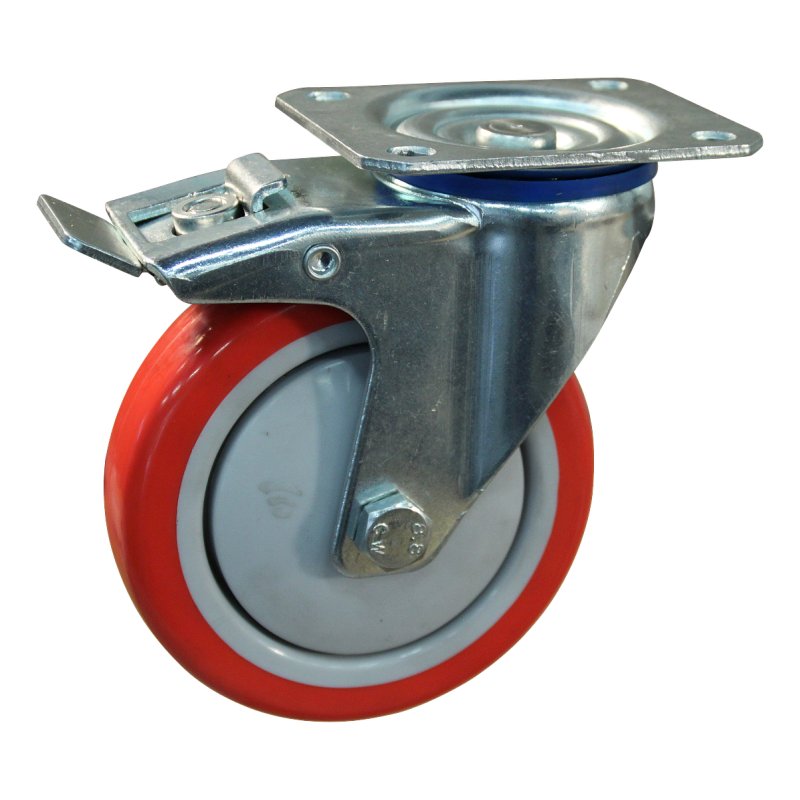

swivel castor with brake 75mm serie 21 ᠆ 15 plate mounting ball bearing

Reference : 221.076.156.532

Brand Novio Application Transportwheels Wheel type swivel castor Wheel diameter 75 mm Fork mounting plate mounting Bearing type ball bearing Brake type double brake overrun Tread material PU / TPU Overall height 105.5 mm Maximum load capacity 100 kg width 32 mm rim PP rim colour silver grey RAL 7001 diameter axle bore 8 mm diameter axle bore fork 8,2 mm hub length mm 40 mm hub-to-fork length 42 +2,0 mm offset 38 +/-0,5 mm colour support/housing zinc plated material fork steel dimension fixing 1…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Application	Roue de transport
width	32 mm
Wheel type	roulette pivotante
Bearing type	roulement à billes
Maximum load capacity	100 kg
Wheel diameter	75 mm
offset	38 +/-0,5 mm
Tread material	PU / TPU
rim	PP
Overall height	105,5 mm
hub length mm	40 mm
Fork mounting	fixation platine
rim colour	gris argent RAL 7001
material fork	métal
Brake type	frein double arrière
dimension fixing	100x85 / 77/80x55/60 / Ø9 mm
diameter axle bore fork	8,2 mm
hub-to-fork length	42 +2,0 mm
tire	TPU
tire colour	rouge signalisation RAL 3020
tolerance hardness	+/-3
hardness Shore A	92 Shore A
diameter axle bore	8 mm
colour support/housing	zingué
