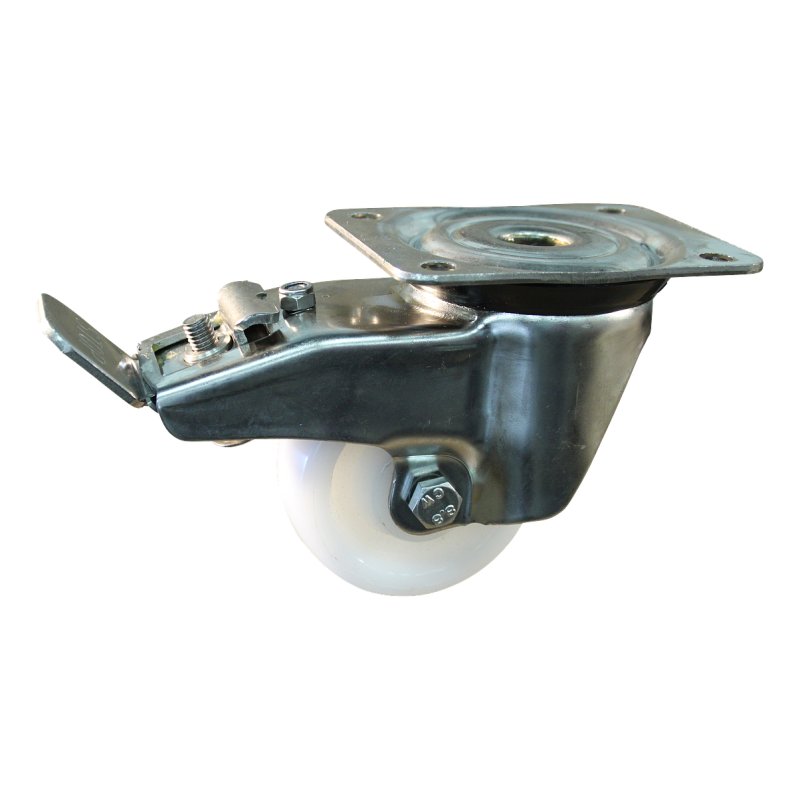

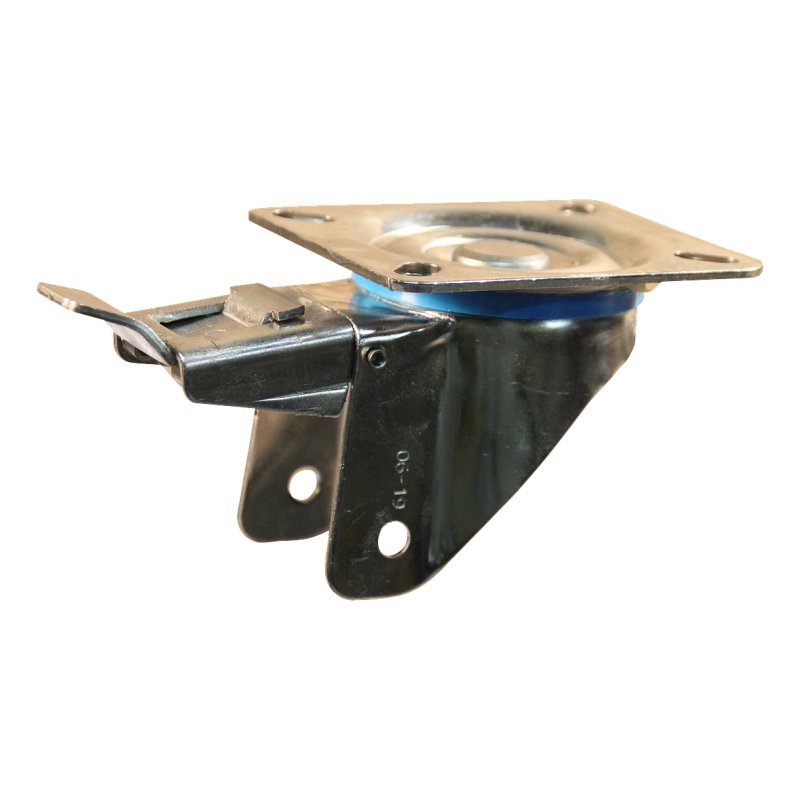

swivel castor with brake 75mm serie 33 ᠆ 31 plate mounting plain bore

Reference : 233.071.316.535

Brand Novio Application Transportwheels Industry Agriculture and horticulture Industry and internal logistics Wheel type swivel castor Wheel diameter 75 mm Fork mounting plate mounting Bearing type plain bearing Brake type double brake overrun Tread material plastic Overall height 105.5 mm Maximum load capacity 120 kg width 35 mm rim PA rim colour natural diameter axle bore 10,2 mm diameter axle bore fork 8 mm hub length mm 44 mm hub-to-fork length 41 mm offset 38 mm material fork SS AISI 304 d…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Agriculture et horticulture Industrie et logistique interne
Application	Roue de transport
width	35 mm
Wheel type	roulette pivotante
Bearing type	palier lisse
Maximum load capacity	120 kg
Wheel diameter	75 mm
offset	38 mm
Tread material	plastique
rim	PA
Overall height	105,5 mm
hub length mm	44 mm
Fork mounting	fixation platine
rim colour	naturel
material fork	inox 304
Brake type	frein double arrière
dimension fixing	100x80 / 80x60 / Ø9x12 mm
diameter axle bore fork	8 mm
hub-to-fork length	41 mm
diameter axle bore	10,2 mm
