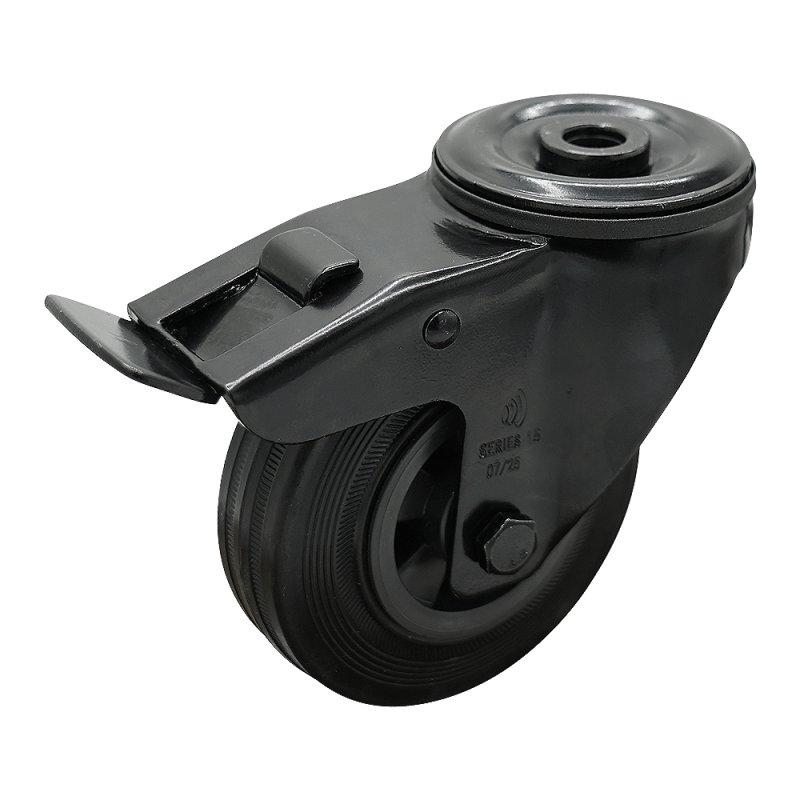

swivel castor with brake 80mm Novio Black series 01 ᠆ 15 bolt hole roller bearing

Reference : 201.082.150.503

Brand Novio Application Transportwheels Wheel type swivel castor Wheel diameter 80 mm Novio Black Novio Black Fork mounting bolt hole Bearing type roller bearing Brake type double brake overrun Tread material rubber / TPE Overall height 106 mm Maximum load capacity 50 kg width 25 mm rim PP rim colour jet black RAL 9005 diameter axle bore 12 mm diameter axle bore fork 8,2 mm hub length mm 42 mm hub-to-fork length 42 +2,0 mm offset 38 +/-0,5 mm colour support/housing jet black RAL 9005 material f…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Application	Roue de transport
width	25 mm
Wheel type	roulette pivotante
Bearing type	roulement à rouleaux
Maximum load capacity	50 kg
Wheel diameter	80 mm
offset	38 +/-0,5 mm
Tread material	caoutchouc / TPE
rim	PP
Overall height	106 mm
hub length mm	42 mm
Fork mounting	trou de boulon
rim colour	noir foncé RAL 9005
material fork	métal
Brake type	frein double arrière
dimension fixing	12,5 mm
diameter axle bore fork	8,2 mm
hub-to-fork length	42 +2,0 mm
tire	caoutchouc standard
tire colour	noir
tolerance hardness	+/-3
hardness Shore A	80 Shore A
diameter axle bore	12 mm
colour support/housing	noir foncé RAL 9005
Novio Black	Novio Noir
