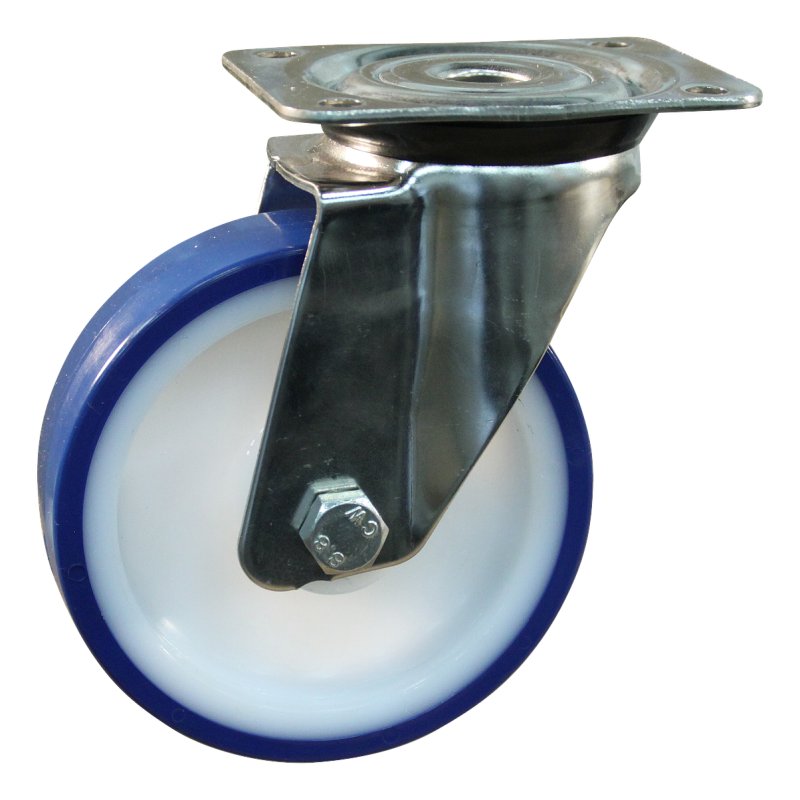

series 27 ᠆ 31

Reference : 227.128.316.001

Brand Novio Application Transportwheels Industry Food industry and industrial kitchens Industry and internal logistics Wheel type swivel castor Wheel diameter 125 mm Brake type no brake Tread material PU / TPU width 36 mm rim PA rim colour natural diameter axle bore fork 10 mm hub length mm 50 mm hub-to-fork length 52 mm offset 44 mm material fork SS AISI 304 dimension fixing 100x80 / 80x60 / Ø9x13 mm tire TPU tire colour sapphire blue RAL 5003 hardness Shore A 97 Shore A tolerance hardness +/-…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie alimentaire et restauration collective Industrie et logistique interne
Application	Roue de transport
width	36 mm
Wheel type	roulette pivotante
Wheel diameter	125 mm
offset	44 mm

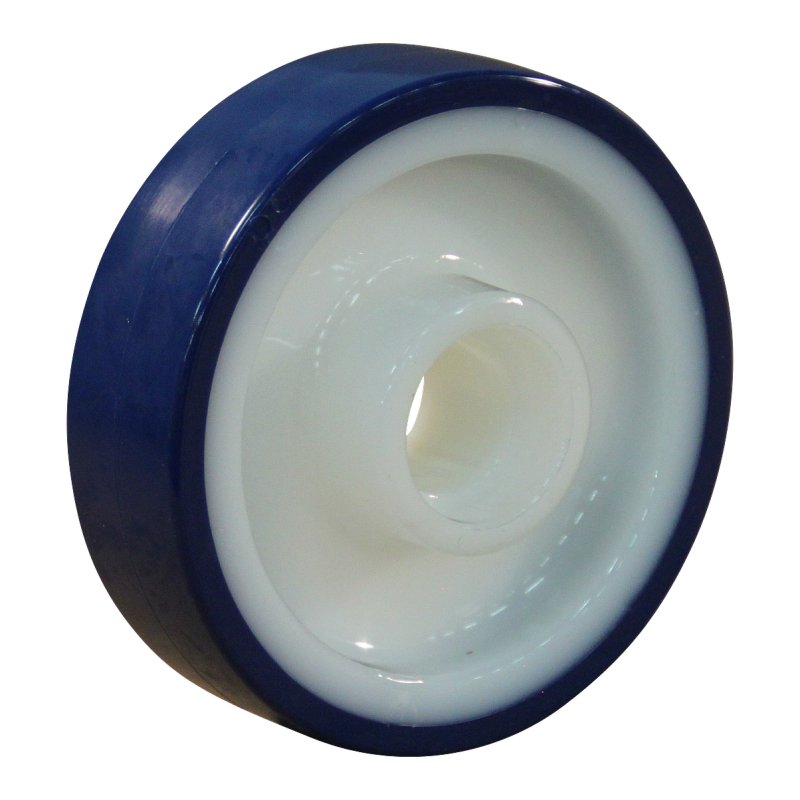

Tread material	PU / TPU
rim	PA
hub length mm	50 mm
rim colour	naturel

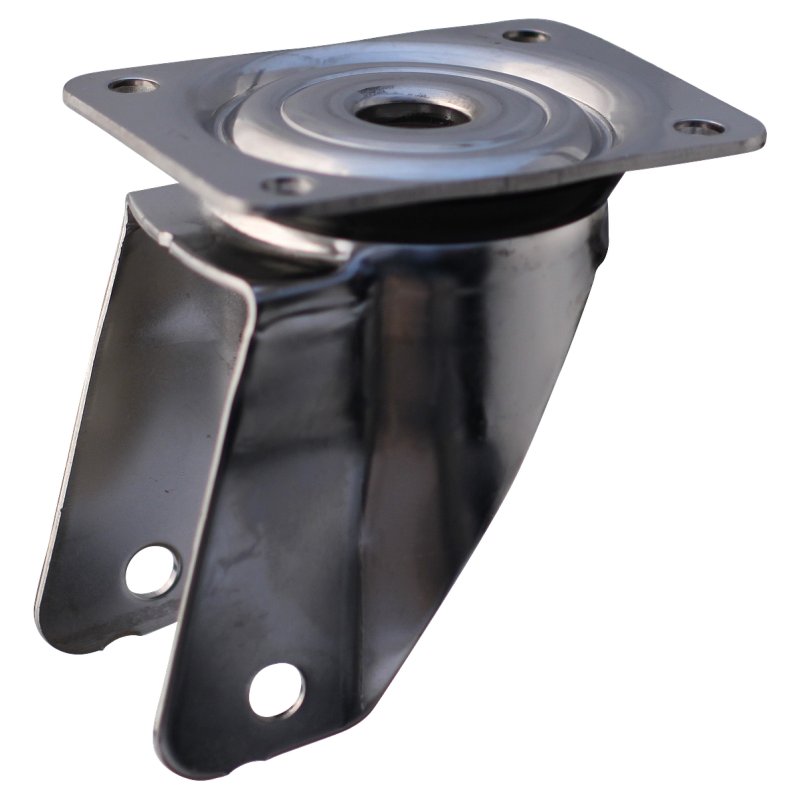

material fork	inox 304
Brake type	sans frein
dimension fixing	100x80 / 80x60 / Ø9x13 mm
diameter axle bore fork	10 mm
hub-to-fork length	52 mm
tire	TPU
tire colour	bleu saphir RAL 5003
tolerance hardness	+/-3
hardness Shore A	97 Shore A

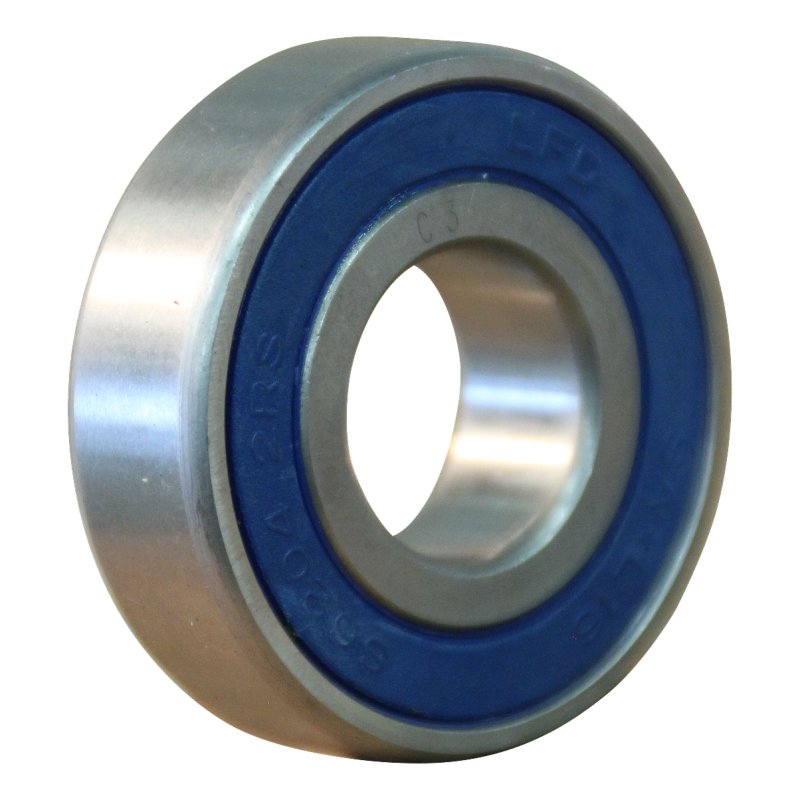

outside diameter	Ø35 mm
bore diameter	Ø15 mm
bearing width	11 mm
maximum load capacity kg (set)	230 kg
