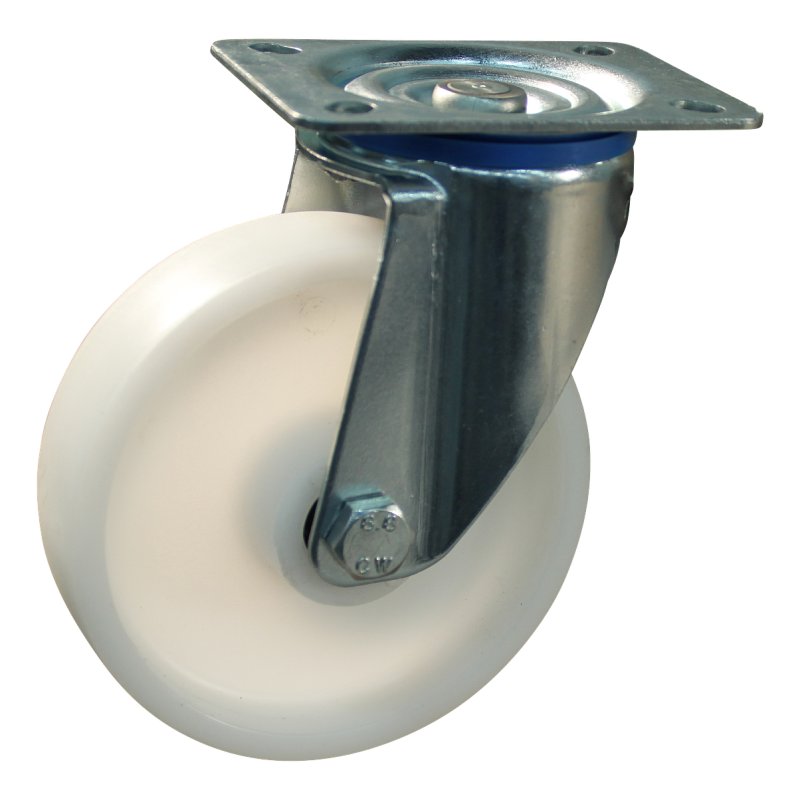

serie 34 ᠆ 12 roller bearing

Reference : 234.122.126.050

Brand Novio Application Transportwheels Industry Food industry and industrial kitchens Industry and internal logistics Wheel type swivel castor Wheel diameter 125 mm Bearing type roller bearing Brake type no brake Tread material plastic Overall height 165.5 mm Maximum load capacity 200 kg width 35 34 mm rim PP rim colour natural diameter axle bore 23 mm diameter axle bore fork 10,2 +0,1/-0,0 mm hub length mm 48 mm hub-to-fork length 52 +/-0,5 mm offset 45,5 +/-0,5 mm colour support/housing zinc…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Industrie alimentaire et restauration collective Industrie et logistique interne
Application	Roue de transport
Wheel type	roulette pivotante
Bearing type	roulement à rouleaux
Maximum load capacity	200 kg
Wheel diameter	125 mm
offset	45,5 +/-0,5 mm
Tread material	plastique
rim	PP
Overall height	165,5 mm
hub length mm	48 mm
rim colour	naturel
material fork	métal
Brake type	sans frein
dimension fixing	135x110 / 105x76/84 / Ø11 mm
hub-to-fork length	52 +/-0,5 mm
diameter axle bore	23 mm
colour support/housing	zingué
maximum load capacity kg (set)	200 kg
