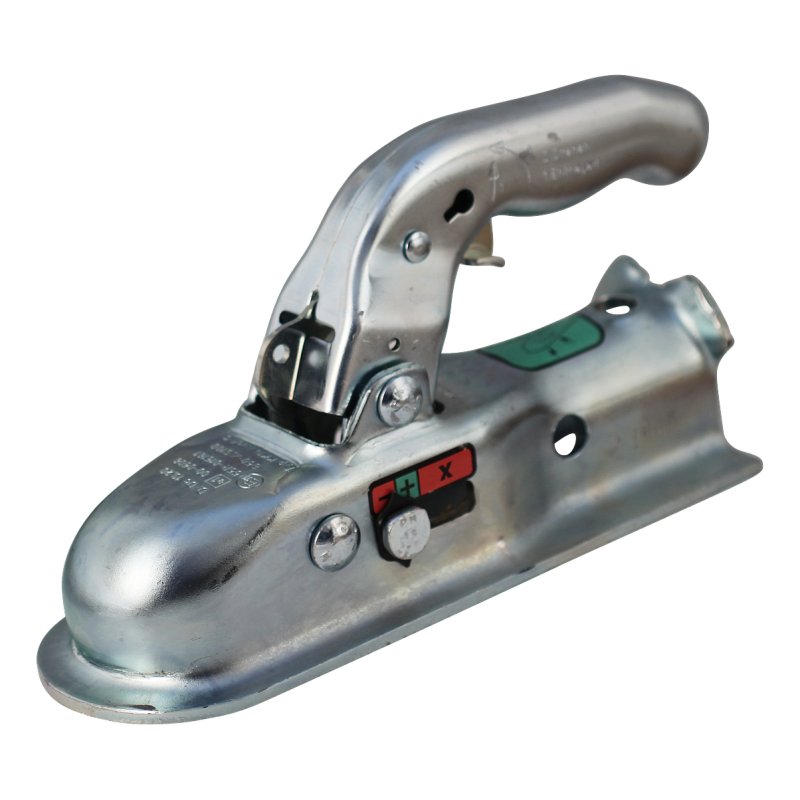

ball coupling KK14-C Ø36mm Ø36

Reference : 886.136.140.001

Brand KNOTT Application Boat trailer Horse trailer Trailer Industry Trailer type ball coupling type of ball coupling KK14-C dimension drawbar Ø36 mm motorcycle support Ø36 max allowable range 1400kg ECE R55 E1*55R02/01*3170*00 EG 94/20 e1*94/20*0508*06 D/dc value ECE 13,2kN D/dc value in kN 13,2kN hole pattern 1xhorizontal + 1xvertikal mounting hole(s) horizontally 12,5 mm mounting hole(s) vertically 12,5 mm supporting load (S) ECE 100 supporting load (S) 100 kg material sheet metal surface tre…

On order Supply lead time : environ 8 semaines

📩 Notify me when this product is available again

Notify me

A single email, when it is back in stock. No spam.

Quantity

🛒 Add to cart

Specifications

Industry	Remorque
type	têtes d'attelage
material	fer
Application	Remorque à bateau Remorque à chevaux Remorque
surface treatment	zingué

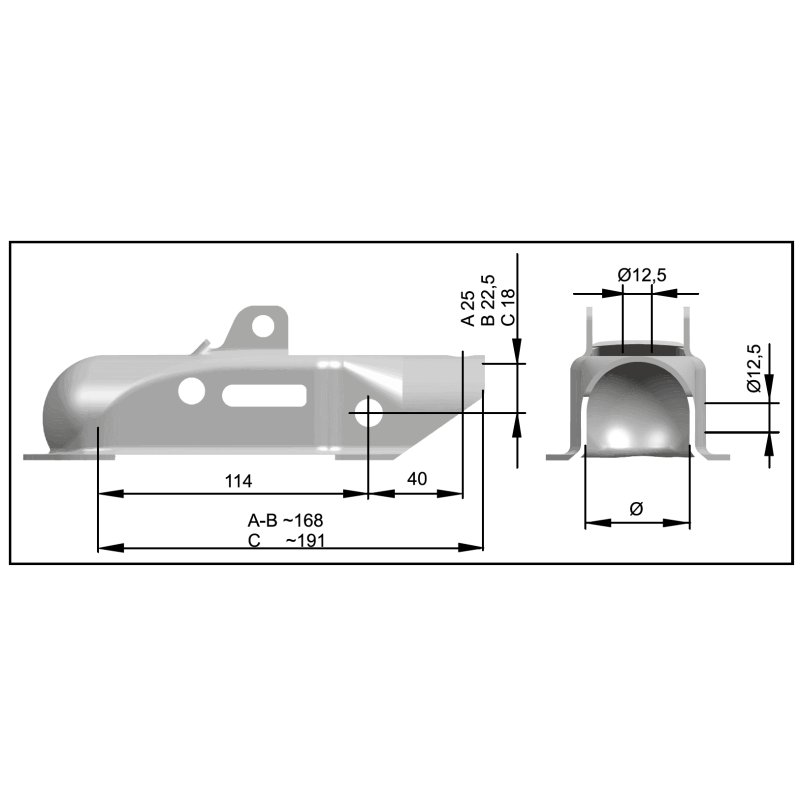

hole pattern	1xhorizontal + 1xvertical
max allowable range	1 400 kg
supporting load (S) ECE	100
type of ball coupling	KK14-C
dimension drawbar	Ø36 mm
mounting hole(s) vertically	12,5 mm
supporting load (S)	100 kg
D/dc value in kN	13,2kN
mounting hole(s) horizontally	12,5 mm
D/dc value ECE	13,2kN
EG 94/20	e1*94/20*0508*06
ECE R55	E1*55R02/01*3170*00
motorcycle support	Ø36
